Amplifiers
Audiophile Series

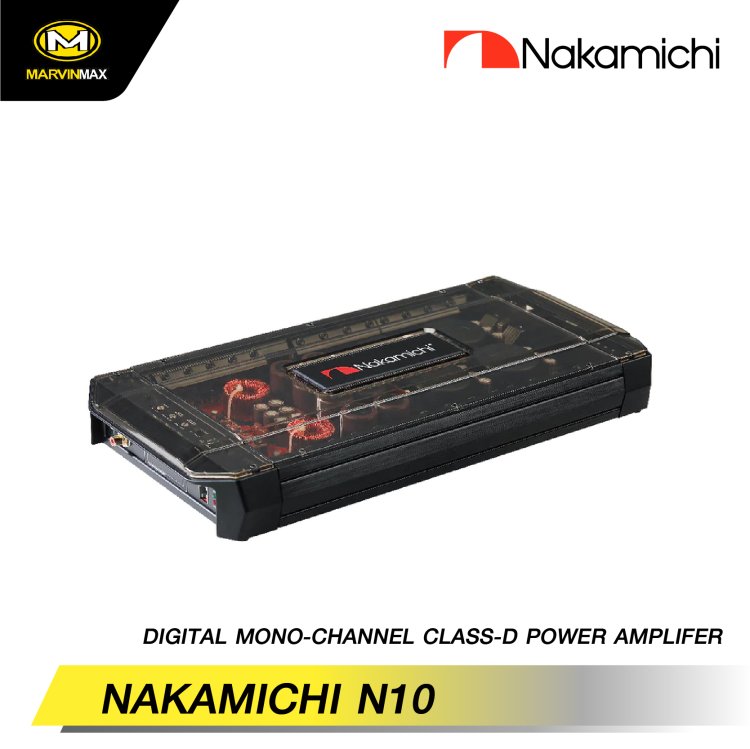

NAKAMICHI N10
SPECIFICATIONS
N-power Output @4Ω: 800Wx1
N-power Output @2Ω: 1200Wx1
N-power Output @1Ω: 2000Wx1
Max Power : 6000W
Frequency Response : 15Hz-250Hz
Input Sensitivity : 60mV to 6V
Signal To Noise Ratio : ≥90dB
T.H.D. : ≤0.2%
Low Pass Cross Frequency : 50Hz-500Hz
Bass Boost : 0dB-12dB
Remote Subwoofer Level : Yes
Minimum Impedance : 20K
Fuse Size : 35Ax6
Net Weight : Approx. 5.3kg
Dimensions (LxHxW) : 476x214x60mm
SPECIFICATIONS
N-power Output @4Ω: 800Wx1
N-power Output @2Ω: 1200Wx1
N-power Output @1Ω: 2000Wx1
Max Power : 6000W
Frequency Response : 15Hz-250Hz
Input Sensitivity : 60mV to 6V
Signal To Noise Ratio : ≥90dB
T.H.D. : ≤0.2%
Low Pass Cross Frequency : 50Hz-500Hz
Bass Boost : 0dB-12dB
Remote Subwoofer Level : Yes
Minimum Impedance : 20K
Fuse Size : 35Ax6
Net Weight : Approx. 5.3kg
Dimensions (LxHxW) : 476x214x60mm

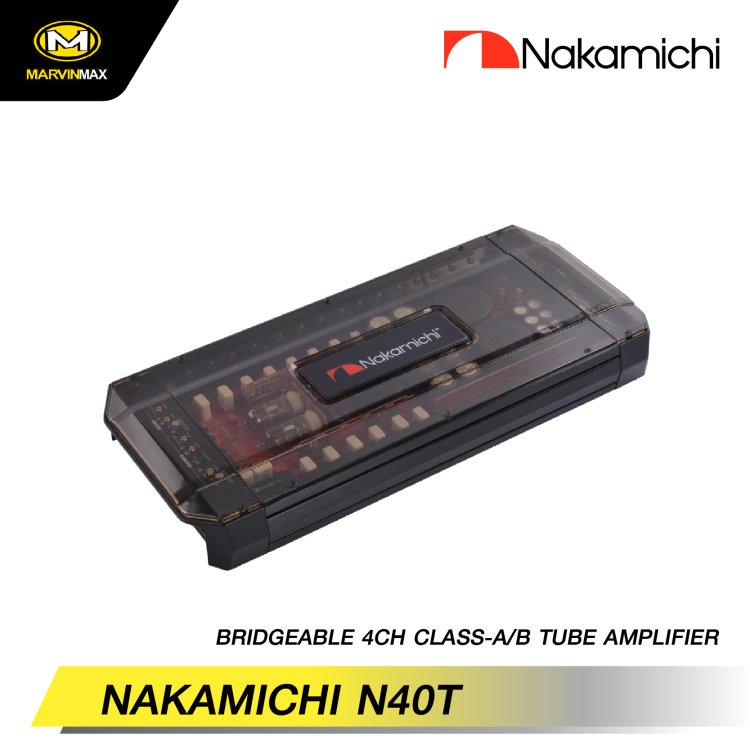

NAKAMICHI N40T
SPECIFICATIONS
N-power Output @4Ω: 150Wx4
N-power Output @2Ω: 225Wx4
Bridge Output @4Ω : 450Wx2
Max Power : 4000W
Frequency Response : 10Hz-25kHz
Input Sensitivity : 200mV to 6V
Signal To Noise Ratio : ≥90dB
T.H.D. : ≤0.2%
Low Pass Cross Frequency : 50Hz-500Hz
Bass Boost : 0dB-12dB
Remote Subwoofer Level : No
Minimum Impedance : 20K
Fuse Size : 30Ax4
Net Weight : Approx. 5.0kg
Dimensions (LxHxW) : 476x214x60mm

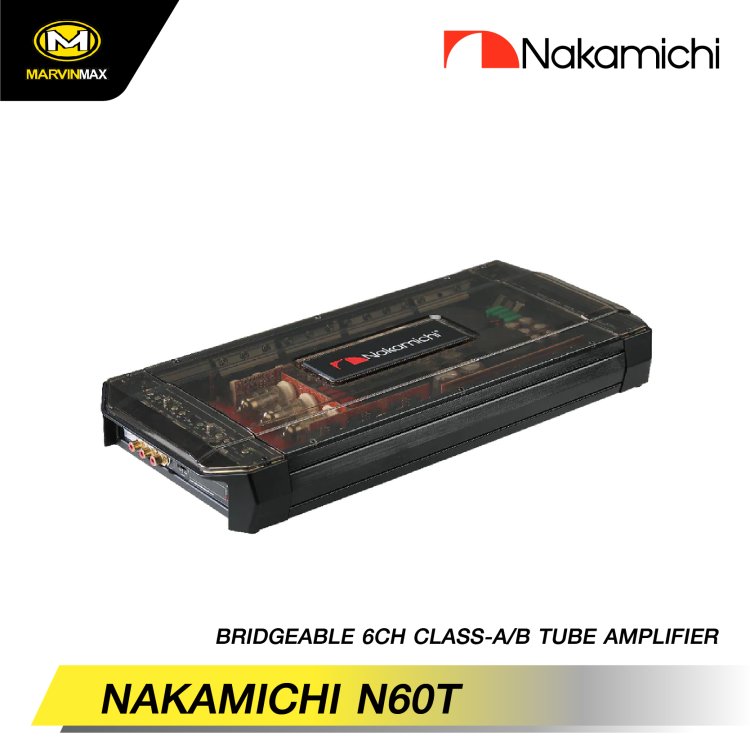

NAKAMICHI N60T
SPECIFICATIONS
N-power Output @2Ω : 150Wx6
N-power Output @4Ω : 100Wx6
Bridge Output @4Ω : 300Wx3
Max Power : 4000W
Frequency Response : 10Hz-25kHz
Input Sensitivity : 200mV to 6V
Signal To Noise Ratio : ≥90dB
T.H.D. : ≤0.2%
Low Pass Cross Frequency : 50Hz-500Hz
Bass Boost : 0dB-12dB
Subwoofer Remote Box : NO
Minimum Impedance : 20K
Fuse Size : 30Ax4
Net Weight : Approx. 5.0kg
Dimensions (LxHxW) : 476x214x60mm
NGX Series

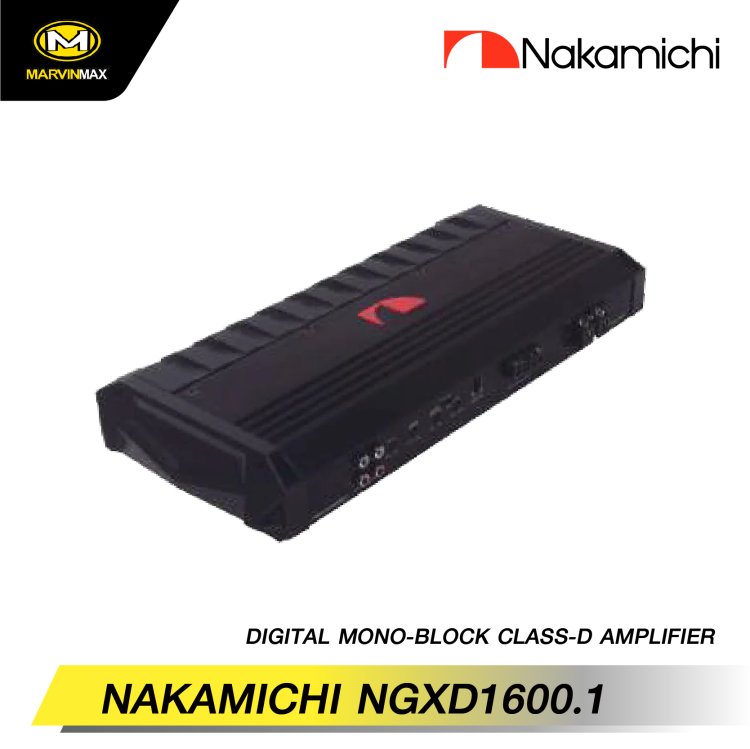

NAKAMICHI NGXD1600.1
SPECIFICATIONS
N-Power Output @4ohm : 700W x 1
N-Power Output@2ohm : 1000W x 1
N-Power Output @1ohm : 1600W x 1
Max Power : 4800W
Frequency Response : 15Hz - 250Hz
Input Sensitivity : 60mV - 4V
Signal To Noise Ratio : ≥90dB
Distortion(THD) : ≤0.2%
Low Pass Cross Frequency : 50Hz - 250Hz
Bass Boost : 0dB - 12dB
Minimum Impedance : 20K
Fuse Size : External fusing required(150A recommended)
Net Weight : approx. 3.8kg
Unit Dimension(LxHxW) : 419x183x55mm

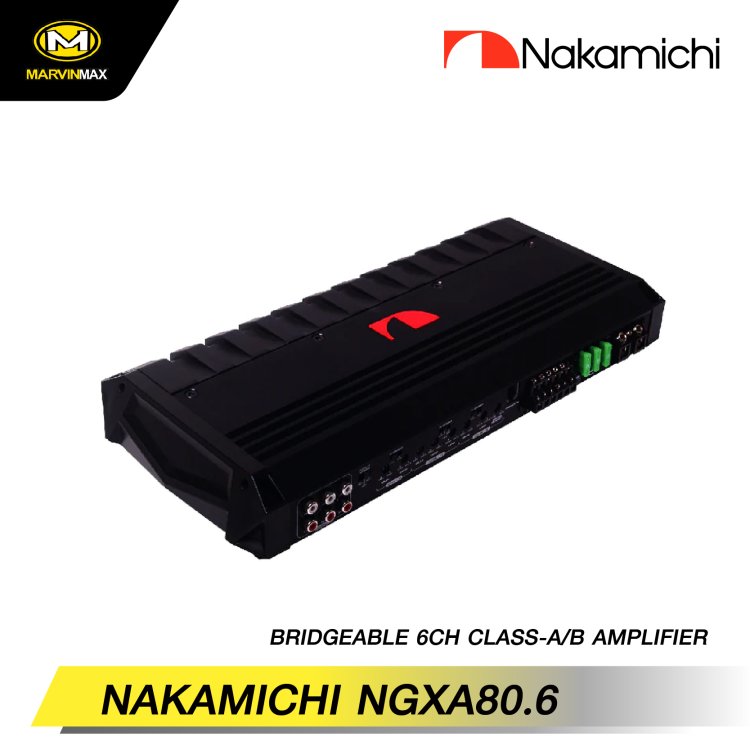

NAKAMICHI NGXA80.6
SPECIFICATIONS
N-Power Output @4ohm : 75W x 6
N-Power Output@2ohm : 110W x 6
N-Power Output @4ohm Bridged : 250W x 3
Max Power : 3000W
Frequency Response : 15Hz - 30kHz
Input Sensitivity : 200mV - 6V
Signal To Noise Ratio : ≥90dB
Distortion (THD) : ≤0.2%
Low Pass Cross Frequency : 50Hz - 3kHz
High Pass Cross Frequency : 20Hz - 3kHz
Bass Boost : 0dB - 12dB
Minimum Impedance : 20K
Fuse Size : 30A x 3
Net Weight : Approx. 3.3kg
Unit Dimension (LxHxW) : 419x183x55mm
NAKAMICHI NGXA80.4
SPECIFICATIONS
N-Power Output @4ohm : 75W x 4
N-Power Output@2ohm : 110W x 4
N-Power Output @4ohm Bridged : 250W x 2
Max Power : 2000W
Frequency Response : 15Hz - 30kHz
Input Sensitivity : 200mV - 6V
Signal To Noise Ratio : ≥90dB
Distortion (THD) : ≤0.2%
Low Pass Cross Frequency : 50Hz - 3kHz
High Pass Cross Frequency : 20Hz - 3kHz
Bass Boost : 0dB 6dB 12dB
Remote Subwoofer Level : No
Minimum Impedance : 20K
Fuse Size : 30A x 2
Net Weight : Approx. 3.1kg
NKT Series

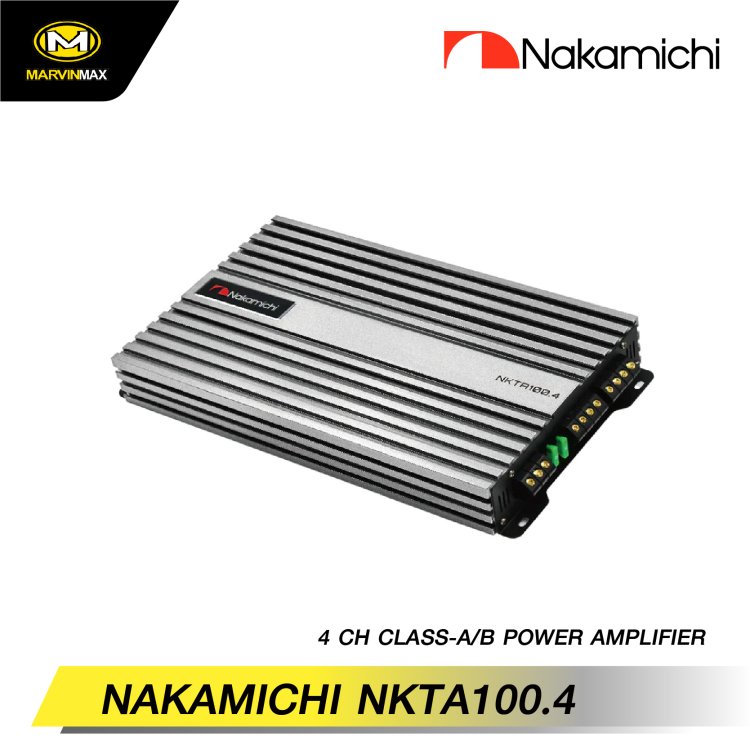

NAKAMICHI NKTA100.4
SPECIFICATIONS
Amplifier Class :A/B
Amplifier Channels : 4CH
N-Power Output @4ohm : 100W x 4
N-Power Output@2ohm : 200W x2
N-Power Output @ 4ohm (bridged) : 200W x2
Max Power : 2500 W
Signal To Noise Ratio : ≥90dB
Frequency Response : 20Hz - 20kHz
Sensitivity : 0.15V - 8V
Distortion (THD) : ≤0.1%
Fuse Size : 30Ax2
Net Weight : Approx. 2.6kg
Unit Dimension (LxHxW) : 340x212x50mm
SPECIFICATIONS
Amplifier Class :A/B
Amplifier Channels : 4CH
N-Power Output @4ohm : 100W x 4
N-Power Output@2ohm : 200W x2
N-Power Output @ 4ohm (bridged) : 200W x2
Max Power : 2500 W
Signal To Noise Ratio : ≥90dB
Frequency Response : 20Hz - 20kHz
Sensitivity : 0.15V - 8V
Distortion (THD) : ≤0.1%
Fuse Size : 30Ax2
Net Weight : Approx. 2.6kg
Unit Dimension (LxHxW) : 340x212x50mm

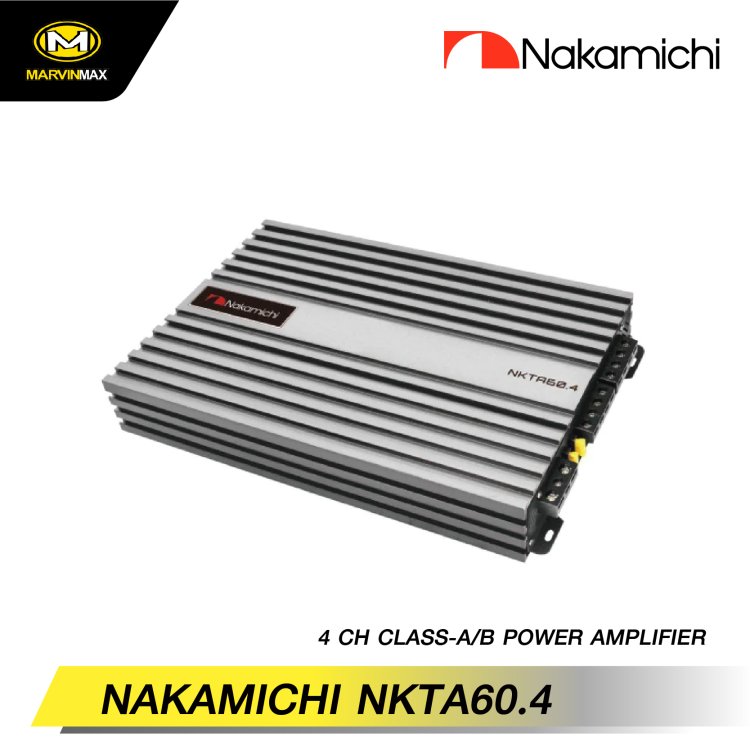

NAKAMICHI NKTA60.4
SPECIFICATIONS
Amplifier Class : Class-A/B
Amplifier Channels : 4 CH
N-Power Output @4ohm : 60W x 4
N-Power Output@2ohm : 70W x 4
N-Power Output @4ohm (bridged) : 120W x 2
Max power : 1500W
Frequency Response : 20Hz - 20kHz
Signal To Noise Ratio : ≥90dB
Sensitivity : 0.15V - 8V
Fuse Size : 20Ax2
Net Weight : Approx. 2.1kg
Unit Dimension (LxHxW) : 318x217x50mm

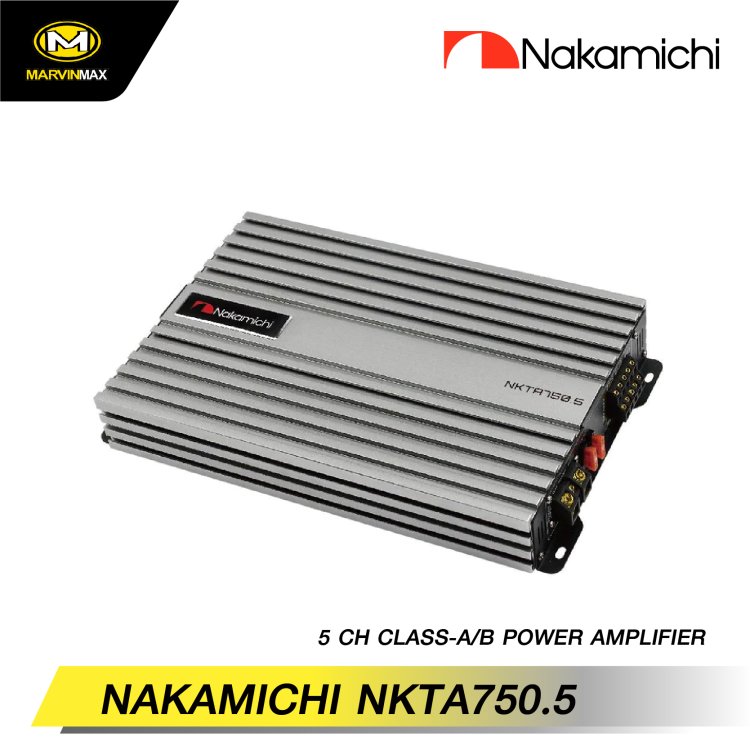

NAKAMICHI NKTA750.5
SPECIFICATIONS
Amplifier Class : Class-A/B
Amplifier Channels : 5 CH
N-Power Output @4ohm : 65W x 4+350W x 1
N-Power Output@2ohm : 90W x 4+500W x 1
Max Power : 3600 W
Frequency Response : 20Hz - 20kHz
Signal To Noise Ratio : ≥90dB
Sensitivity : 0.15V - 8V
Distortion (THD) : ≤0.1%
Fuse Size : 40Ax2
Net Weight : Approx. 2.6kg
Unit Dimension (LxHxW) : 420x267x87mm

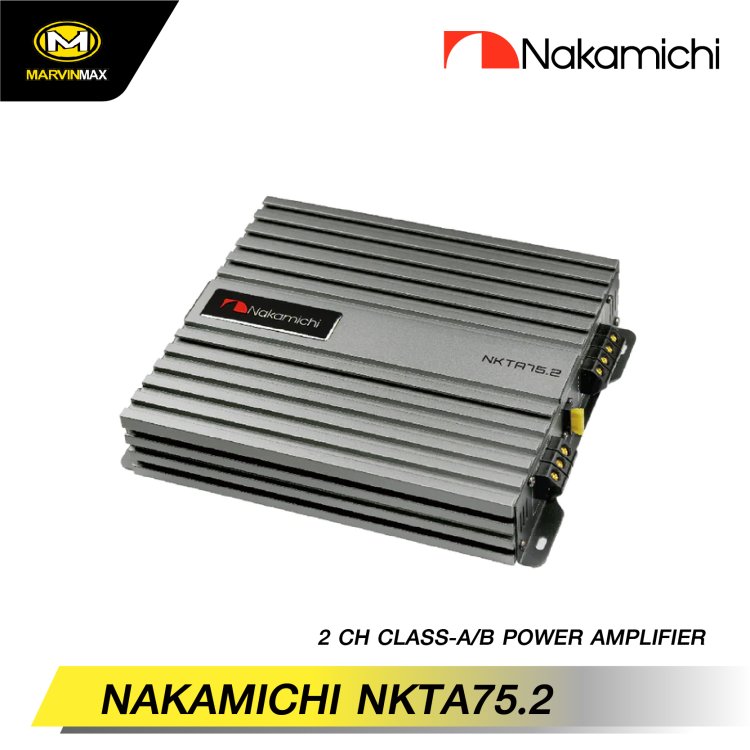

NAKAMICHI NKTA75.2
SPECIFICATIONS
N-Power Output @4ohm : 75W x 2
N-Power Output@2ohm : 100W x 2
N-Power Output @4ohm (bridged) : 150W x 1
Frequency Response : 20Hz - 20kHz
Sensitivity : 0.15V - 8V
Signal To Noise Ratio : ≥90dB
Distortion (THD) : ≤0.1%
Fuse Size : 20Ax1
Net Weight : Approx. 1.7kg
Unit Dimension (LxHxW) : 240x212x50mm

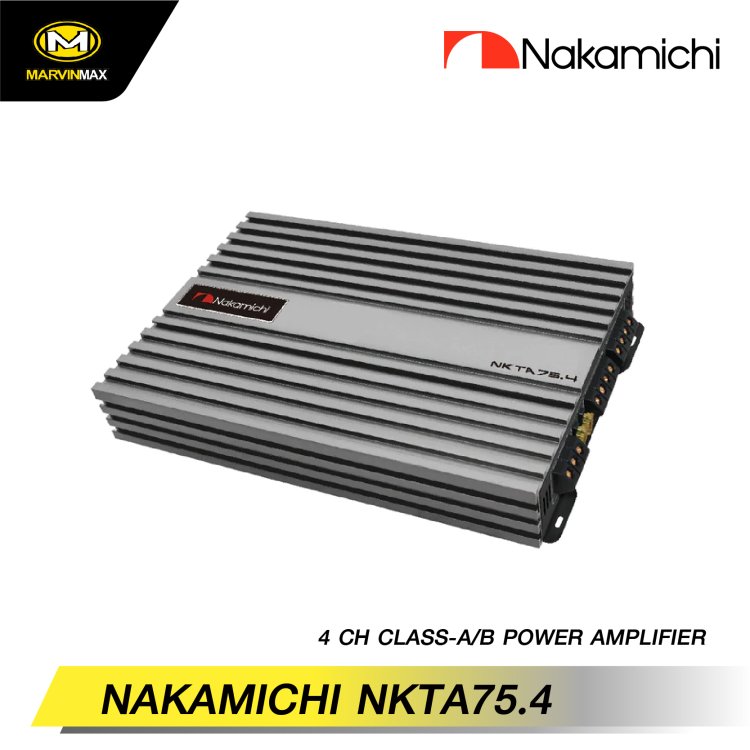

NAKAMICHI NKTA75.4
SPECIFICATIONS
N-Power Output @4ohm : 75W x 4
N-Power Output@2ohm : 100W x 4
N-Power Output @4ohm (bridged) : 150W x 2
Frequency Response : 20Hz - 20kHz
Sensitivity : 0.15V - 8V
Signal To Noise Ratio : ≥90dB
Distortion (THD) : ≤0.1%
Fuse Size : 20Ax2
Net Weight : Approx. 2.3kg
Unit Dimension (LxHxW) : 318x212x51mm

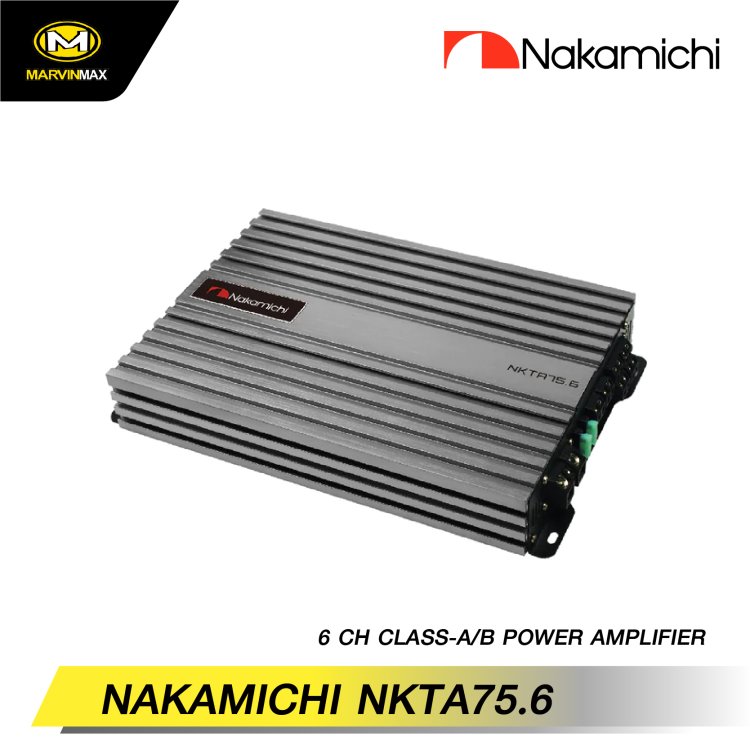

NAKAMICHI NKTA75.6
SPECIFICATIONS
N-Power Output @4ohm : 75W x 6
N-Power Output@2ohm : 100W x 6
N-Power Output @4ohm (bridged) : 150W x 3
Frequency Response : 20Hz - 20kHz
Sensitivity : 0.15V - 8V
Signal To Noise Ratio : ≥90dB
Distortion (THD) : ≤0.1%
Fuse Size : 35Ax2
Net Weight : Approx. 2.6kg
Unit Dimension (LxHxW) : 300x212x50mm
NAKAMICHI NKTD1000.1
SPECIFICATIONS
N-Power Output @4ohm : 400W x 1
N-Power Output@2ohm : 600W x 1
N-Power Output @1ohm : 1000W x 1
Frequency Response : 30Hz - 180Hz
Sensitivity : 0.15V - 8V
Signal To Noise Ratio : ≥90dB
Distortion (THD) : ≤0.1%
Net Weight : Approx. 3.1kg
Unit Dimension (LxHxW) : 330x212x50mm
SPECIFICATIONS
N-Power Output @4ohm : 400W x 1
N-Power Output@2ohm : 600W x 1
N-Power Output @1ohm : 1000W x 1
Frequency Response : 30Hz - 180Hz
Sensitivity : 0.15V - 8V
Signal To Noise Ratio : ≥90dB
Distortion (THD) : ≤0.1%
Net Weight : Approx. 3.1kg
Unit Dimension (LxHxW) : 330x212x50mm
NKS Series

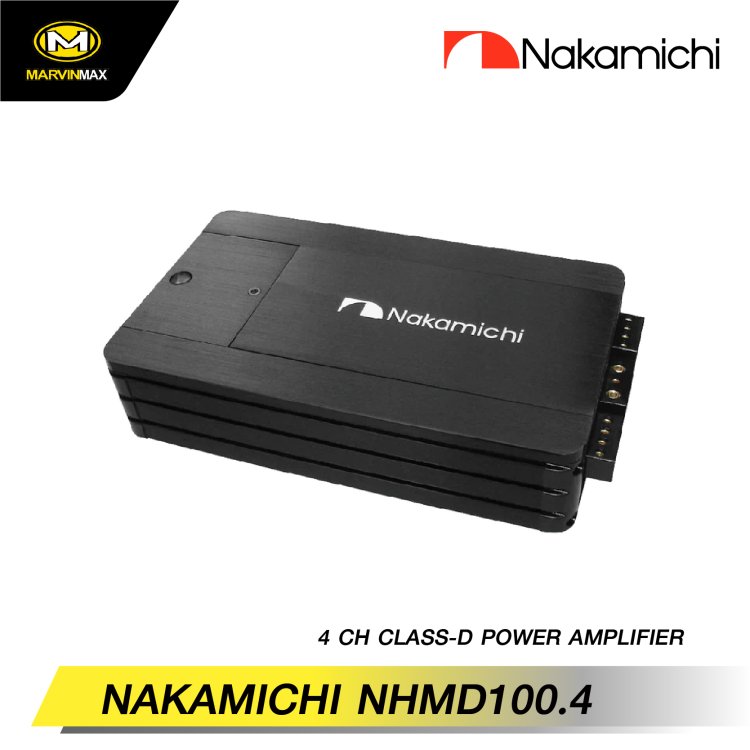

NAKAMICHI NHMD100.4
SPECIFICATIONS
Amplifier Class :Class-D
Amplifier Channels :4 CH
N-Power Output @ 4ohm : 100W x4
N-Power Output @ 2ohm : 125 W x4
N-Power Output @ 4ohm (bridged) : 200 W x2
Max Power : 2500W
Frequency Response ：20Hz-20KHz
Signal To Noise Ratio +A: ≥90 dB
Sensitivity : 0.15V~8V
Distortion (THD) : ≤0.1%
Unit Dimensions(L×H×W）: 222×120×48mm
Net Weight : Approx. 1.4kg
Box Dimensions(L×H×W）：295×218×75mm
Gross Weight : Approx. 2.5kg

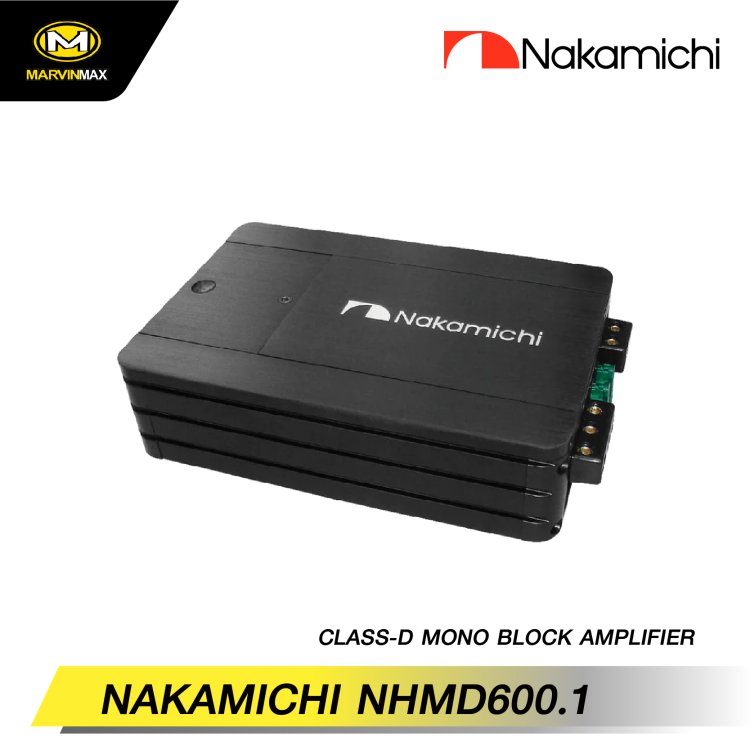

NAKAMICHI NHMD600.1
SPECIFICATIONS
Amplifier Class : Class-D
N-Power Output @ 4ohm : 400W x1
N-Power Output @ 2ohm : 600 W x1
Max Power : 3600W
Full Frequency Response ：5Hz-20KHz
SUB Frequency Response ：30-250Hz
Signal To Noise Ratio +N:≥90 dB
Sensitivity : 0.32V~6.5V
Unit Dimensions : 195×120×48mm
Net Weight : Approx. 1.3kg
Box Dimensions(L×H×W）：265×218×75mm
Gross Weight : Approx. 2.4kg
SPECIFICATIONS
Amplifier Class : Class-D
N-Power Output @ 4ohm : 400W x1
N-Power Output @ 2ohm : 600 W x1
Max Power : 3600W
Full Frequency Response ：5Hz-20KHz
SUB Frequency Response ：30-250Hz
Signal To Noise Ratio +N:≥90 dB
Sensitivity : 0.32V~6.5V
Unit Dimensions : 195×120×48mm
Net Weight : Approx. 1.3kg
Box Dimensions(L×H×W）：265×218×75mm
Gross Weight : Approx. 2.4kg

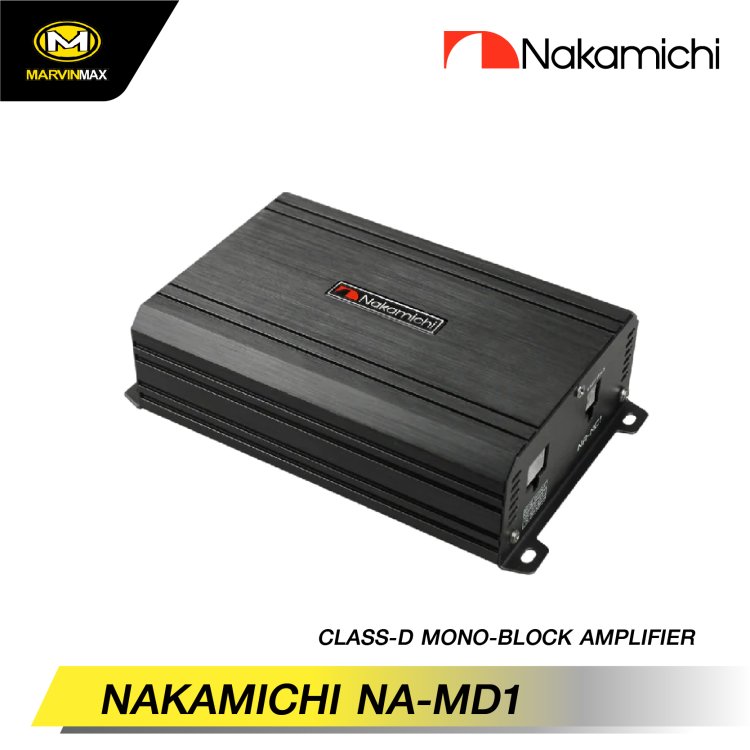

NAKAMICHI NA-MD1
SPECIFICATIONS
N-Power Output @4ohm : 250W x 1
N-Power Output @2ohm : 350W x 1
Peak Power : 2100W
Frequency Response : 20Hz - 250Hz
Input Sensitivity : 250mV - 6V
Signal To Noise Ratio : ≧90dB
Distortion (THD) : ≦0.2%
Low Pass Cross Frequency : 50Hz - 250Hz
Minimum Impedance : 20K
Fuse Size : 35A x 1 (mini)
Net Weight : Approx. 1kg
Unit Dimension (LxHxW) : 148x103x44mm

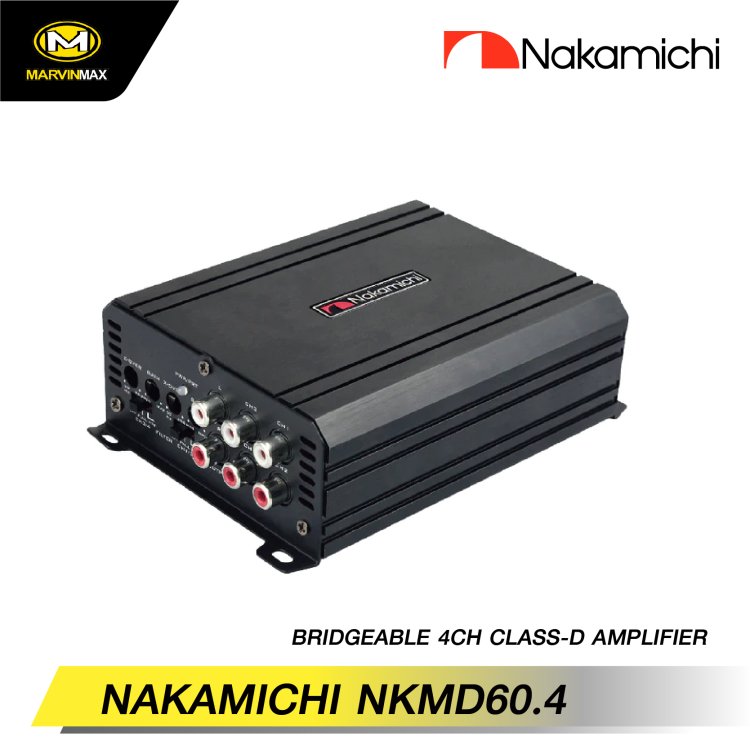

NAKAMICHI NKMD60.4
SPECIFICATIONS
N-Power Output @4ohm : 60W x 4
N-Power Output @2ohm : 75W x 4
N-Power Output @4ohm Bridged : 150W x 2
Peak Power : 1500W
Frequency Response : 40Hz - 18kHz
Input Sensitivity : 250mV - 6V
Signal To Noise Ratio : ≥90dB
Distortion(THD) : ≤0.2%
Low Pass Cross Frequency : 50Hz - 250Hz
High Pass Cross Frequency : 5kHz - 20kHz
Minimum Impedance : 20K
Fuse Size : 30A x 1 (mini)
Net Weight : Approx. 0.8kg
Unit Dimension (LxHxW) : 128x103x44mm
NGO Series

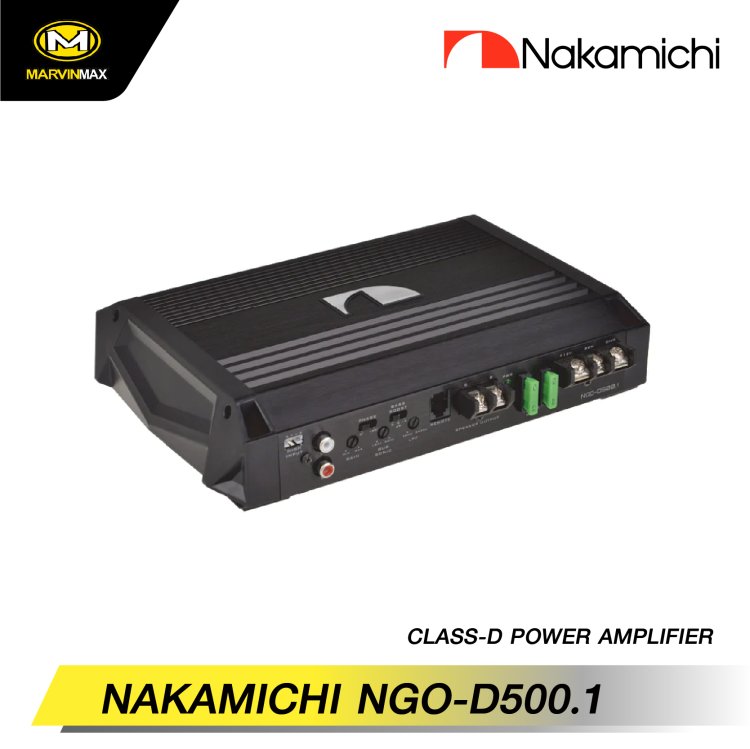

NAKAMICHI NGO-D500.1
SPECIFICATIONS
Amplifier Class：D
N-Power Output @2ohm(T.H.D.1%) : 500W x 1
N-Power Output @4ohm(T.H.D.1%) : 320W x 1
Max Power : 3000W
Frequency Response : 15Hz - 250Hz
Low Pass Cross Frequency : 50Hz-250HZ
Bass Boost : 0dB - 6dB - 12dB
Minimum Impedance : 20KΩ
Signal To Noise Ratio : ≥90dB
Sensitivity : 200m V~ 5 V
Distortion (THD) : ≤0.2%
Fuse Size : 30A x 2
Net Weight : Approx. 1.6kg
Unit Dimension (LxHxW) : 274x183x55mm

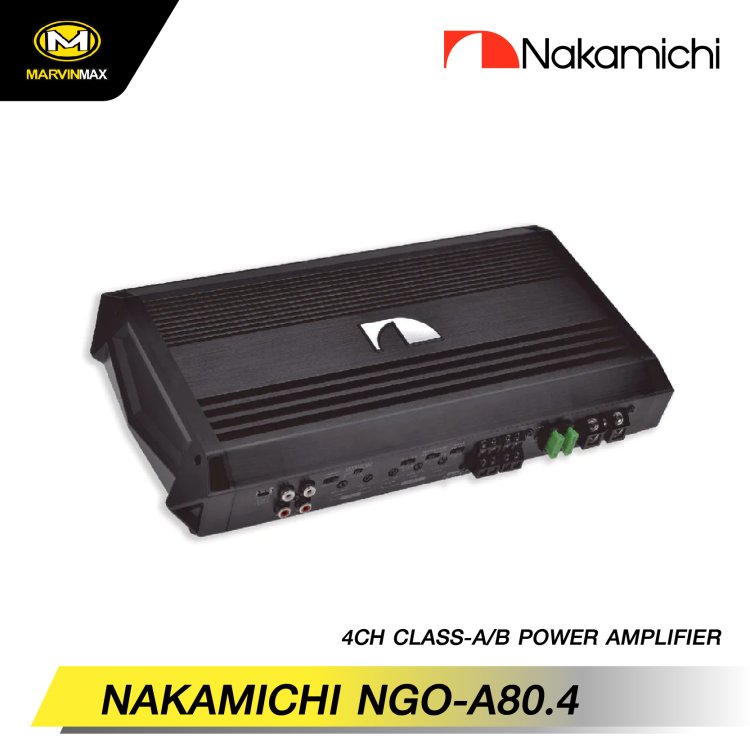

NAKAMICHI NGO-A80.4
SPECIFICATIONS
Amplifier Class ：A/B
Amplifier Channels : 4CH
N-Power Output @4ohm(T.H.D.10%) : 80W x 4
N-Power Output @4ohm(T.H.D.1%) : 70W x 4
N-Power Output@2ohm(T.H.D.1%) : 100W x 4
N-Power Output @4ohm (Bridged,T.H.D.1%) : 200W x 2
Max Power : 2000W
Frequency Response : 10Hz - 20kHz
Input Sensitivity : 500mV - 6V
Low Pass Cross Frequency3-4CH（×1，×10）: 50Hz - 500Hz,500Hz-5KHZ
High Pass Cross Frequency 1-2CH（×1，×10）: 20Hz - 500Hz,200Hz-5kHz
High Pass Cross Frequency 3-4CH: 20Hz - 3kHz
Bass Boost : 0dB-6dB-12dB
Minimum Impedance : 20KΩ
Signal To Noise Ratio : ≥90dB
Sensitivity : 500m V~ 6 V
Distortion (THD) : ≤0.2%
Fuse Size : 30A x 2
Net Weight : Approx. 2.3kg
Unit Dimension (LxHxW) : 369x183x55mm

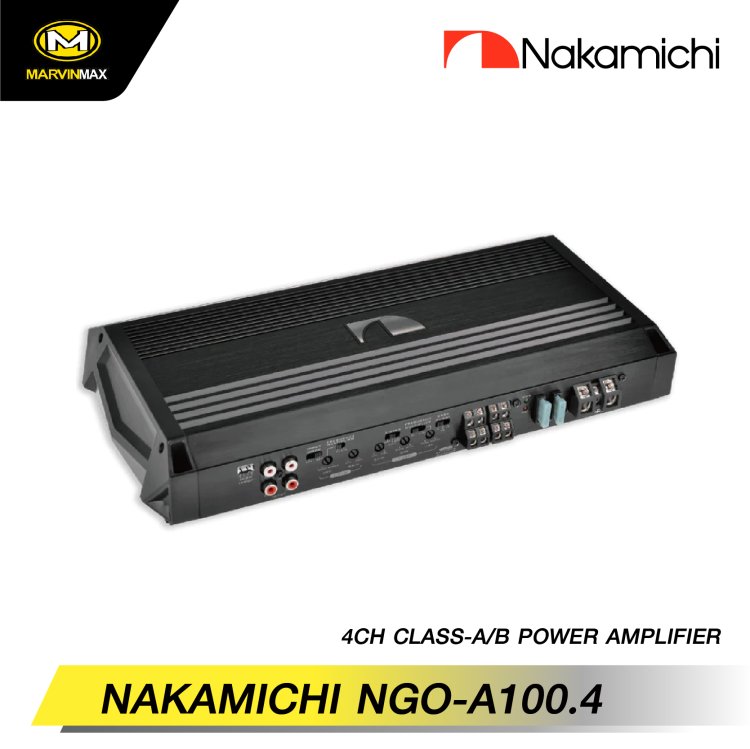

NAKAMICHI NGO-A100.4
SPECIFICATIONS
Amplifier Class ：A/B
Amplifier Channels : 4CH
N-Power Output @4ohm(T.H.D.10%) : 100W x 4
N-Power Output @4ohm(T.H.D.1%) : 90W x 4
N-Power Output@2ohm(T.H.D.1%) : 130W x 4
N-Power Output @4ohm (Bridged,T.H.D.1%) : 260W x 2
Max Power : 2400W
Frequency Response : 10Hz - 20kHz
Input Sensitivity : 500mV - 6V
Low Pass Cross Frequency3-4CH（×1，×10）: 50Hz - 500Hz,500Hz-5KHZ
High Pass Cross Frequency1-2CH（×1，×10）: 20Hz - 500Hz，200Hz-5KHZ
High Pass Cross Frequency3-4CH: 20Hz-3KHZ
Bass Boost : 0dB 6dB 12dB
Minimum Impedance : 20KΩ
Signal To Noise Ratio : ≥90dB
Distortion (THD) : ≤0.2%
Fuse Size : 35A x 2
Net Weight : Approx. 2.5kg
Unit Dimension (LxHxW) : 389x183x55mm

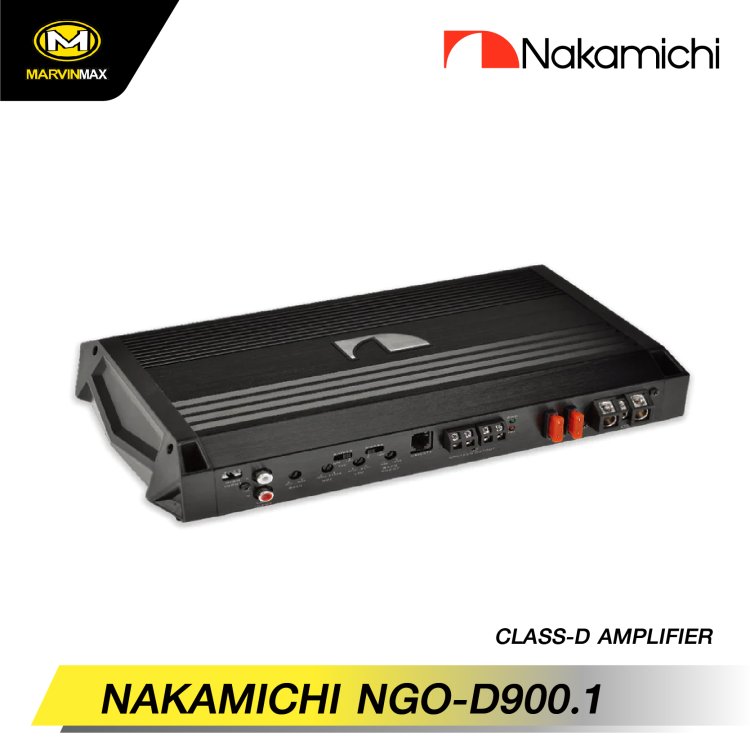

NAKAMICHI NGO-D900.1
SPECIFICATIONS
Amplifier Class：D
N-Power Output @1ohm(T.H.D.10%) : 900W x 1
N-Power Output @1ohm(T.H.D.1%) : 800W x 1
N-Power Output@2ohm(T.H.D.1%) : 560W x 1
Max Power : 5400W
Frequency Response : 10Hz - 20kHz
Low Pass Cross Frequency : 40Hz-6KHZ
High Pass Cross Frequency : 40Hz - 250Hz
Bass Boost : 0dB ~ 12dB
Minimum Impedance : 20KΩ
Signal To Noise Ratio : ≥90dB
Input Sensitivity : 500m V~ 6 V
Distortion (THD) : ≤0.2%
Fuse Size : 40A x 2
Net Weight : Approx. 2.1kg
Unit Dimension (LxHxW) : 324x183x55mm

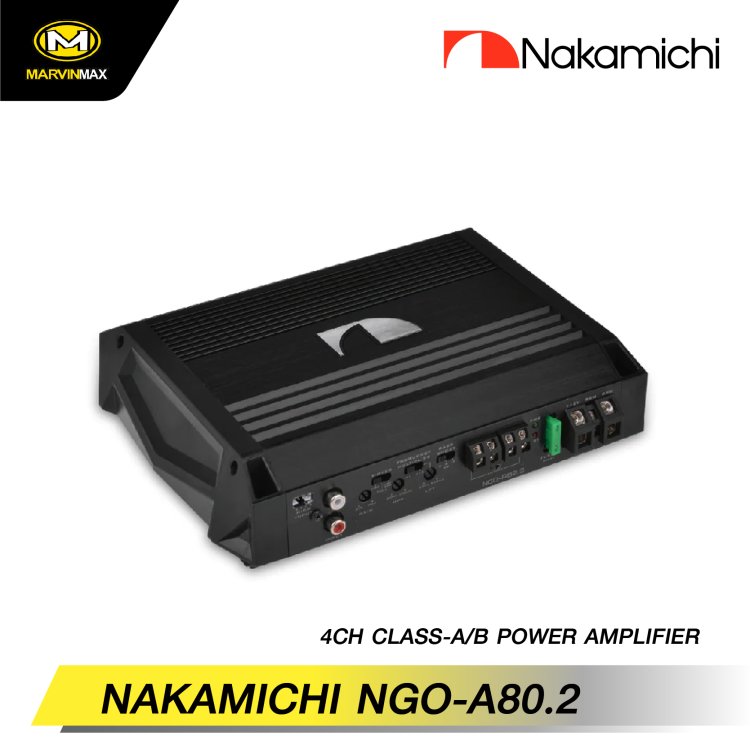

NAKAMICHI NGO-A80.2
SPECIFICATIONS
Amplifier Class ：A/B
Amplifier Channels : 2CH
N-Power Output @4ohm(T.H.D.10%) : 80W x 2
N-Power Output @4ohm(T.H.D.1%) : 70W x 2
N-Power Output@2ohm(T.H.D.1%) : 105W x 2
N-Power Output @4ohm (Bridged,T.H.D.1%) : 210W x 1
Max Power : 960W
Frequency Response : 10Hz - 20kHz
Input Sensitivity : 500mV - 6V
Low Pass Cross Frequency : 50Hz - 500Hz,500Hz-5KHZ
High Pass Cross Frequency : 20Hz - 250Hz
Bass Boost : 0dB 6dB 12dB
Minimum Impedance : 20KΩ
Signal To Noise Ratio : ≥90dB
Sensitivity : 500m V~ 6 V
Distortion (THD) : ≤0.2%
Fuse Size : 30A x 1
Net Weight : Approx. 1.7kg
Unit Dimension (LxHxW) : 249x183x55mm
NRO Series

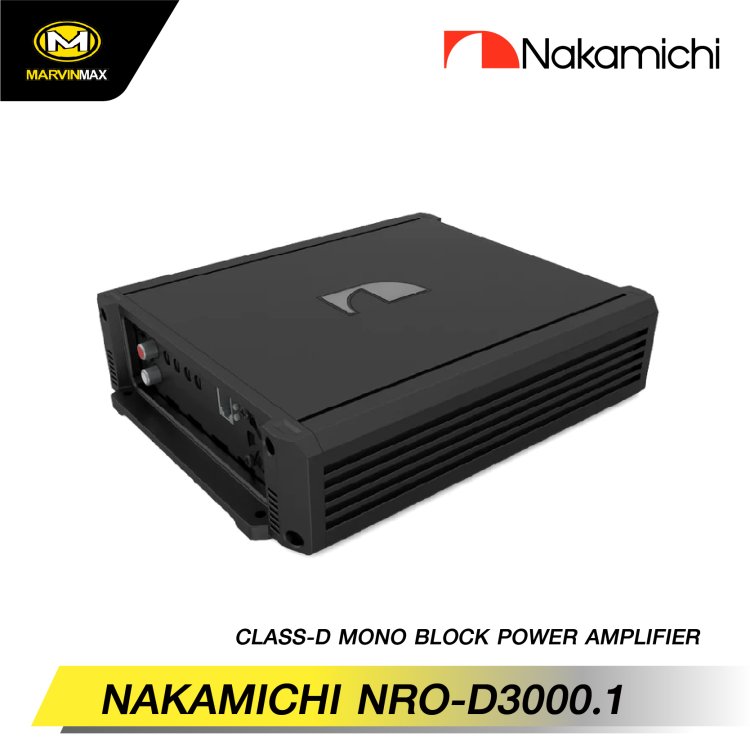

NAKAMICHI NRO-D3000.1
SPECIFICATIONS
Amplifier Class ：D
N-Power Output @1ohm(T.H.D.10%) : 3000W x 1
N-Power Output @2ohm(T.H.D.1%) : 1600W x 1
N-Power Output @4ohm(T.H.D.1%) : 1000W x 1
Max Power : 18000W
Frequency Response : 10Hz - 20kHz
Low Pass Cross Frequency : 80Hz-20kHZ
High Pass Cross Frequency : 10Hz-80HZ
Bass Boost : 0dB - 10dB
Minimum Impedance : 20KΩ
Signal To Noise Ratio : ≥90dB
Input Sensitivity : 200m V~ 5 V
Distortion (THD) : ≤0.2%
Fuse Size : 200A x 1
Net Weight : Approx. 2.6kg
Unit Dimension (LxHxW) : 235x190x54mmฟ

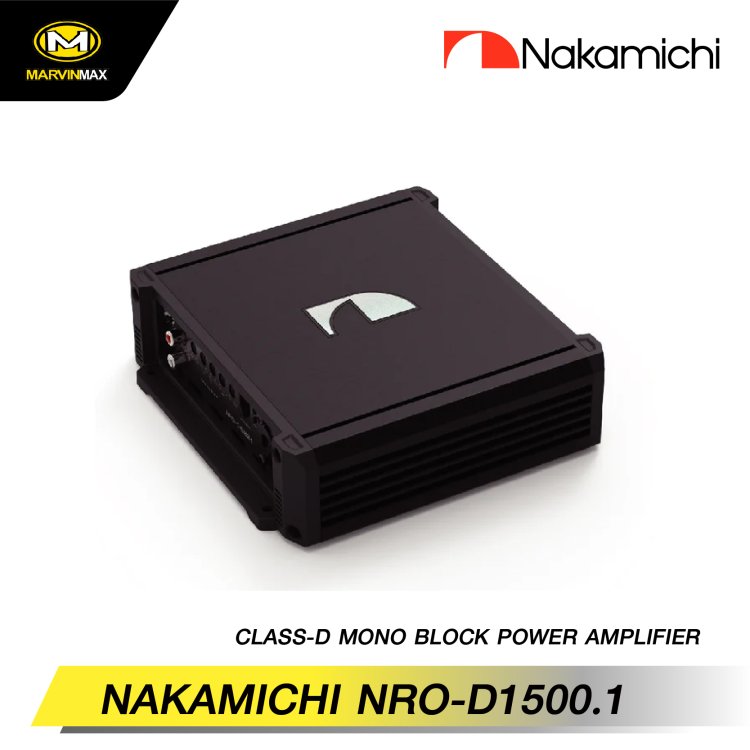

NAKAMICHI NRO-D1500.1
SPECIFICATIONS
Amplifier Class ：D
N-Power Output @1ohm(T.H.D.10%) : 1500W x 1
N-Power Output @2ohm(T.H.D.1%) : 800W x 1
N-Power Output @4ohm(T.H.D.1%) : 400W x 1
Max Power : 9000W
Frequency Response : 10Hz - 20kHz
Low Pass Cross Frequency : 80Hz-20kHZ
High Pass Cross Frequency : 10Hz-80HZ
Bass Boost : 0dB - 10dB
Minimum Impedance : 20KΩ
Signal To Noise Ratio : ≥90dB
Input Sensitivity : 200m V~ 5 V
Distortion (THD) : ≤0.2%
Fuse Size : 100A x 1
Net Weight : Approx. 1.9kg
Unit Dimension (LxHxW) : 185x190x54mm
Powered by
MakeWebEasy.com
