Speakers

Tweeters

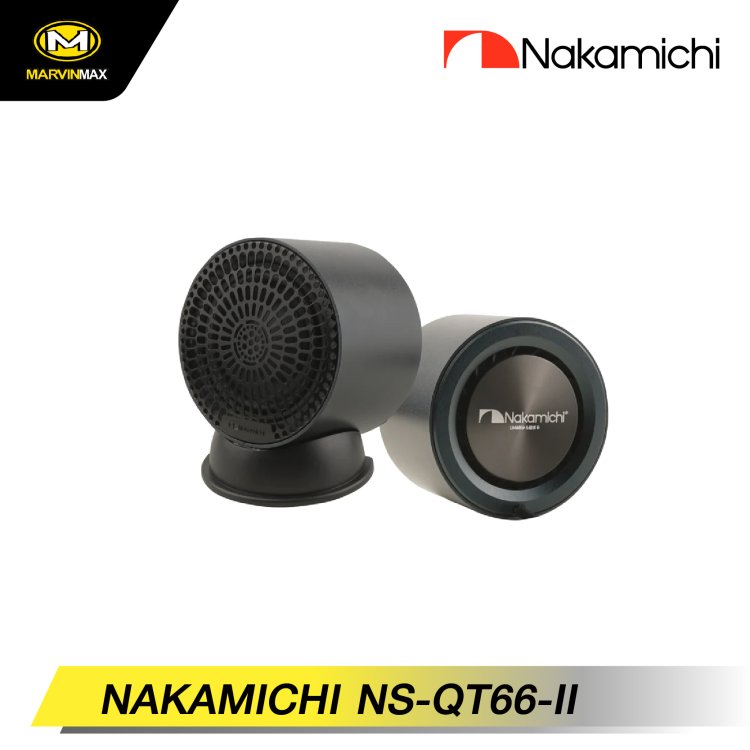

NAKAMICHI NS-QT66-II

SPECIFICATIONS
Type : 25mm KSV TWEETER SYSTEM
N-Power : 20W
Peak Power : 200W
Sensitivity (dB/W/m) : 89±3dB
Frequency Response : 310-20kHz
Impedance : 3Ω
Voice Coil : KSV ∅25mm
Net Weight : Approx. 0.45kg

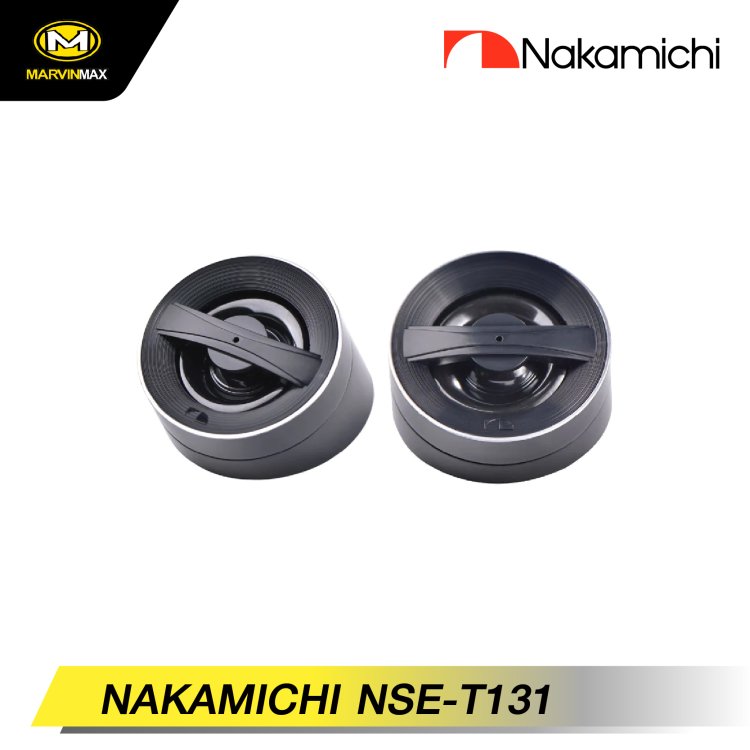

NAKAMICHI NSE-T131

SPECIFICATIONS
Type : KSV Tweeter Speakers
Size : 13mm
Peak Power : 80W
N-Power : 15W
Frequency Response : 4.5-20kHZ
Sensitivity (dB/W/m) : 84±3dB
Impedance : 4Ω
Mounting Depth : >0.55” (14mm) >1.22” (31mm)
Magnet Mass : 12.5×3
Net Weight : Approx. 50g

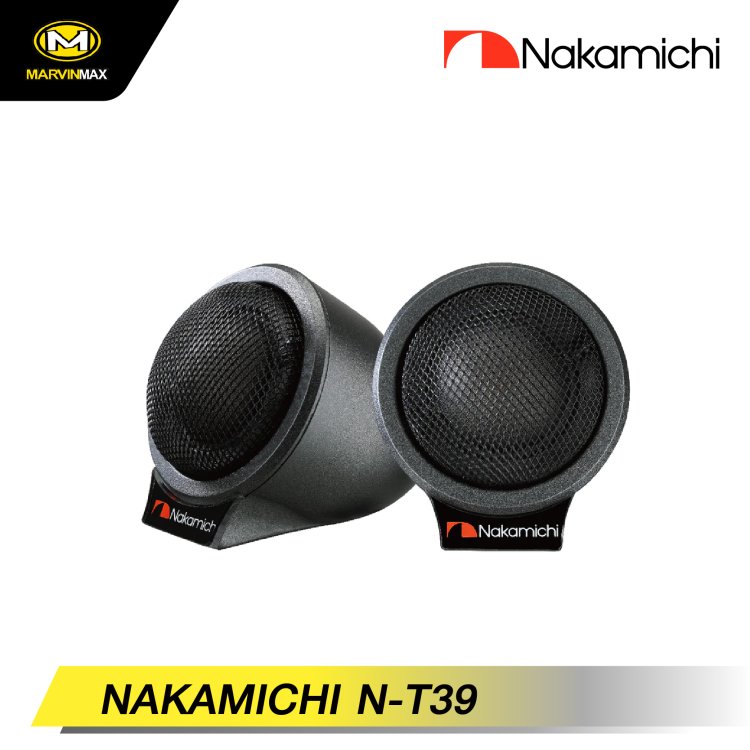

NAKAMICHI N-T39

SPECIFICATIONS
N-Power : 15W
Impedance : 6Ω
Sensitivity (dB/W/m) : 86dB±3dB
Frequency Response : 1.2kHz - 20kHz
Voice Coil : Φ30mm ASV
Cone Material : Silk
Magnet Type : Neodymium
Dimensions : 61.6x71.5x82.1mm
Net Weight : 0.22kg

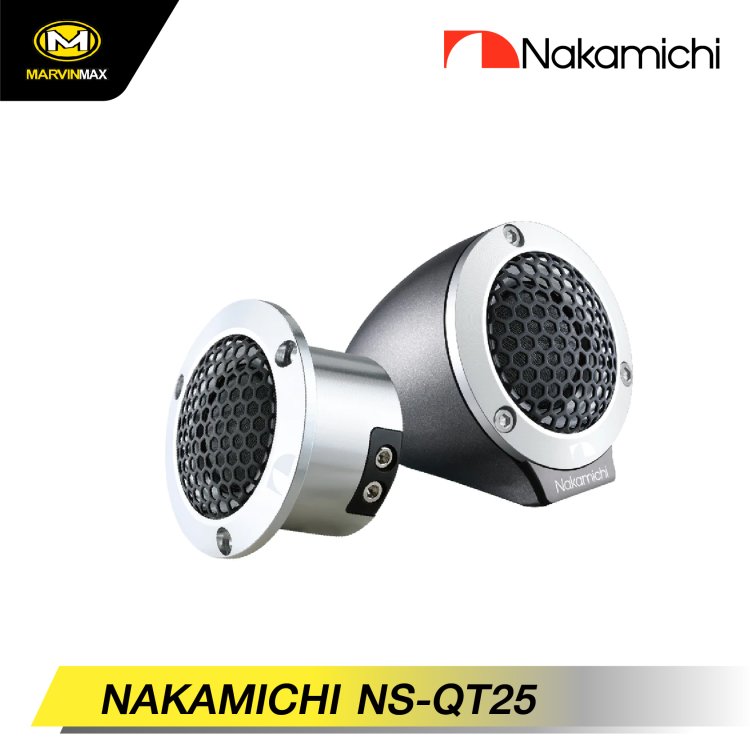

NAKAMICHI NS-QT25

SPECIFICATIONS
SN-Power : 20W
Impedance : 4Ω
Sensitivity (dB/W/m) : 89dB±3dB
Frequency Response : 800Hz - 20kHz
Voice Coil : Φ25mm ASV
Cone Material : Silk
Magnet Mass : 0.43Oz
Magnet Type : Neodymium
Dimensions : 58mm x 35mm (without housing)
Mounting : Depth 30mm
Mounting : Diameter 42mm

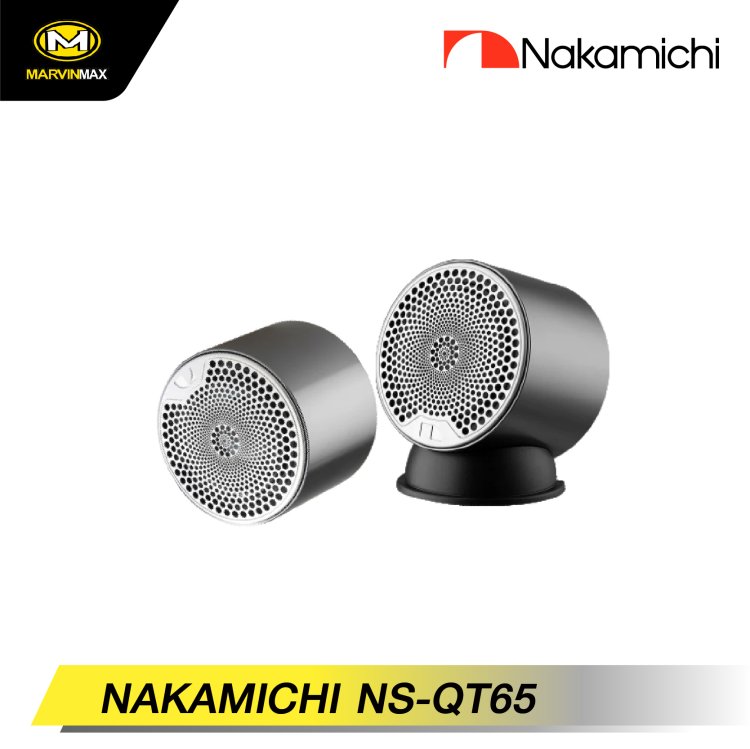

NAKAMICHI NS-QT65

SPECIFICATIONS
SN-Power : 20W
Impedance : 3Ω
Sensitivity (dB/W/m) : 89±3dB
Frequency Response : 270Hz - 20kHz
Voice Coil : Φ25.5 mm KSV
Cone Material : Silk
Magnet Type : Neodymium
Dimensions : 70mm x 70mm x 49mm
Net Weight : Approx. 0.24kg (1 pc)

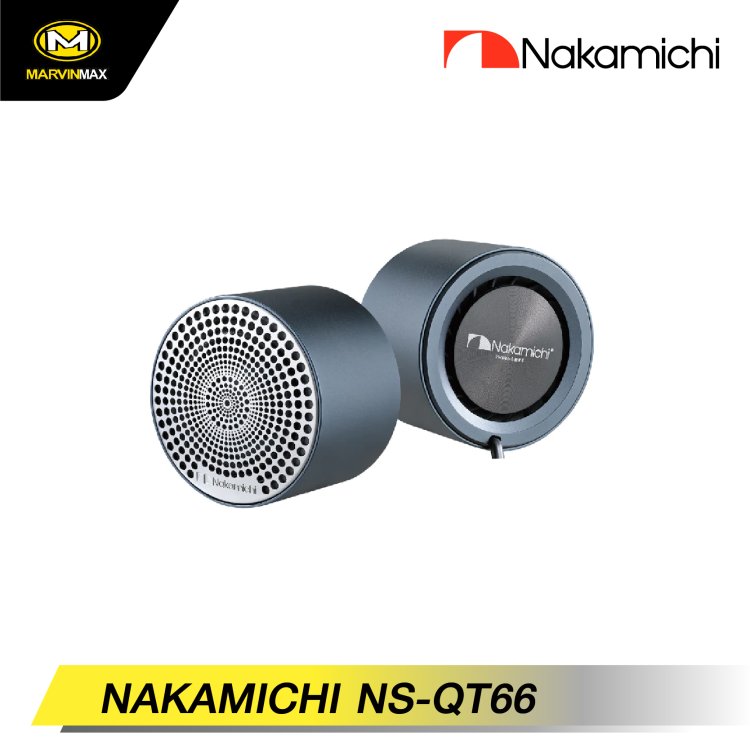

NAKAMICHI NS-QT66

SPECIFICATIONS
N-Power : 20W
Impedance : 3Ω
Sensitivity (dB/W/m) : 89±3dB
Frequency Response : 310Hz - 20kHz
Voice Coil : Φ25.5 mm KSV
Cone Material : Silk
Magnet Mass : 1.05Oz (30g)
Magnet Type : Neodymium
Net Weight : Approx. 0.45 kg

Component Sreakers

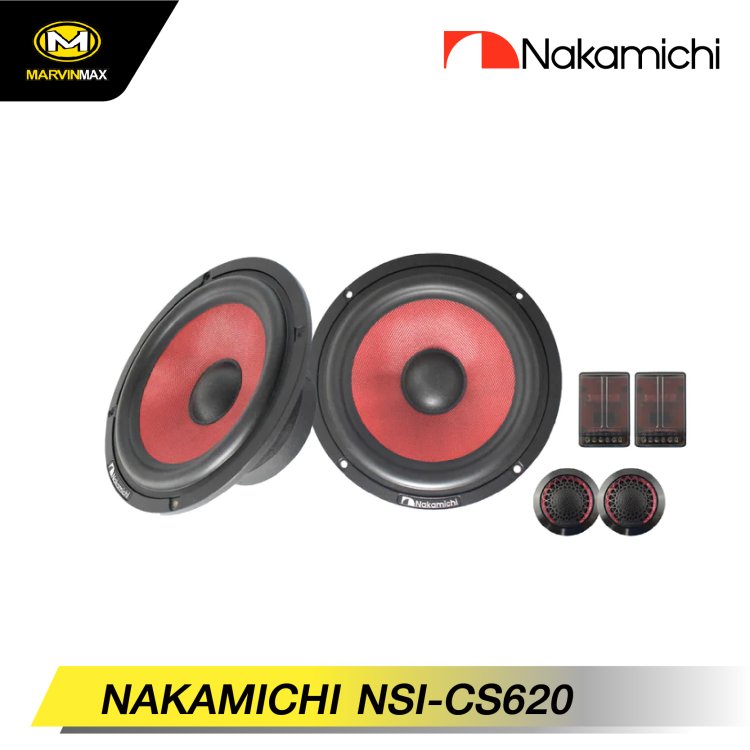

NAKAMICHI NSI-CS620

SPECIFICATIONS
Type : 6.5” Woofer
Mounting Depth : >2.44” (62mm)
N-Power : 35W
Peak Power : 250W
Sensitivity (dB/W/m) : 88±3dB
Frequency Response : 50-10kHz
Impedance : 3Ω
Voice Coil : KSV φ25.5mm
Magnet type : Ferrit
Magnet Mass : 13.1Oz (371g)
Net Weight : Approx. 0.86kg
Speaker Type : 25mm Tweeter
Mounting Depth : >0.65” (16.5mm)
N-Power : 10W
Peak Power : 65W
Sensitivity (dB/W/m) : 90±3dB
Frequency Response : 1500-20kHz
Impedance : 4Ω
Voice Coil : ASV 25.4mm
Magnet type :Neodymium
Magnet Mass : 0.3Oz (8.4g)
Net Weight : Approx. 0.08kg

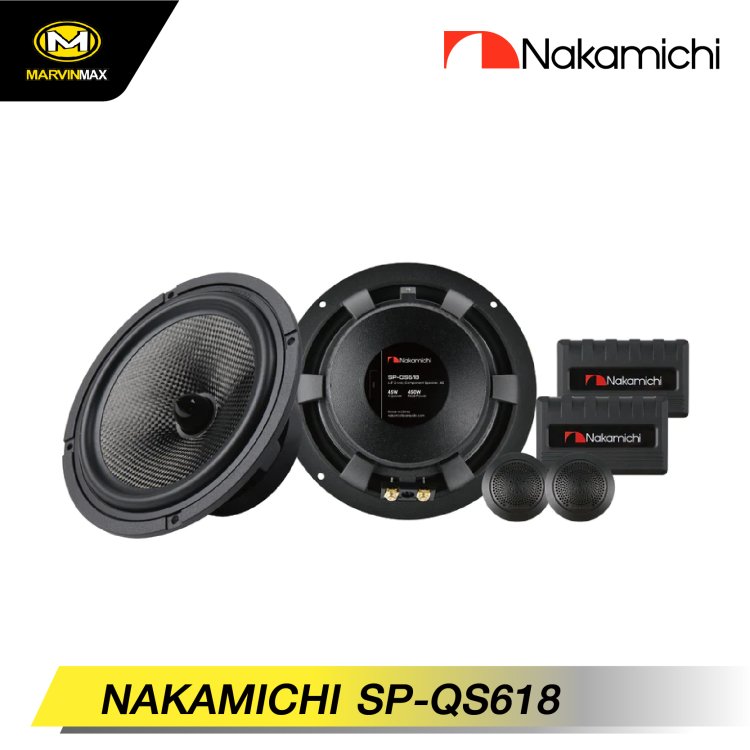

NAKAMICHI SP-QS618

SPECIFICATIONS
Type : 6.5” (16.7cm) 2-way
Mounting Depth : >2.7” (67mm)
N-Power : 45W
Peak Power : 450W
Sensitivity (dB/W/m) : 88±3dB
Frequency Response : 58-20kHz
Impedance : 4Ω
Voice Coil : KSV φ25.5mm
Magnet Mass : 12Oz (340g)
Net Weight : Approx. 2.5kg

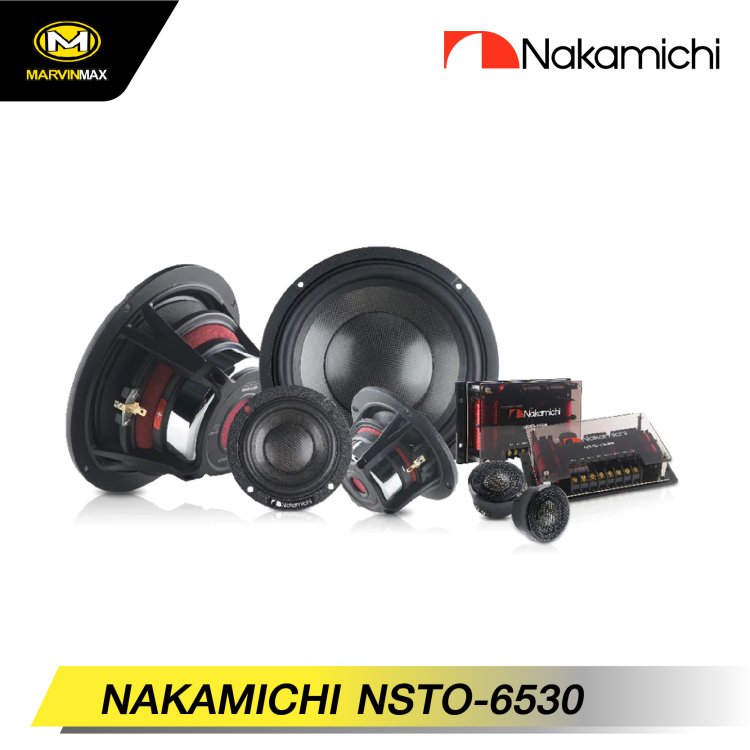

NAKAMICHI NSTO-6530

SPECIFICATIONS
Type : 6.5” Woofer / Mounting Depth : >2.64” (67mm) / N-Power : 75W / Peak Power : 500W / Sensitivity (dB/W/m) : 88±3dB / Frequency Response : 50-3.5kHz / Impedance : 4Ω / Voice Coil : ASV φ75mm / Magnet type : Ferrit / Magnet Mass : 9.8+6.5Oz (278+184g) / Net Weight : Approx. 1.1kg / Speaker Type : 3” Mid-Range / Mounting Depth : >1.73” (44mm) / N-Power : 25W / Peak Power : 150W / Sensitivity (dB/W/m) : 86±3dB / Frequency Response : 200-8kHz / Impedance : 4Ω / Voice Coil : TIL φ35mm / Magnet type : Neodymium / Magnet Mass : 0.9Oz (25.5g) / Net Weight : Approx. 0.31kg / Speaker Type : 28mm Tweeter / Mounting Depth : >1.06” (27mm) / N-Power : 15W / Peak Power : 100W / Sensitivity (dB/W/m) : 89±3dB / Frequency Response : 2kHz-20kHz / Impedance : 4Ω / Voice Coil : ASV φ28mm / Magnet type : Neodymium / Magnet Mass : 0.4Oz (11.3g) / Net Weight : Approx. 0.13kg

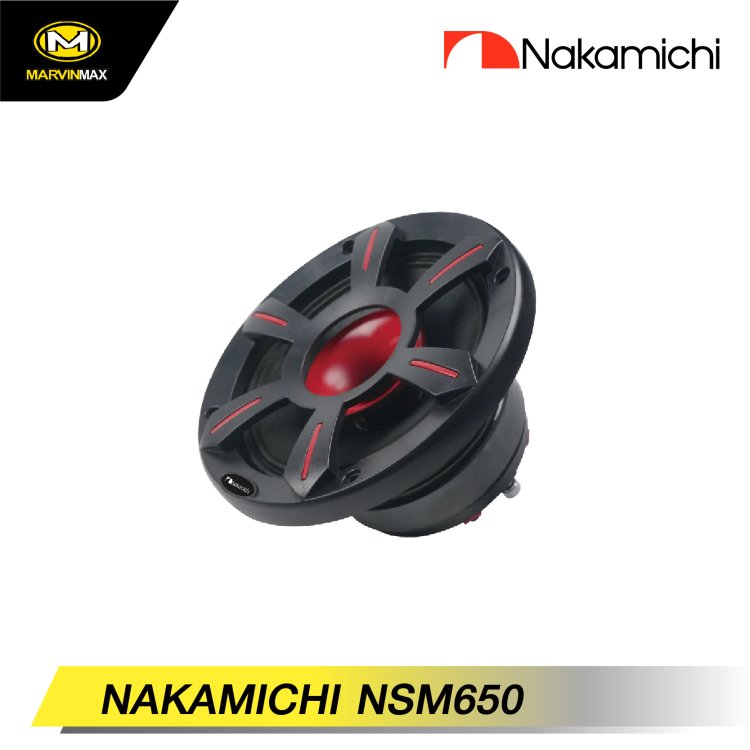

NAKAMICHI NSM650

SPECIFICATIONS
Type : 6.5” (16.7cm)
Mounting Depth : >3.6” (92mm)
N-Power : 60W
Peak Power : 400W
Sensitivity (dB / W / m) : 93±3dB
Frequency Response : 120Hz-20kHz
Impedance : 4Ω
Voice Coil : TSV 38.5mm
Magnet Mass : 27.3Oz (775g)
Net Weight : Approx. 1.9 kg

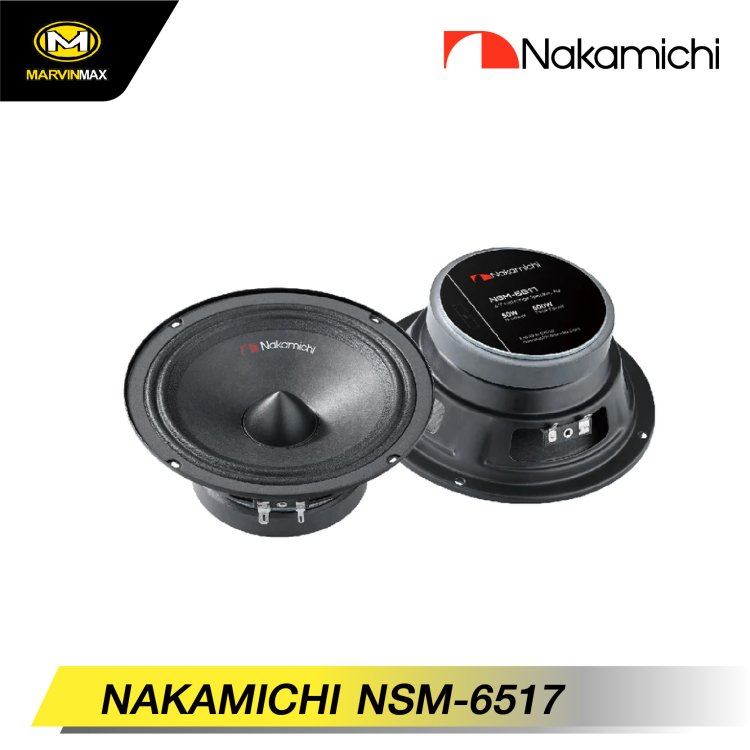

NAKAMICHI NSM-6517

SPECIFICATIONS
Type : 6.5” (16.6cm)
Mounting Depth : >2.7” (67mm)
N-Power : 50W
Peak Power : 500W
Sensitivity (dB / W / m) : 90±3dB
Frequency Response : 113-15kHz
Impedance : 4Ω
Voice Coil : KSV 25.5mm
Magnet Mass : 15.4Oz (437g)
Net Weight : Approx. 2.1 kg

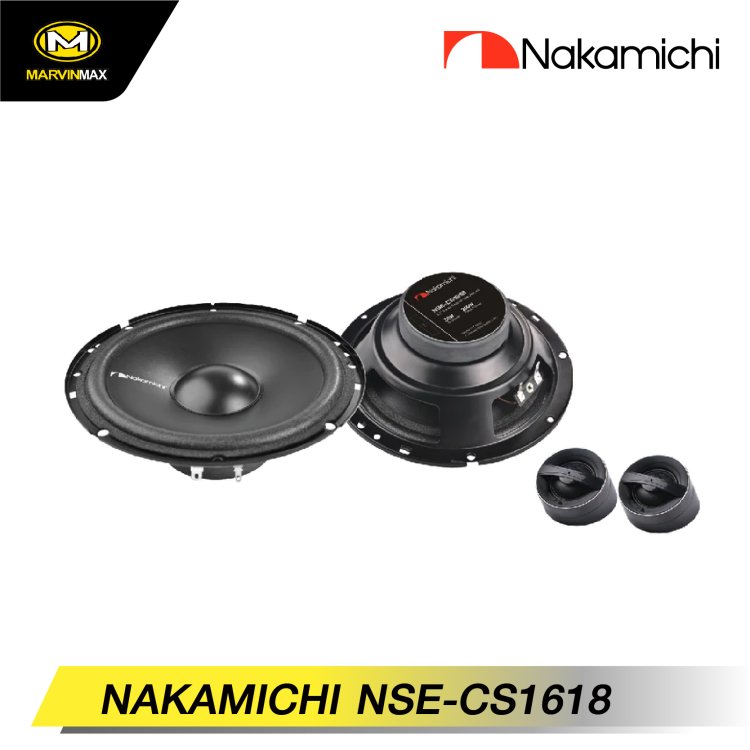

NAKAMICHI NSE-CS1618

SPECIFICATIONS
Type : Component Speakers
Size : 6.5'' (16.5cm) 2-way
Peak Power : 200W
N-power : 30W
Frequency Response : 71-19.5k Hz
Sensitivity(dB/W/m) : 90±3dB
Impedance : 4Ω
Mounting Depth : ＞2.2" （55mm)
Voice Coil : ASVΦ25.5mm
Magnet Mass : 6 Oz (170g)
Net Mass (1pr) : Approx. 1.1kg

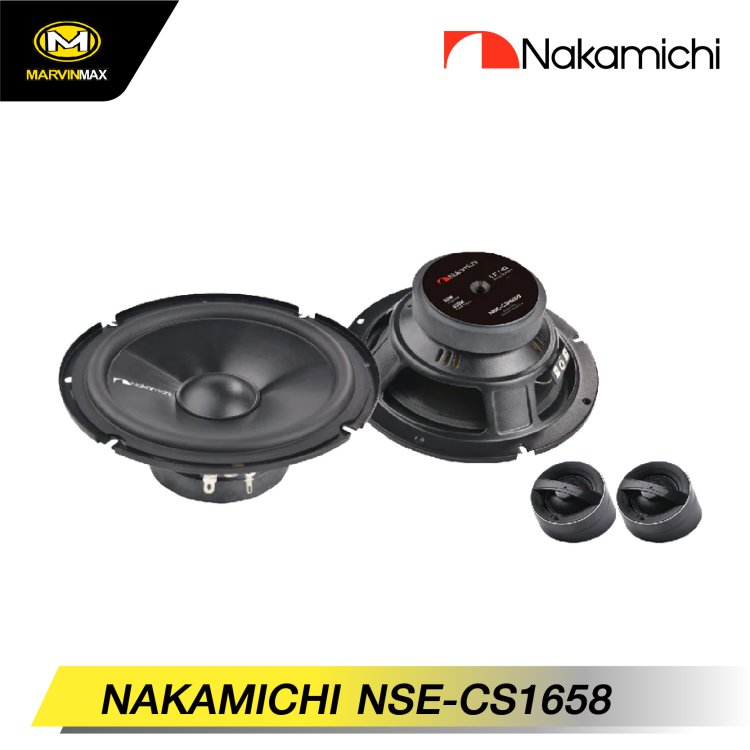

NAKAMICHI NSE-CS1658

SPECIFICATIONS
Type : 6.5” (16.5cm) 2-way
Mounting Depth : >2.4” (60mm)
N-Power : 50W
Peak Power : 350W
Sensitivity (dB/W/m) : 88±3dB
Frequency Response : 53-19.5kHz
Impedance : 4Ω
Voice Coil : ASV φ25.5mm
Magnet Mass : 10.6Oz (330g)
Net Weight : Approx. 1.5kg

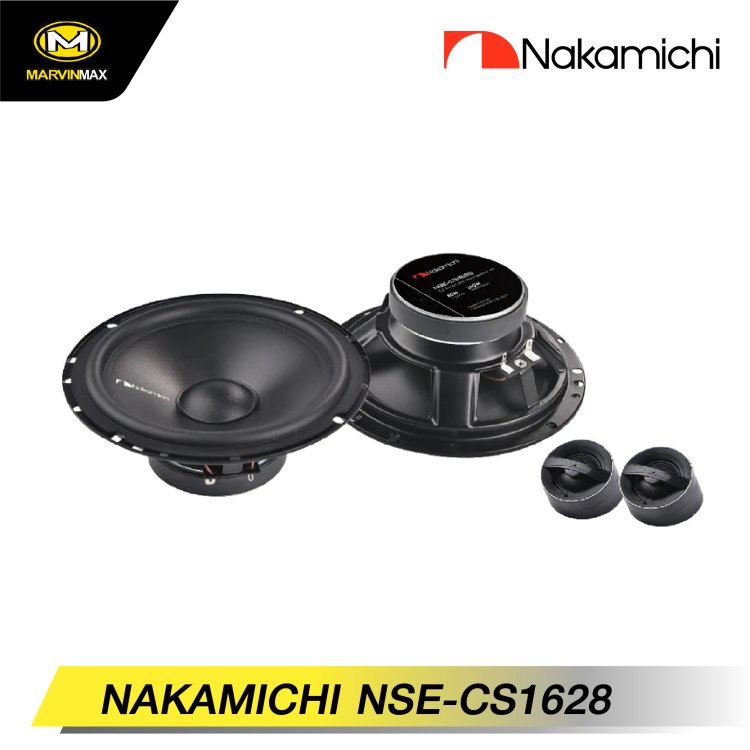

NAKAMICHI NSE-CS1628

SPECIFICATIONS
Type : 6.5” (16.5cm) 2-way
Mounting Depth : >2.3” (58mm)
N-Power : 40W
Peak Power : 260W
Sensitivity (dB/W/m) : 88±3dB
Frequency Response : 53-18.5kHz
Impedance : 4Ω
Voice Coil : ASV φ25.5mm
Magnet Mass : 8.8Oz (250g)
Net Weight : Approx. 1.4kg

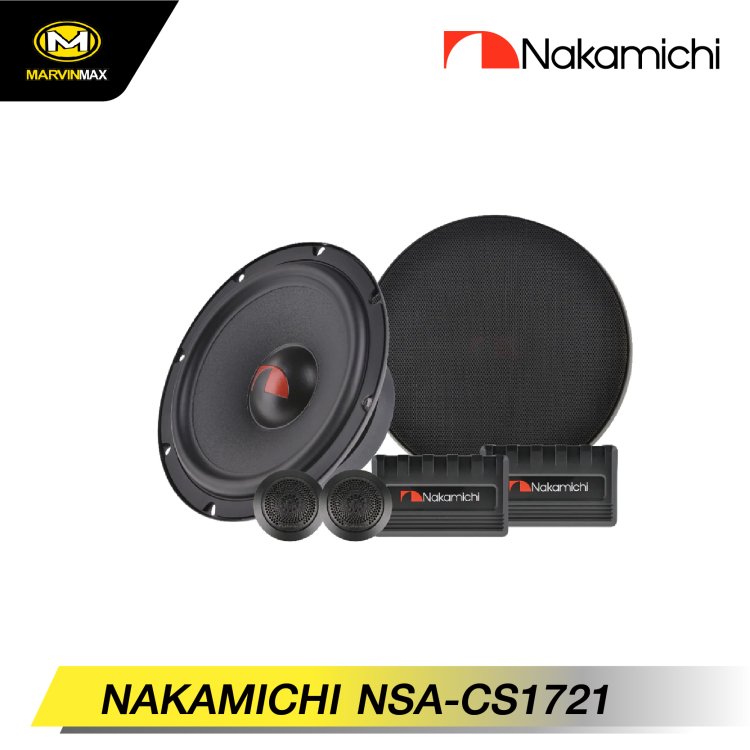

NAKAMICHI NSA-CS1721

SPECIFICATIONS
Type : 6.5” (16.5cm) 2-way
Mounting Depth : >2.48” (63mm)
N-Power : 70W
Peak Power : 460W
Sensitivity (dB/W/m) : 90±3dB
Frequency Response : 38-19.5kHz
Impedance : 4Ω
Voice Coil : ASV φ30.5mm
Magnet Mass : 12.1Oz (343g)
Net Weight : Approx. 2.3kg

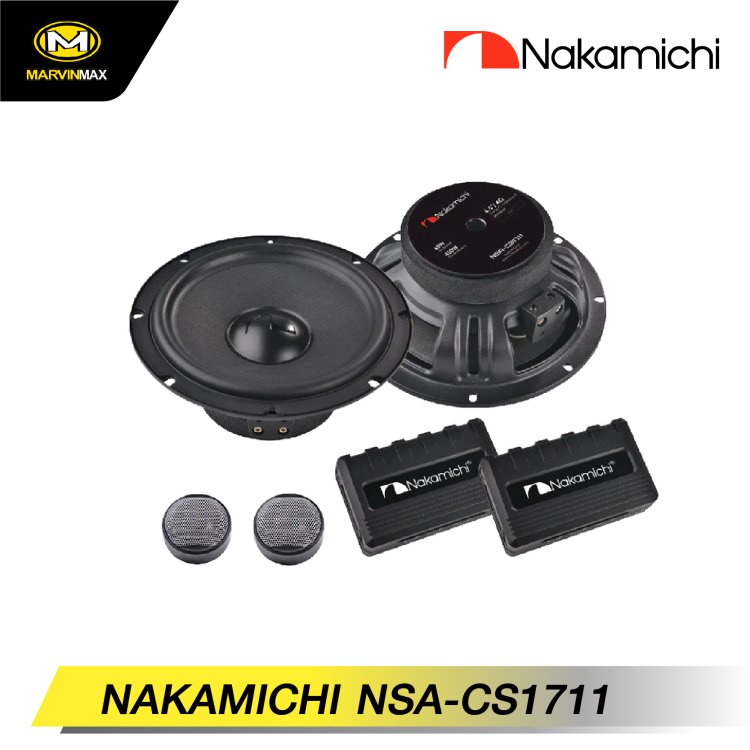

NAKAMICHI NSA-CS1711

SPECIFICATIONS
Type : 6.5” (16.5cm) 2-way
Mounting Depth : >2.4” (63mm)
N-Power : 65W
Peak Power : 450W
Sensitivity (dB/W/m) : 88±3dB
Frequency Response : 53-19.5kHz
Impedance : 4Ω
Voice Coil : KSV φ25.5mm
Magnet Mass : 12.1Oz (376g)
Net Weight : Approx. 2.1kg

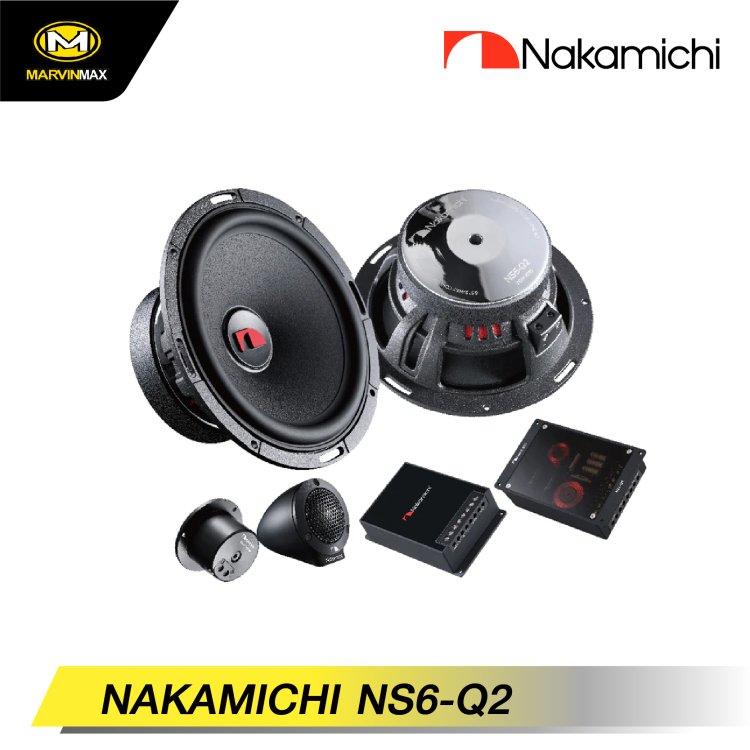

NAKAMICHI NS6-Q2

SPECIFICATIONS
Woofer / N-Power : 75W / Impedance : 4Ω / sensitivity : 88±3dB / Frequency Response : 50-20kHz / Voice Coil : KSV 35mm / Magnet Mass : 20Oz / Net Weight : 1530g / Depth : 75mm / Diameter : 140mm
Tweeter / N-Power : 20W / Impedance : 4Ω / sensitivity : 89dB / Frequency Response : 800-20kHz / Voice Coil : ASV 25mm / Magnet Mass : - / Net Weight : 102g / Depth : 30mm Diameter : 42mm

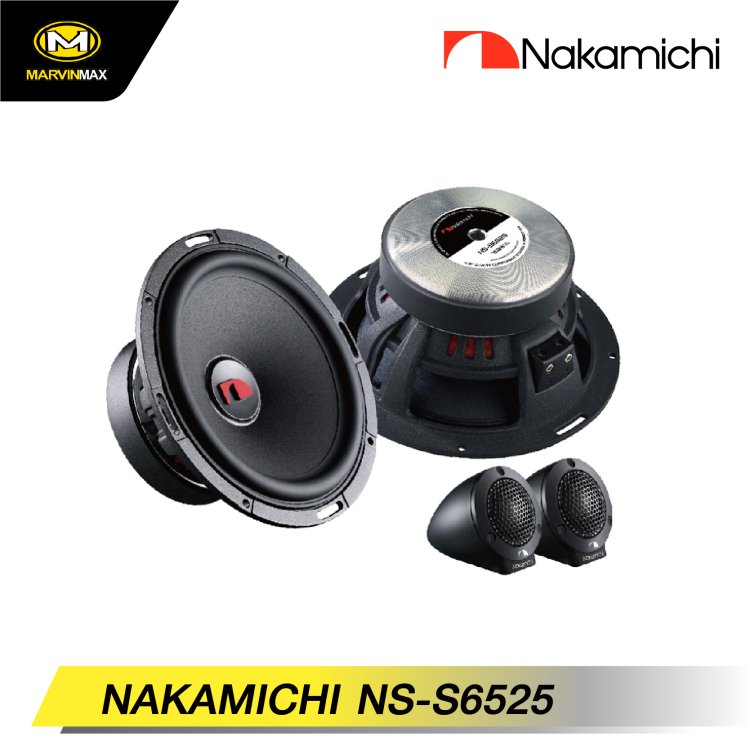

NAKAMICHI NS-S6525

SPECIFICATIONS
Woofer / N-Power : 75W/ Impedance : 4Ω / sensitivity : 88±3dB / Frequency Response : 50-20kHz / Voice Coil : KSV 35mm / Magnet Mass : 20Oz / Net Weight : 1541g / Depth : 75mm / Diameter : 140mm
Tweeter / N-Power : 20W / Impedance : 4Ω / sensitivity : 89dB / Frequency Response : 800-20kHz / Voice Coil : ASV 25mm / Magnet Mass : - / Net Weight : 102g / Depth : 30mm / Diameter : 42mm

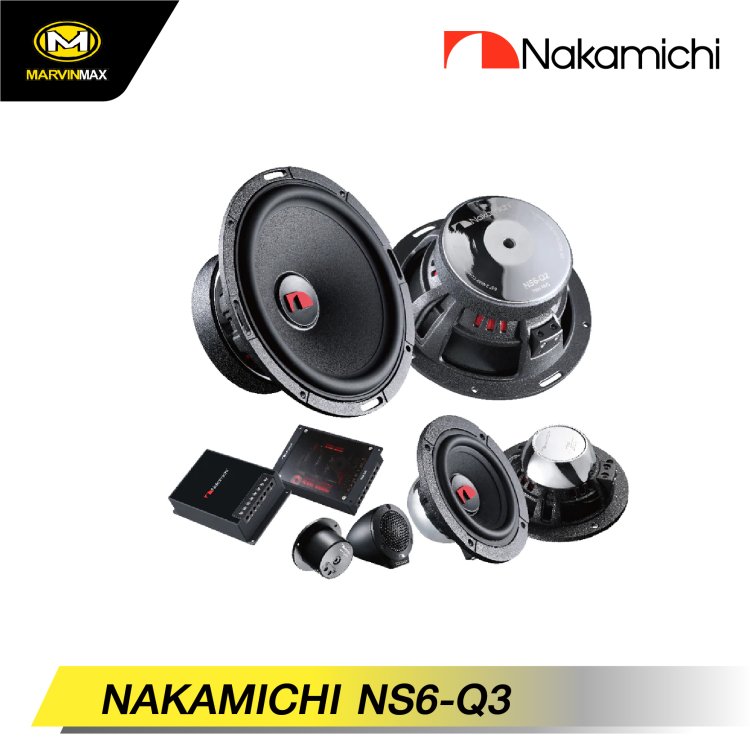

NAKAMICHI NS6-Q3

DESCRIPTION
The Q3 is Nakamichi's premium 3 Way Component Speaker system, featuring a rotating tweeter housing to suit each individual vehicles pillar installation before deciding on a more permanent housing.
Crafted with premium materials, the Q3 is specifically designed with each individual part in mind to provide a balanced response with pristine highs and robust mids.

Coaxial Speakers

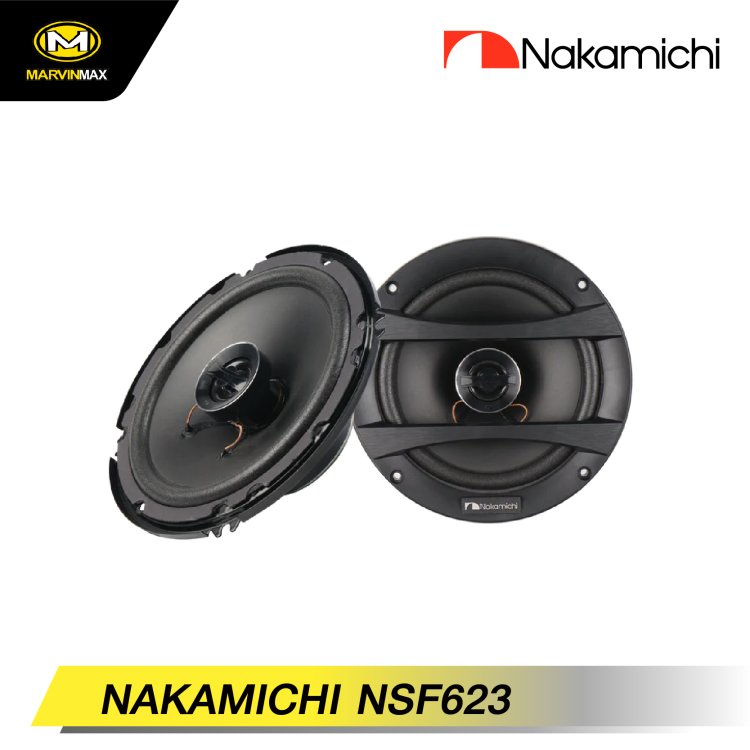

NAKAMICHI NSF623

SPECIFICATIONS
Type : Coaxial Speakers
Size : 6'' (15.2cm)/6.5'' (16.5cm) 2-way
Peak Power : 220W
N-Power : 35W
Frequency Response : 96-19.5k Hz
Sensitivity (dB/W/m) : 92±3dB
Impedance : 4Ω
Mounting Depth : ＞1.7" （44mm)
Voice Coil : ASVφ25.5mm
Magnet Mass : 5 Oz (142g)
Net Weight : Approx. 1.0kg

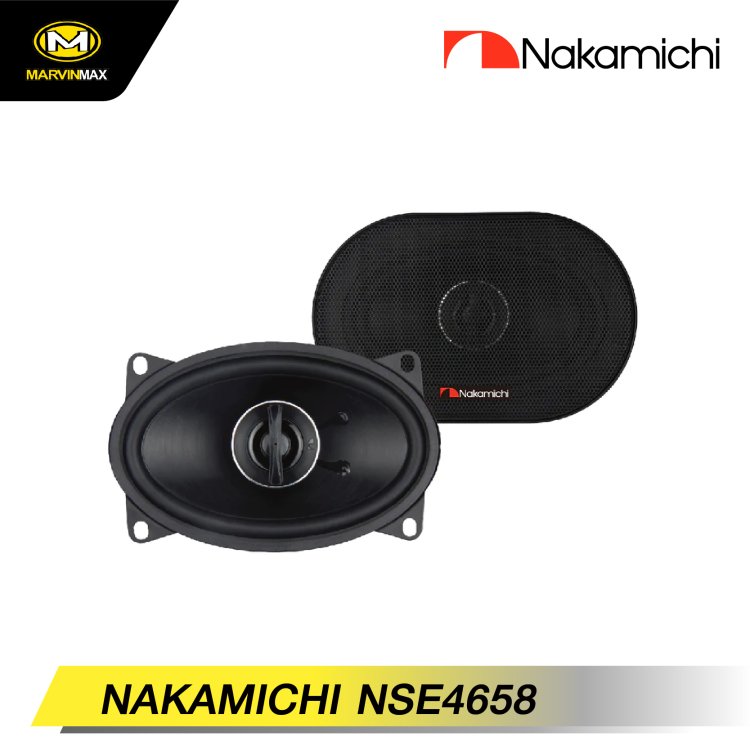

NAKAMICHI NSE4658

SPECIFICATIONS
Type : Coaxial Speakers
Size : 4×6” (98×153mm) 2-way
Peak Power : 150W
N-Power : 25W
Frequency Response : 102Hz-20k Hz
Sensitivity (dB/W/m) : 85±3dB
Impedance : 4Ω
Mounting Depth : >2” (51mm)
Voice Coil : ASVΦ25.5mm
Magnet Mass : 7.89 Oz (224g)
Net Weight : Approx. 1.1kg

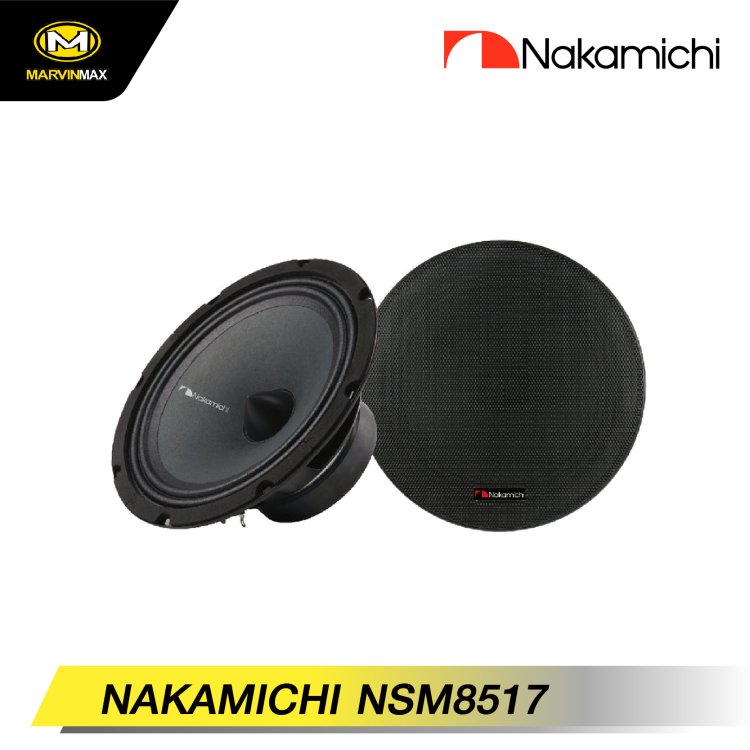

NAKAMICHI NSM8517

SPECIFICATIONS
Type: Mid Range Speakers
Size : 8'' (20.3cm)
Peak Power : 400W
N-Power : 60W
Frequency Response : 85-12k Hz
Sensitivity (dB/W/m) : 93±3dB
Impedance : 4Ω
Mounting Depth : ＞3.3" （84mm)
Voice Coil : KSVΦ30.5mm
Magnet Mass : 21.6 Oz (613g)
Net Weight(1pr) : Approx. 2.7kg

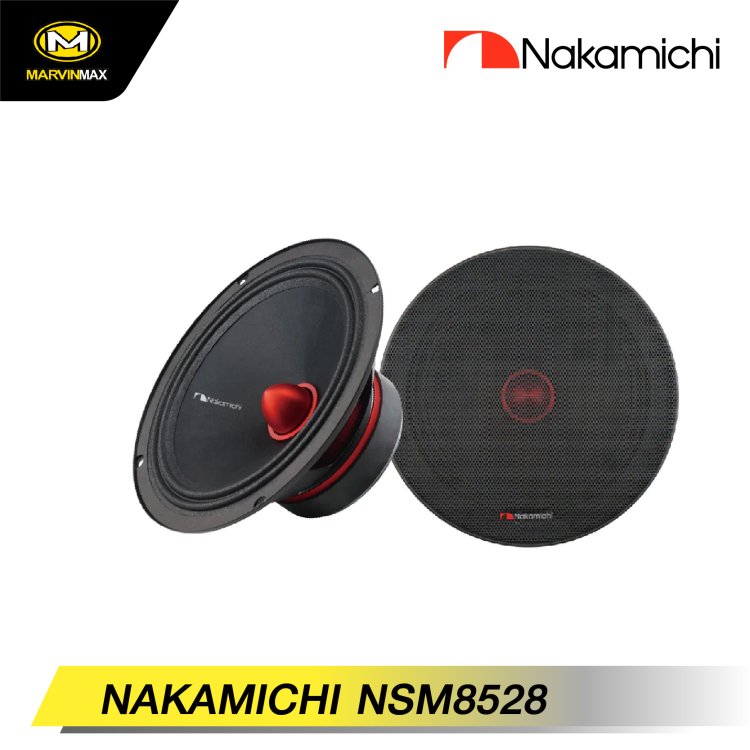

NAKAMICHI NSM8528

SPECIFICATIONS
Type : Mid Range Speakers
Size : 8'' (203cm)
Peak Power : 400W
N-Power : 60W
Frequency Response : 87-15k Hz
Sensitivity (dB/W/m) : 95±3dB
Impedance : 4Ω
Mounting Depth : ＞3.35" （85mm)
Voice Coil : KSVΦ35.5mm
Magnet Mass : 23.2 Oz (656g)
Net Weight : Approx. 3.3kg

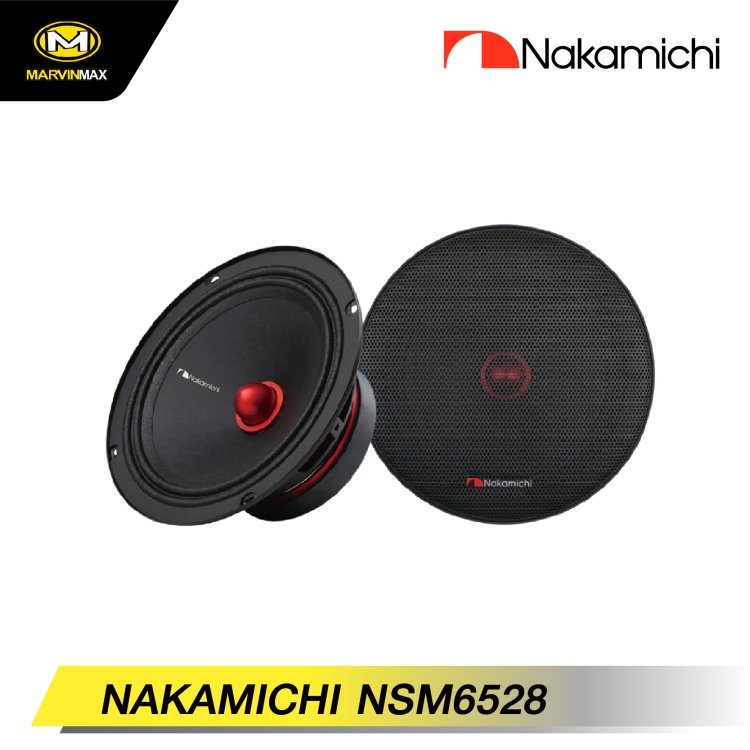

NAKAMICHI NSM6528

SPECIFICATIONS
Type : Mid Range Speakers
Size : 6.5'' (16.5cm)
Peak Power : 350W
N-Power : 50W
Frequency Response : 115-15k Hz
Sensitivity (dB/W/m) : 92±3dB
Impedance : 4Ω
Mounting Depth : ＞2.65" （65mm)
Voice Coil : KSVΦ25.5mm
Magnet Mass : 15.2 Oz (431g)
Net Weight(1pr) : Approx. 2.1kg

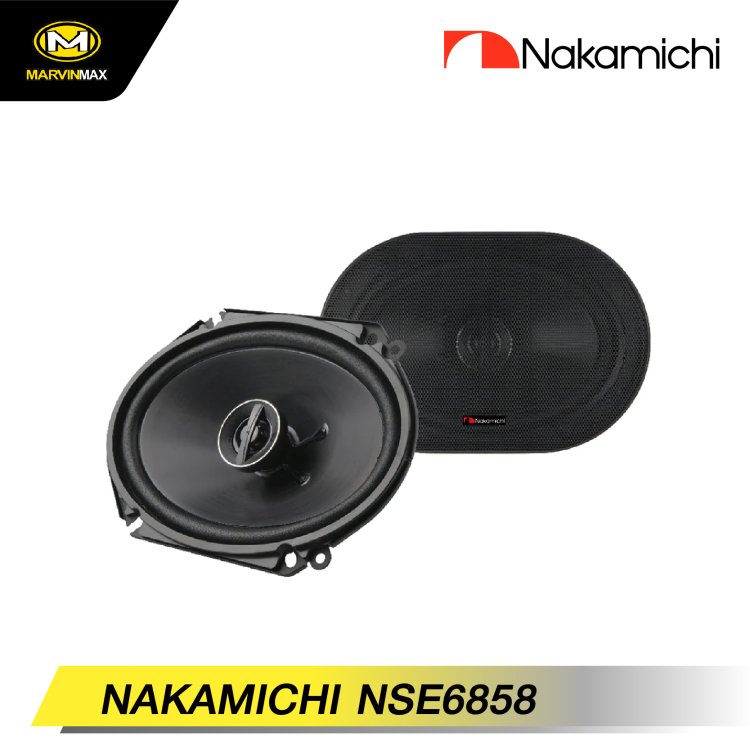

NAKAMICHI NSE6858

SPECIFICATIONS
Type : Coaxial Speakers
Size : 6×8” (152×203mm) 2-way
N-Power : 50W
Peak Power : 350W
Frequency Response : 50-4kHz
Sensitivity (dB/W/m) : 88±3dB
Impedance : 4Ω
Mounting Depth : >2.4” (60mm)
Voice Coil : KSV Φ25.5mm
Magnet Mass : 8.75Oz（248g）
Net Mass（1pr）：Approx.1.4kg

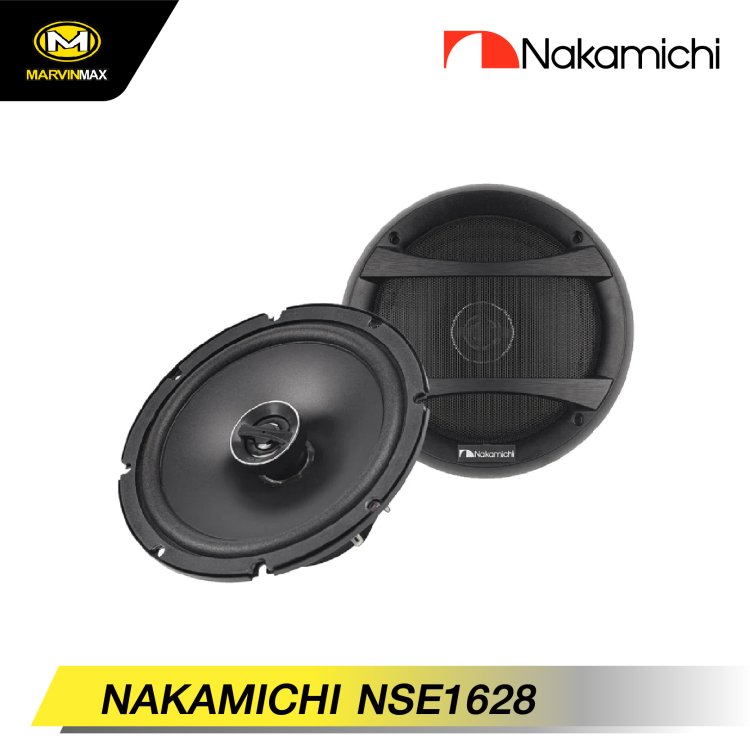

NAKAMICHI NSE1628

SPECIFICATIONS
Type : Coaxial Speakers
Size : 6.5” (16.6cm) 2-way
Peak Power : 250W
N-Power : 35W
Frequency Response : 60-20k Hz
Sensitivity (dB/W/m) : 87±3dB
Impedance : 4Ω
Mounting Depth : >2.4” (61mm)
Voice Coil : ASVΦ25.5mm
Magnet Mass : 10 Oz (284g)
Net Weight : Approx. 1.4kg

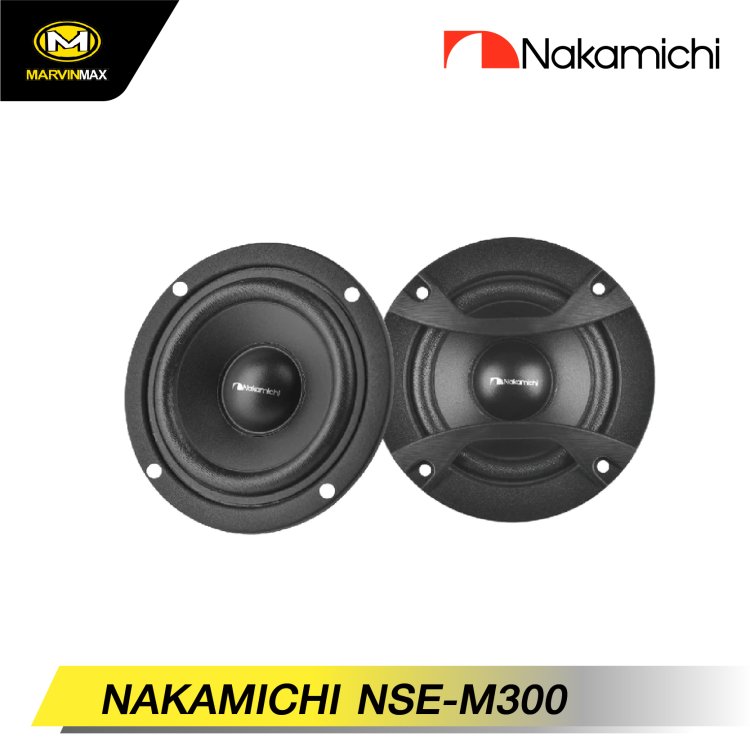

NAKAMICHI NSE-M300

SPECIFICATIONS
Type : Coaxial Speakers
Size : 3'' (87cm)
Peak Power : 75W
N-Power : 15W
Frequency Response : 80-16k Hz
Sensitivity (dB/W/m) : 82±3dB
Impedance : 4Ω
Mounting Depth : ＞1.3" （33.5mm)
Voice Coil : ASVφ20.4mm
Magnet Mass : 3 Oz (85g)
Net Weight : Approx. 0.6kg

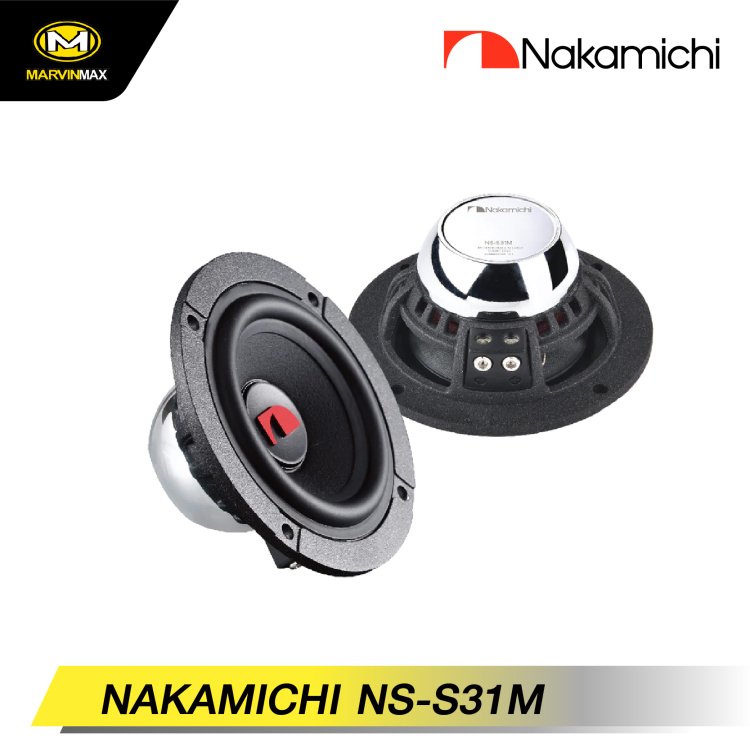

NAKAMICHI NS-S31M

WHAT'S IN THE BOX
MID-Range x 2pcs
MID-Range’s Grille Net+Frame × 2pcs
MID-Range’s Back Cover × 2pcs
MID-Range’s Label × 2pcs
2.5mm “L” Type Wrench × 1pc
“8” Type Mounting Bracket × 2pcs
Mounting Screw M4x25mm (mid-range) × 8pcs
MID-Range’s 3M Sticker 91x41.5mmx1.5T × 2pcs
MID-Range’s 3M Sticker 91x41.5mmx4.5T × 2pcs

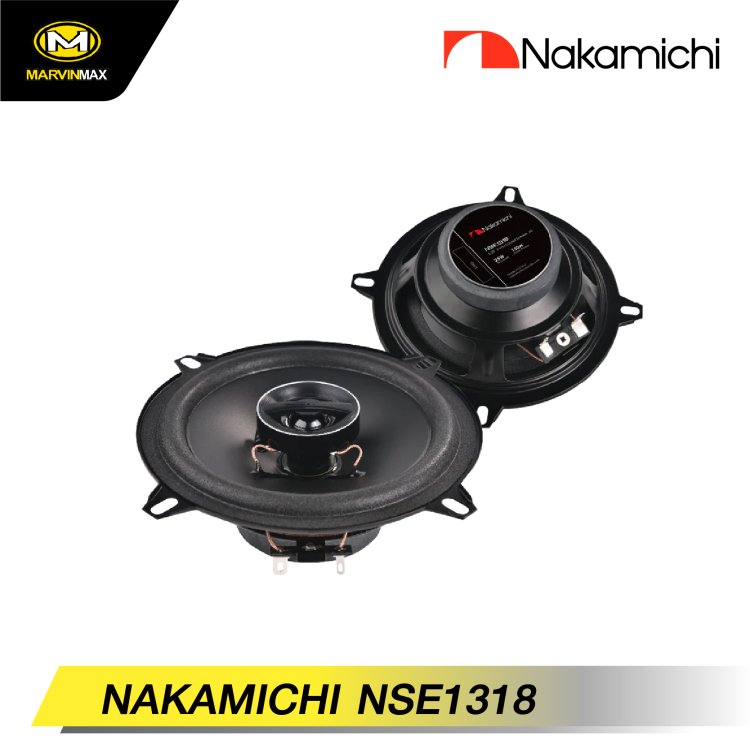

NAKAMICHI NSE1318

SPECIFICATIONS
Type : Coaxial Speakers
Size :5.25” (13.3cm) 2-way
Peak Power : 150W
N-Power : 25W
Frequency Response : 82-19.5kHZ
Sensitivity (dB/W/m) : 87±3dB
Impedance : 4Ω
Mounting Depth : >1.6” (40.6mm)
Voice Coil : ASVΦ 20.4mm
Magnet Mass : 4Oz (113g)
Net Weight : Approx. 0.6kg

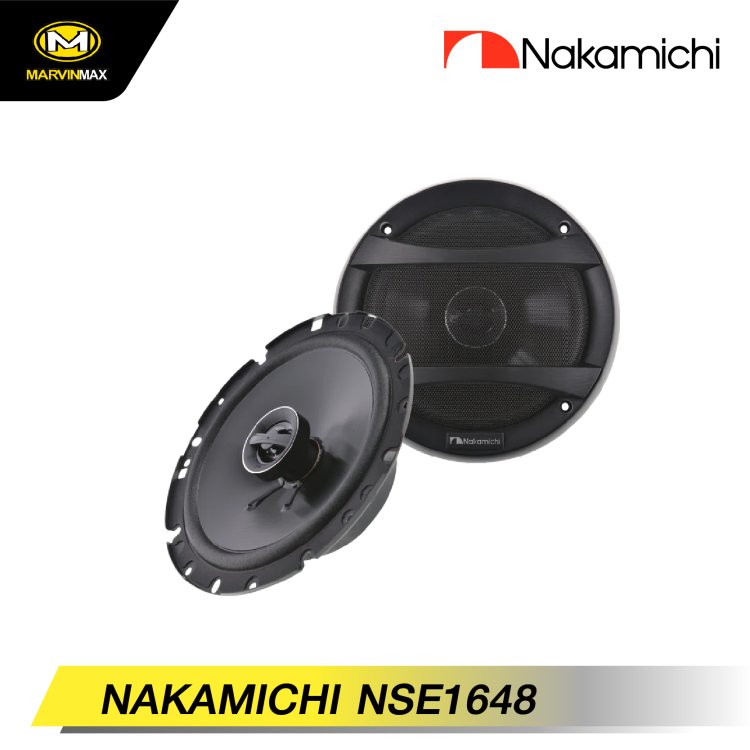

NAKAMICHI NSE1648

SPECIFICATIONS
Type : Coaxial Speakers
Size : 6.5"(165mm) 2-way
Peak Power : 260W
N-Power : 40W
Frequency Response : 95-20kHZ
Sensitivity (dB/W/m) : 89±3dB
Impedance : 4Ω
Mounting Depth : >1.81” (46mm)
Voice Coil : KSVφ 25.5mm
Magnet Mass : 8.75Oz (248g)
Net Weight : Approx. 1.2kg

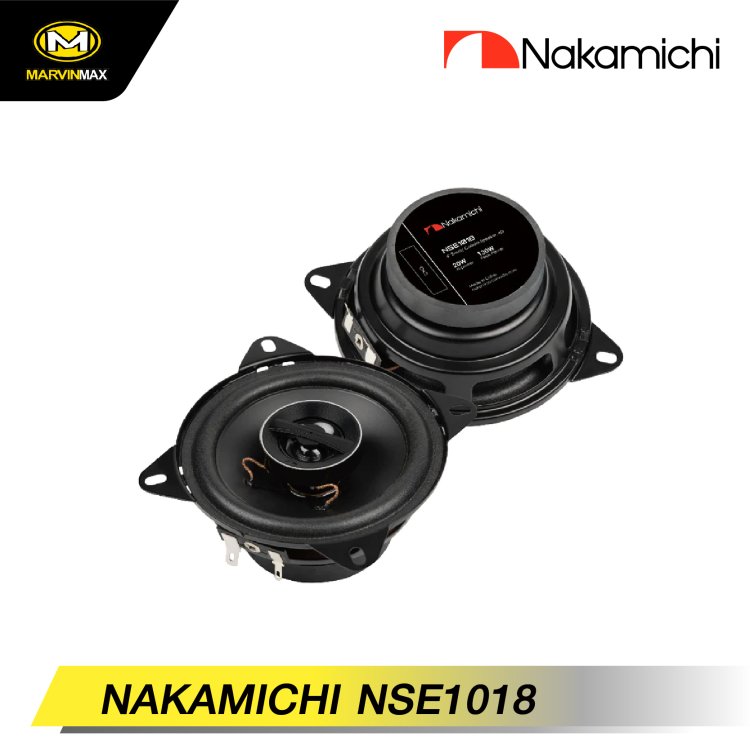

NAKAMICHI NSE1018

SPECIFICATIONS
Type : Coaxial Speakers
Size : 4” (102mm) 2-way
Peak Power : 130W
N-Power : 20W
Frequency Response : 110-19.5k Hz
Sensitivity (dB/W/m) : 88±3dB
Impedance : 4Ω
Mounting Depth : >1.7” (43mm)
Voice Coil : ASV Φ20.4mm
Magnet Mass : 4Oz (113g)
Net Weight : Approx. 0.6kg

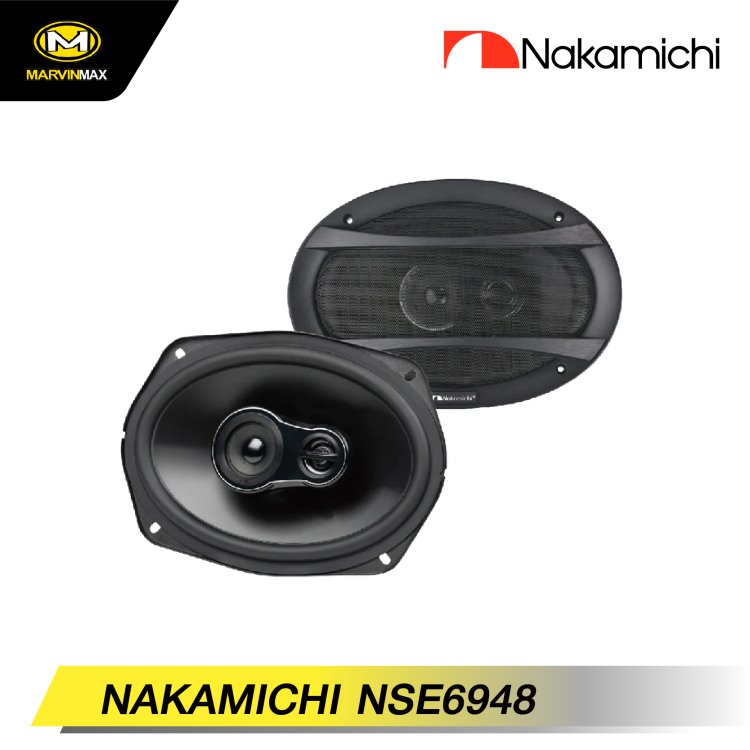

NAKAMICHI NSE6948

SPECIFICATIONS
Type : Coaxial Speakers
Size : 6x9'' (15.2x22.9cm) 3-way
Peak Power : 500W
N-Power : 75W
Frequency Response : 60-20k Hz
Sensitivity (dB/W/m) : 90±3dB
Impedance : 4Ω
Mounting Depth : ＞3.1" （78mm)
Voice Coil : ASVΦ25.5mm
Magnet Mass : 18 Oz (510g)
Net Weight : Approx. 3.1kg

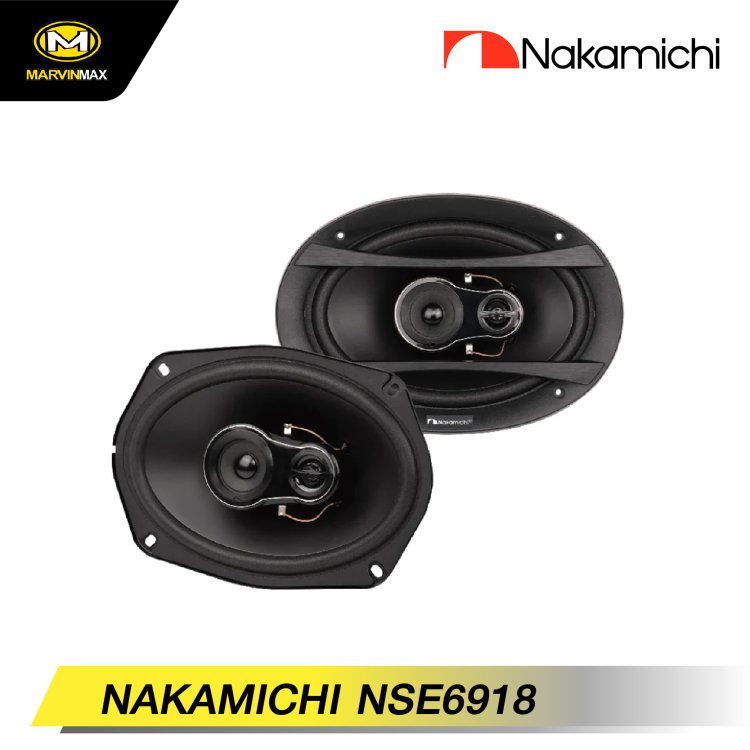

NAKAMICHI NSE6918

SPECIFICATIONS
Type : Coaxial Speakers
Size : 6x9'' (15.2x22.9cm) 3-way
Peak Power : 260W
N-Power : 40W
Frequency Response : 55-19.5k Hz
Sensitivity (dB/W/m) : 90±3dB
Impedance : 4Ω
Mounting Depth : ＞2.7" （69mm)
Voice Coil : ASVΦ25.5mm
Magnet Mass : 10 Oz (283g)
Net Weight : Approx. 1.8kg

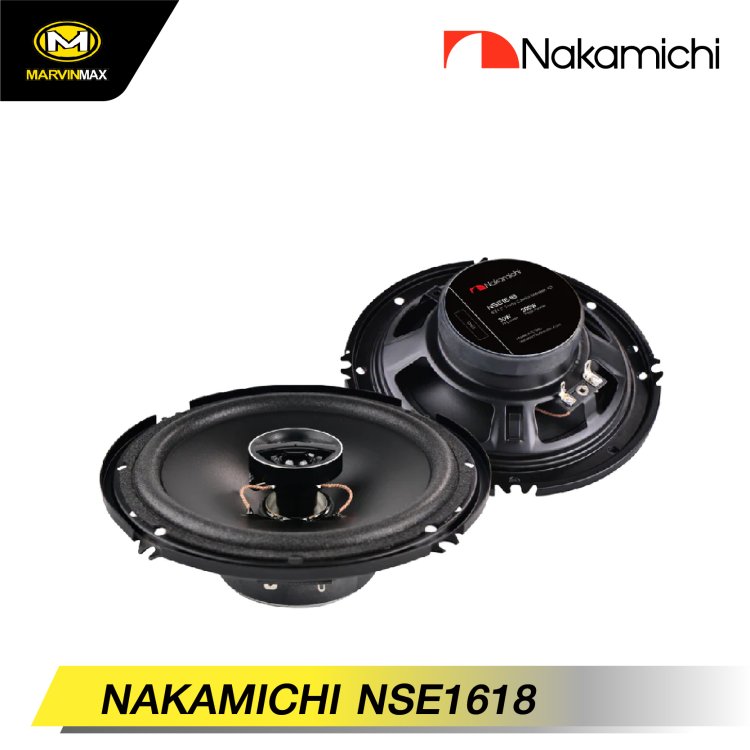

NAKAMICHI NSE1618

SPECIFICATIONS
Type : Coaxial Speakers
Size : 6'' (15.2cm)/6.5'' (16.5cm) 2-way
Peak Power : 200W
N-Power : 30W
Frequency Response : 96-19.5k Hz
Sensitivity (dB/W/m) : 92±3dB
Impedance : 4Ω
Mounting Depth : ＞1.7" （44mm)
Voice Coil : ASVφ25.5mm
Magnet Mass : 5 Oz (142g)
Net Weight : Approx. 1.0kg

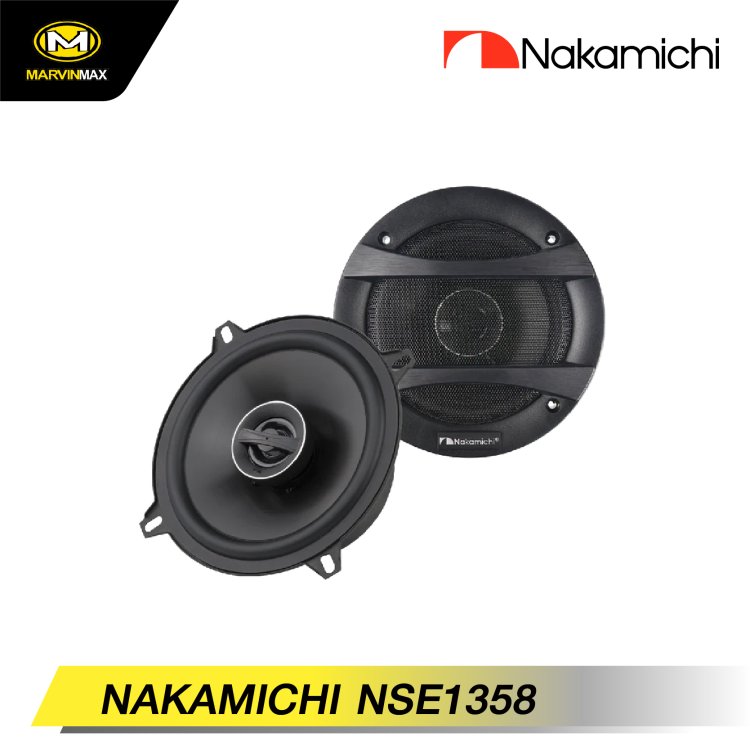

NAKAMICHI NSE1358

SPECIFICATIONS
Type : Coaxial Speakers
Size : 5.25” (13.3cm) 2-way
Peak Power : 300W
N-Power : 45W
Frequency Response : 98-19.5kHz
Sensitivity (dB/W/m) : 89±3dB
Impedance : 4Ω
Mounting Depth : >1.9” (47mm)
Voice Coil : ASV φ25.5mm
Magnet Mass : 9Oz (255g)
Net Weight : Approx. 1.3kg

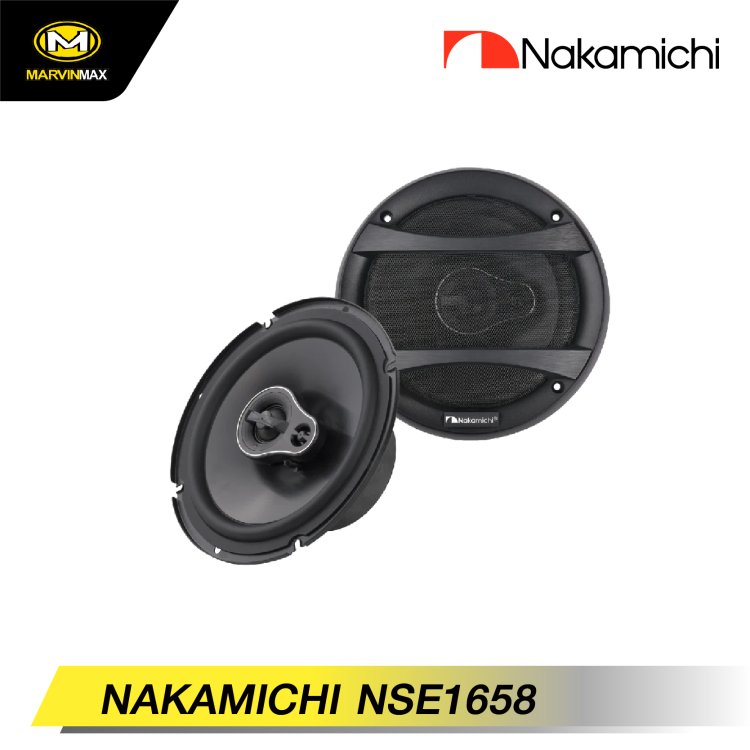

NAKAMICHI NSE1658

SPECIFICATIONS
Type : 6.5” (16.5cm) 3-way
Mounting Depth : >2.4” (60mm)
N-Power : 55W
Peak Power : 360W
Sensitivity (dB/W/m) : 89±3dB
Frequency Response : 50-21kHz
Impedance : 4Ω
Voice Coil : ASV φ25.5mm
Magnet Mass : 10Oz (284g)
Net Weight : Approx. 1.6kg

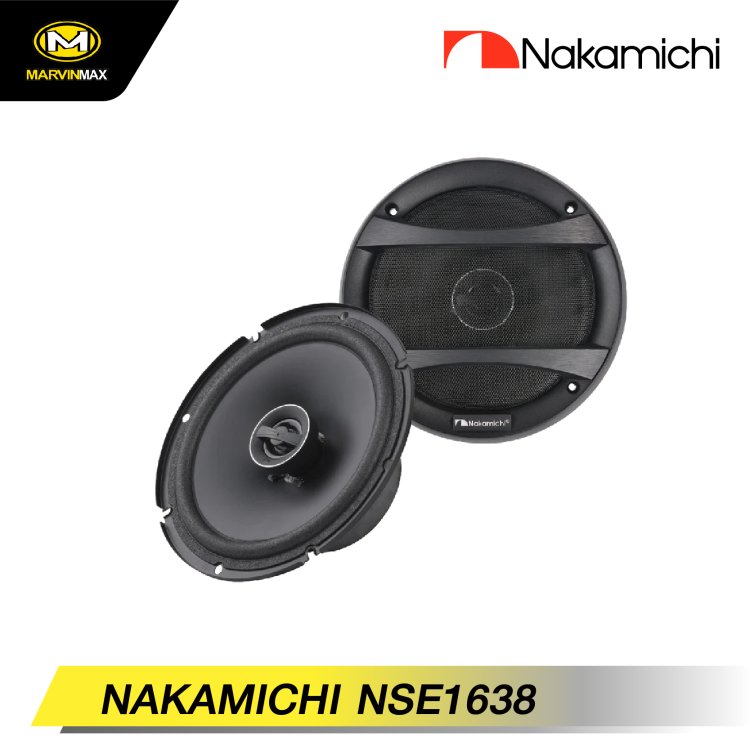

NAKAMICHI NSE1638

SPECIFICATIONS
Type : 6.5” (16.5cm) 2-way
Mounting Depth : >2.4” (60mm)
N-Power : 40W
Peak Power : 260W
Sensitivity (dB/W/m) : 87±3dB
Frequency Response : 60-20kHz
Impedance : 4Ω
Voice Coil : ASV φ25.5mm
Magnet Mass : 10Oz (284g)
Net Weight : Approx. 1.5kg

NAKAMICHI NSE1058

SPECIFICATIONS
Type : Coaxial Speakers
Size : 4” (10.2cm) 2-way
Peak Power : 260W
Frequency Response : 109-19.5kHz
Sensitivity (dB/W/m) : 88±3dB
Impedance : 4Ω
Mounting Depth : >2.2” (55mm)
Voice Coil : ASV Φ25.5mm
Magnet Mass : 9Oz (255g)
Net Weight : Approx. 1.3kg

NAKAMICHI NSE1638

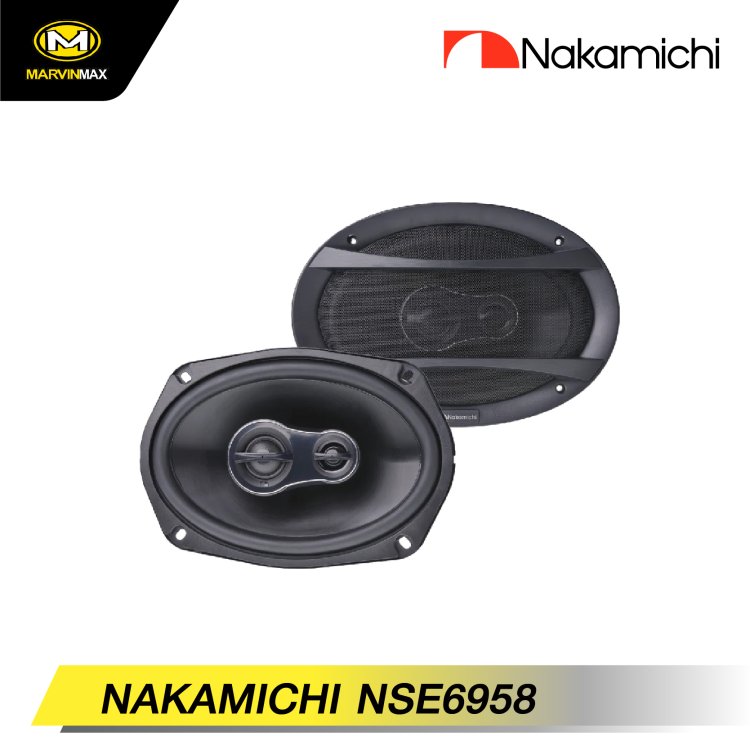

NAKAMICHI NSE6958

SPECIFICATIONS
Type : 6x9” (15.2x22.9cm) 3-way
Mounting Depth : >3.35” (85mm)
N-Power : 75W
Peak Power : 500W
Sensitivity (dB/W/m) : 89±3dB
Frequency Response : 40-20kHz
Impedance : 4Ω
Voice Coil : ASV φ25.5mm
Magnet Mass : 20.35 Oz (577g)
Net Weight : Approx. 2.6kg

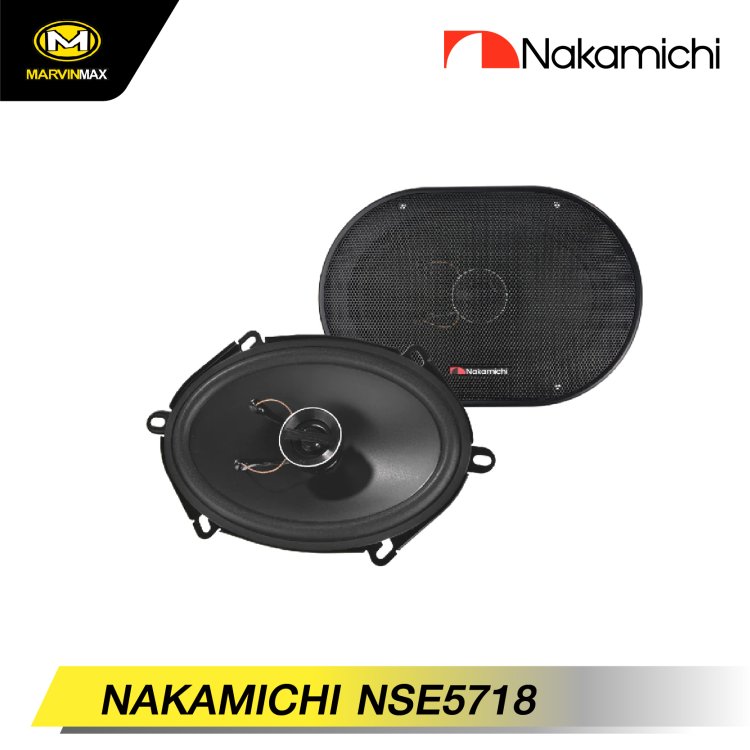

NAKAMICHI NSE5718

SPECIFICATIONS
Speaker Type : 5x7” (12.6x18.3cm) 2-way
Mounting Depth : >2” (50mm)
N-Power : 30W
Peak Power : 200W
Sensitivity (dB/W/m) : 86±3dB
Frequency Response : 70-3.8kHz
Impedance : 4Ω
Voice Coil : ASV φ25.5mm
Magnet Mass : 6Oz (170g)
Net Weight : Approx. 1.3kg

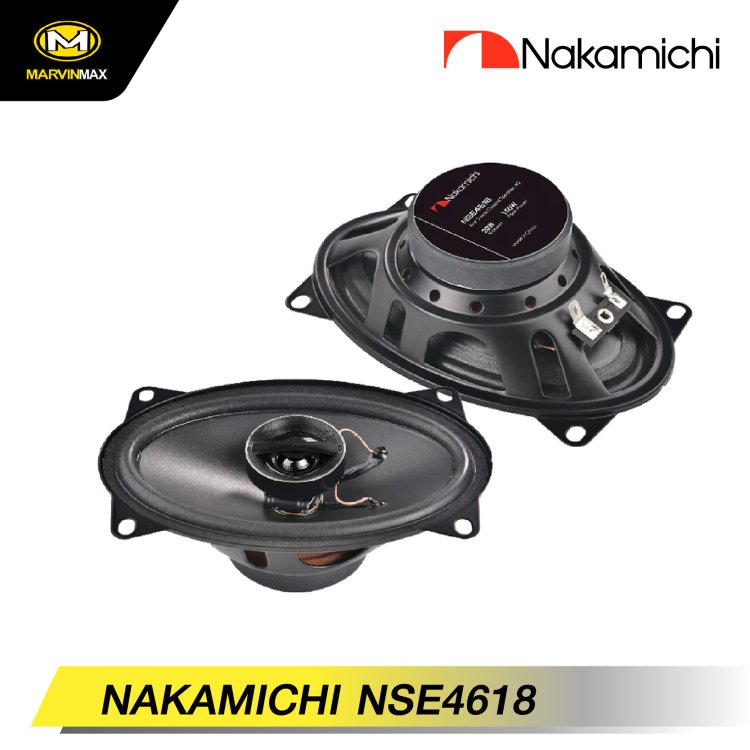

NAKAMICHI NSE4618

SPECIFICATIONS
Type : 4x6” (8.8x14.4cm) 2-way
Mounting Depth : >1.8” (45mm)
N-Power : 20W
Peak Power : 150W
Sensitivity (dB/W/m) : 90±3dB
Net Weight : Approx. 0.78kg

Underseat Active Subwoofers

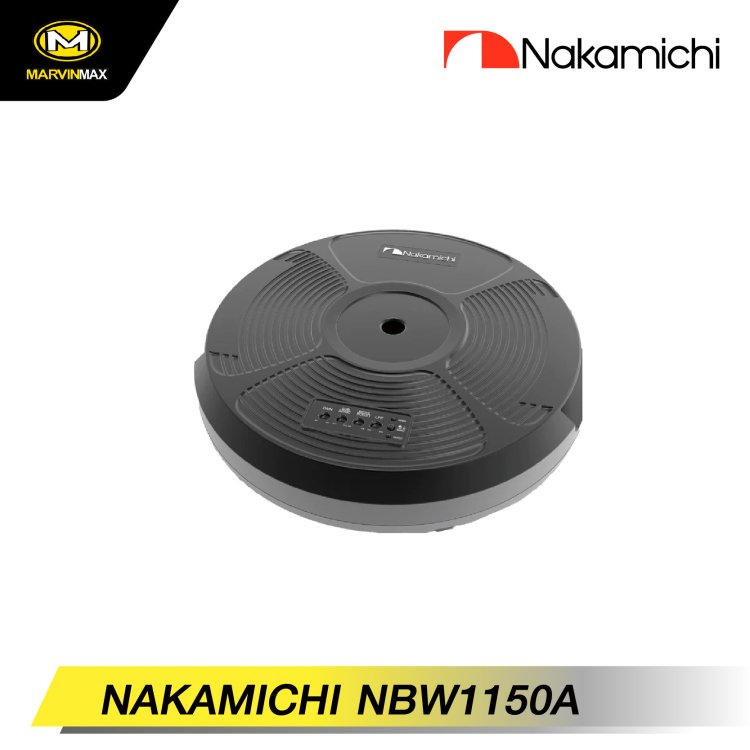

NAKAMICHI NBW1150A

SPECIFICATIONS
Supply Voltage : 14.4V DC
N-Power : 120W
Peak Power : 1000W
Enclosure : Sealed
Impedance : 4Ω
Frequency Response : 20Hz -180Hz
Variable LP Frequencies : 50Hz -180Hz
Sensitivity : 92dB
Input Level : Speaker And RCA Level Inputs
Fuse : 20A
Phase : 0°/ 180°
Speaker Size : 11″ Woofer
Net Weight : Approx. 7.0kg

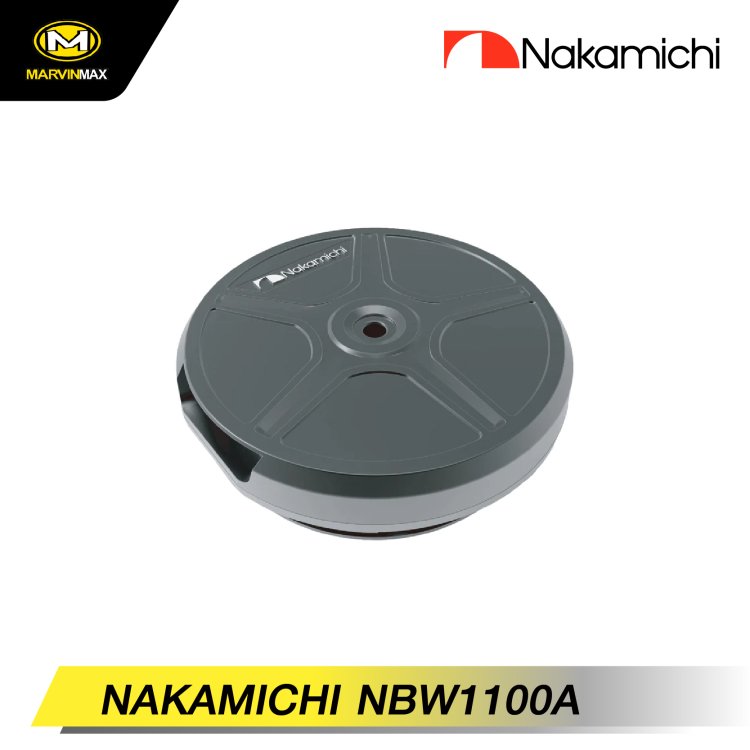

NAKAMICHI NBW1100A

SPECIFICATIONS
Supply Voltage : 14.4V DC
N-Power : 120W
Peak Power : 1000W
Enclosure : Sealed
Impedance : 4Ω
Frequency Response : 20Hz -150Hz
Variable Crossover Frequencies : 50Hz -150Hz
Sensitivity : 92dB
Input Level : Speaker And RCA Level Inputs
Fuse : 25A
Phase : 0°/ 180°
Speaker Size : 11″ Woofer
Net Weight : Approx. 7.5kg

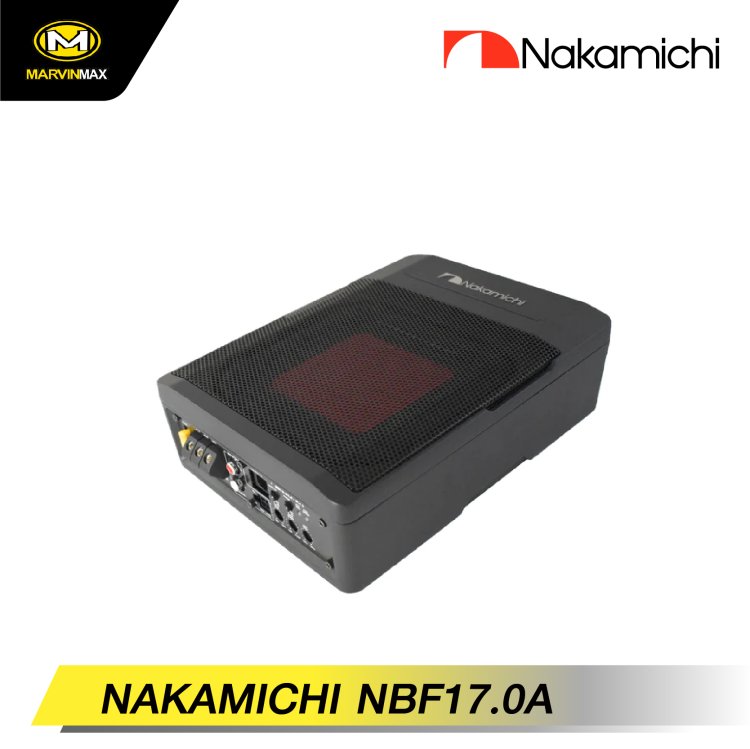

NAKAMICHI NBF17.0A

SPECIFICATIONS
N-Power : 100W
Peak Power : 650W
Distortion (THD) : ＜0.5%
Signal To Noise Ratio : ＞90dB
Frequency Response : 20Hz-180Hz
Input Sensitivity, High Level : 1.0V
Input Sensitivity, Low Level : 300mV
Low Pass Filter : 50Hz-180Hz
Bass Boost : 0 to -12dB
Fuse Rating : 20A（Fixed）
Subwoofer : 6.5”, 4 ohm
Unit Dimension : 245x180x72mm

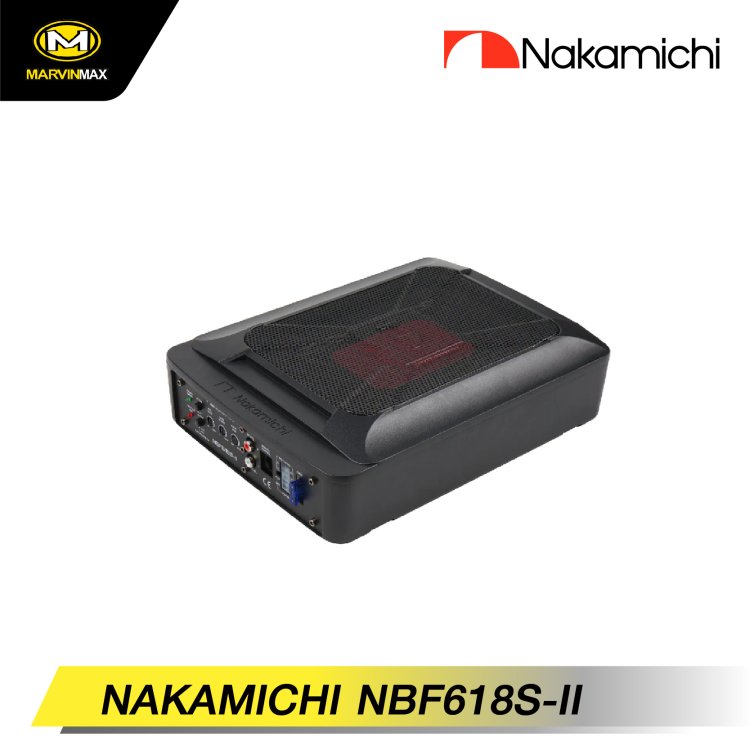

NAKAMICHI NBF618S-II

SPECIFICATIONS
N-Power : 100W
Peak Power : 650W
Distortion (THD) : ＜0.2%
Signal To Noise Ratio : ＞90dB
Frequency Response : 20Hz-150Hz
Input Sensitivity, High Level : 0.5V
Input Sensitivity, Low Level : 110mV
Low Pass Filter : 50Hz-180Hz
Bass Boost : 0 to -12dB
Fuse Rating : 20A（Fixed）
Subwoofer : 6×9”, 2 ohm
Unit Dimension : 290x210x73mm

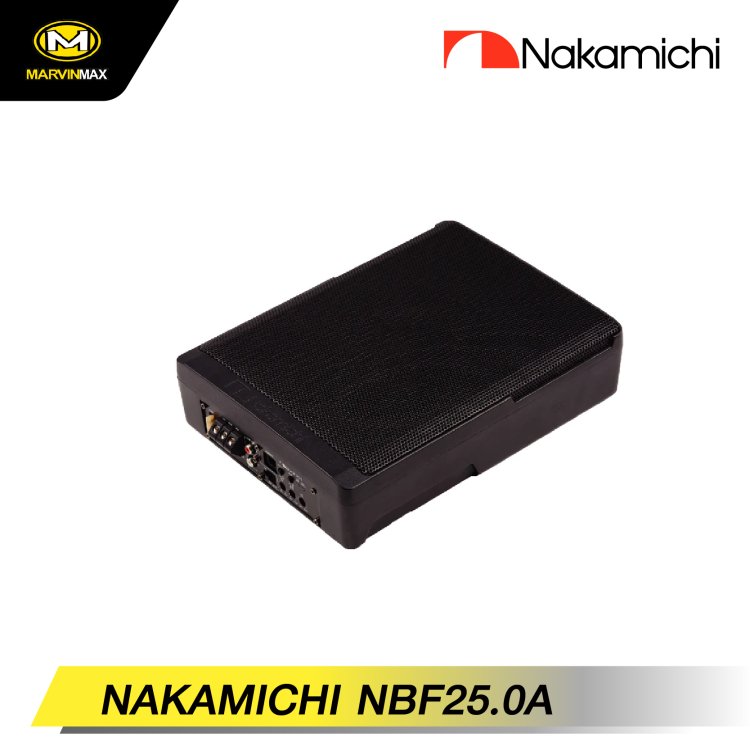

NAKAMICHI NBF25.0A

SPECIFICATIONS
N-Power : 150W
Peak Power : 1000W
Distortion (THD) : ＜0.5%
Signal To Noise Ratio : ＞90dB
Frequency Response : 20Hz-180Hz
Input Sensitivity, High Level : 1.0V
Input Sensitivity, Low Level : 300mV
Low Pass Filter : 50Hz-180Hz
Bass Boost : 0 to -12dB
Fuse Rating : 25A
Subwoofer : 10 inch, 4 ohm
Unit Dimension : 300x225x72mm

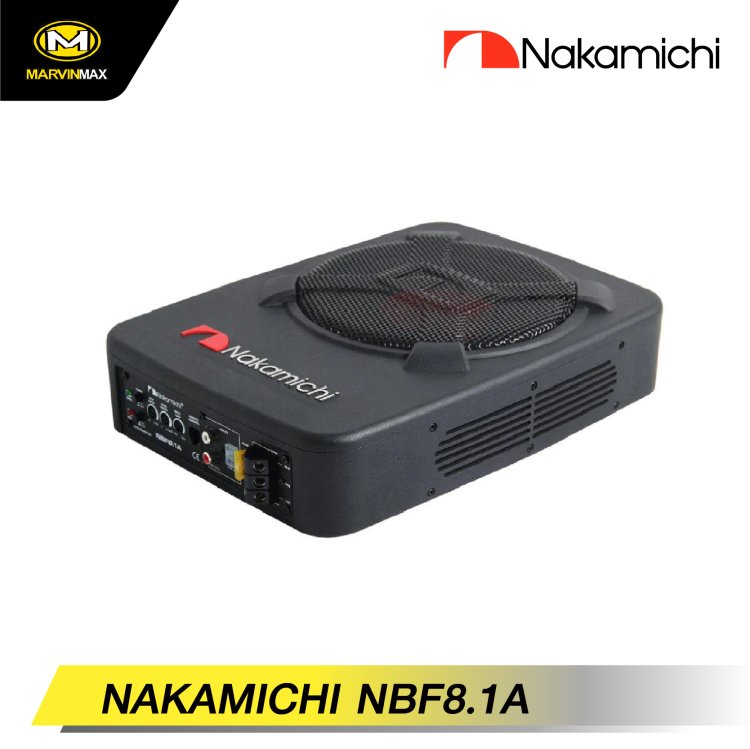

NAKAMICHI NBF8.1A

SPECIFICATIONS
N-Power : 150W
Peak Power : 1500W
Distortion (THD) : ＜0.4%
Signal To Noise Ratio : ＞90dB
Frequency Response : 20Hz-150Hz
Input Sensitivity, High Level : 4V
Input Sensitivity, Low Level : 110mV
Low Pass Filter : 50Hz-150Hz
Bass Boost : 0 to +12dB
Fuse Rating : 20A
Subwoofer : 8inch, 2 ohm
Unit Dimension : 335x240x79mm

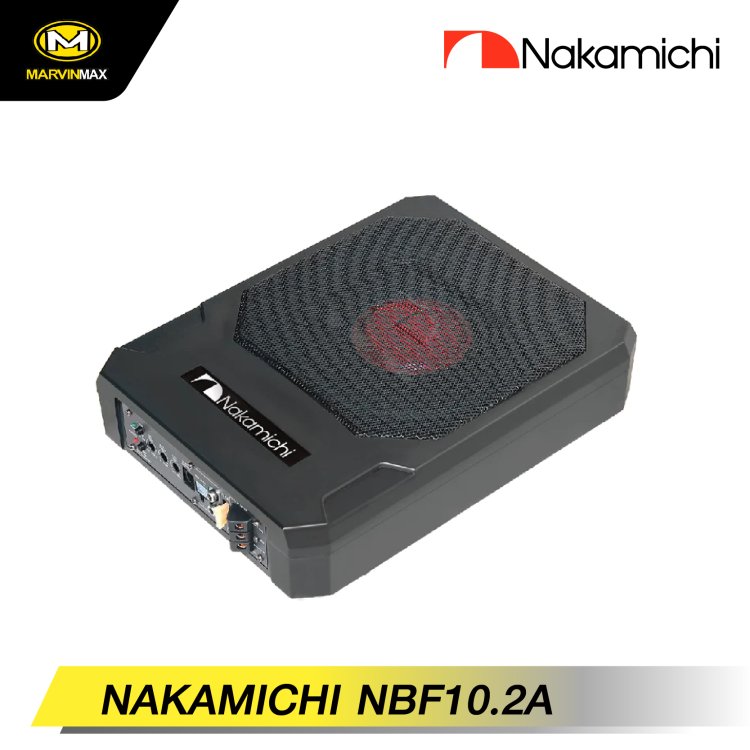

NAKAMICHI NBF10.2A

SPECIFICATIONS
N-Power : 150W
Peak Power : 900W
Distortion (THD) : ≤0.2%
Signal To Noise Ratio : ≥90dB
Frequency Response : 20Hz-150Hz
Input Sensitivity, High Level : 0.5V
Input Sensitivity, Low Level : 110mV
Low Pass Filter : 50Hz-150Hz
Bass Boost : 0 to +12dB
Fuse Rating : 20A
Subwoofer : 10 inch, 2 ohm
Unit Dimension : 345x261x71mm

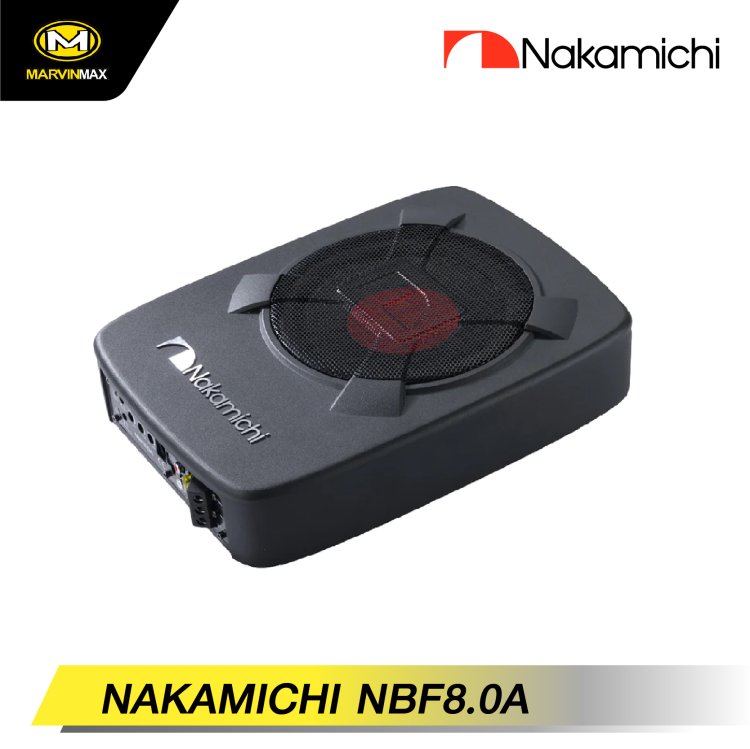

NAKAMICHI NBF8.0A

SPECIFICATIONS
N-Power : 100W
Peak Power : 1500W
Distortion(THD) : <0.2%
Signal To Noise Ratio : >90dB
Frequency Response : 20Hz -150Hz
Input Sensitivity,High Level : 1.0V
Input Sensitivity,Low Level : 300mV
Low Pass Flter : 50Hz - 150Hz
Bass Boost : 0dB + 12dB
Subsonic Filter : 20Hz(Fixed)
Fuse Rating : 20A
Subwoofer : 8 inch, 4ohm
Net Weight : Approx. 4.4kg
Unit Dimension(LxWxH) : 345x250x77mm

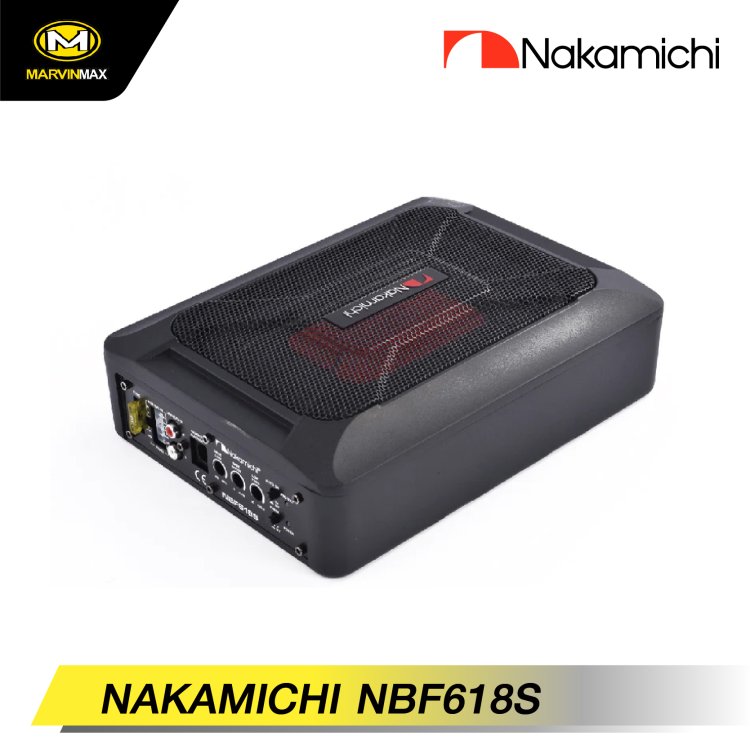

NAKAMICHI NBF618S
SPECIFICATIONS
N-Power : 100W
Peak Power : 1000W
Distortion(THD) : <0.4%
Signal To Noise Ratio : >90dB
Frequency Response : 20Hz -150Hz
Input Sensitivity,High Level : 1.0V
Input Sensitivity,Low Level : 300mV
Low Pass Flter : 50Hz - 150Hz
Bass Boost : 0dB + 12dB
Subsonic Filter : 20Hz(Fixed)
Fuse Rating : 20A
Subwoofer : 6×8 inch,4ohm
Unit Dimension (LxWxH) : 260x195x72mm

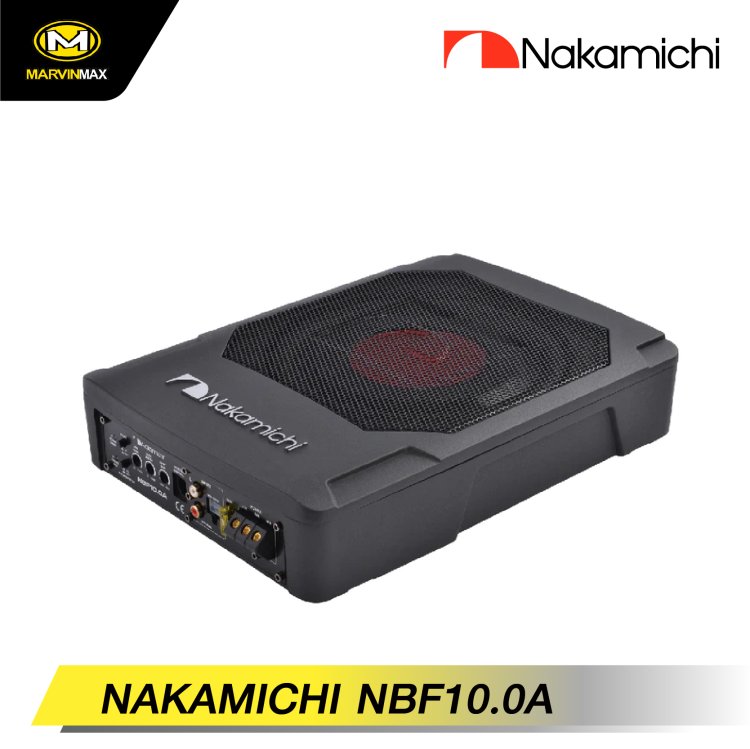

NAKAMICHI NBF10.0A

SPECIFICATIONS
N-Power : 150W
Peak Power : 1500W
Distortion (THD) : <0.2%
Signal To Noise Ratio : >90dB
Frequency Response : 20Hz -150Hz
Input Sensitivity,High Level : 0.5V
Input Sensitivity,Low Level : 110mV
Low Pass Flter : 50Hz - 150Hz
Bass Boost : 0dB + 12dB
Fuse Rating : 20A
Subwoofer : 10 inch, 2ohm
Unit Dimension (LxWxH) : 345x245x70mm

Passive Subwoofers

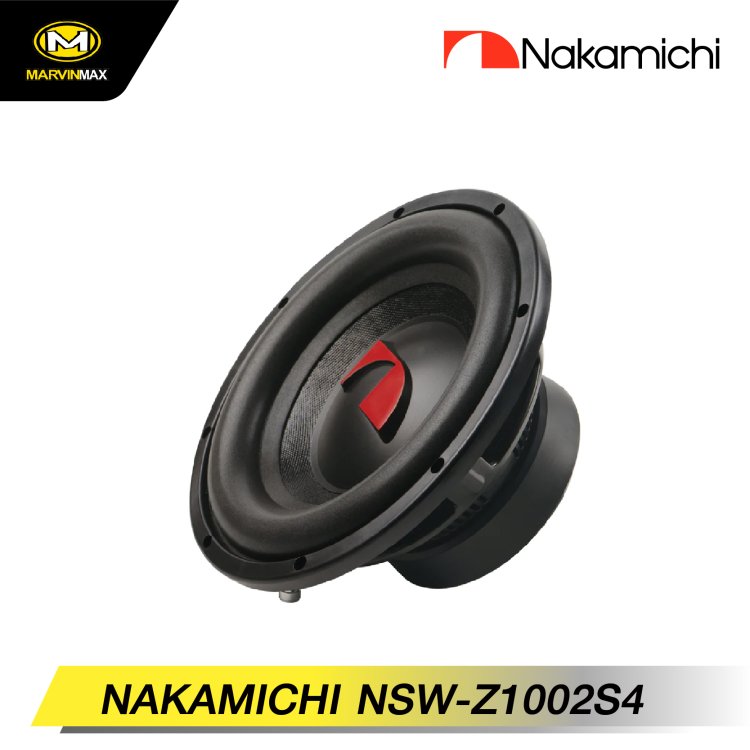

NAKAMICHI NSW-Z1002S4

SPECIFICATIONS
Woofer : 10”(254mm)
N-Power : 250W
Peak Power : 1500W
Impedance : 4Ω
Frequency Range : 30-1k Hz
Sensitivity (1 W /1 m) : 82±3dB
QMS : 5.067
QTS : 0.789
QES : 0.934
Net Weight : Approx. 3.3kg

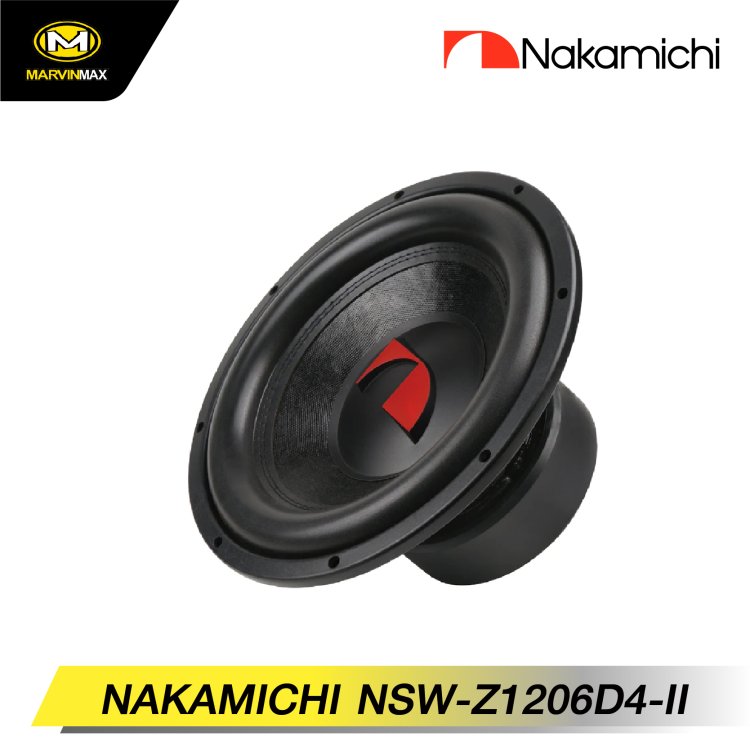

NAKAMICHI NSW-Z1206D4-II

SPECIFICATIONS
Woofer : 12'' (305mm)
N-Power : 600W
Peak Power : 4000W
Impedance : 4Ω + 4Ω
Frequency Response : 30-1kHz
Sensitivity(SPL/1W/1m) : 82 ± 3dB
QMS : 3.333
QTS : 1.391
QES : 2.386

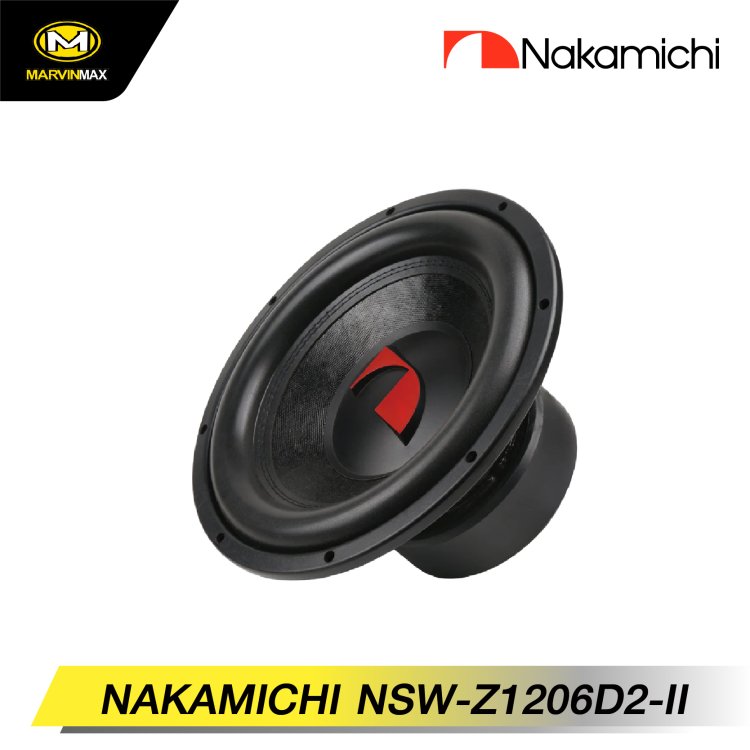

NAKAMICHI NSW-Z1206D2-II

SPECIFICATIONS
Woofer : 12''(305mm)
N-Power : 600W
Peak Power : 4000W
Impedance : 2Ω
Frequency Response : 30-1kHz
Sensitivity(SPL/1W/1m) : 82 ± 3dB
QMS : 2.267
QTS : 1.038
QES : 1.715

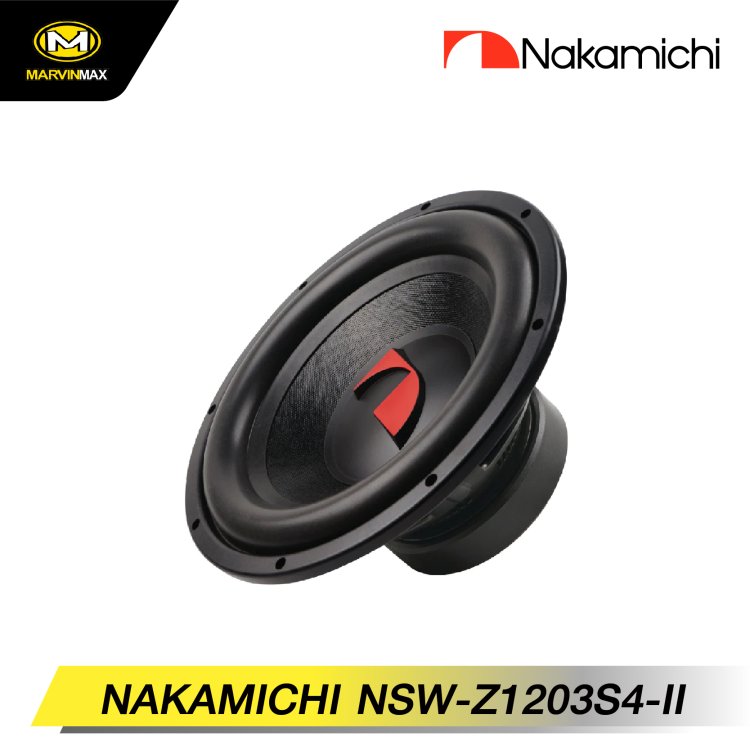

NAKAMICHI NSW-Z1203S4-II

SPECIFICATIONS
Woofer : 12'' (305mm)
N-Power : 300W
Peak Power : 2000W
Impedance : 4Ω
Frequency Response : 30-1kHz
Sensitivity (SPL/1W/1m) : 82 ± 3dB
QMS : 3.264
QTS : 0.846
QES : 1.143

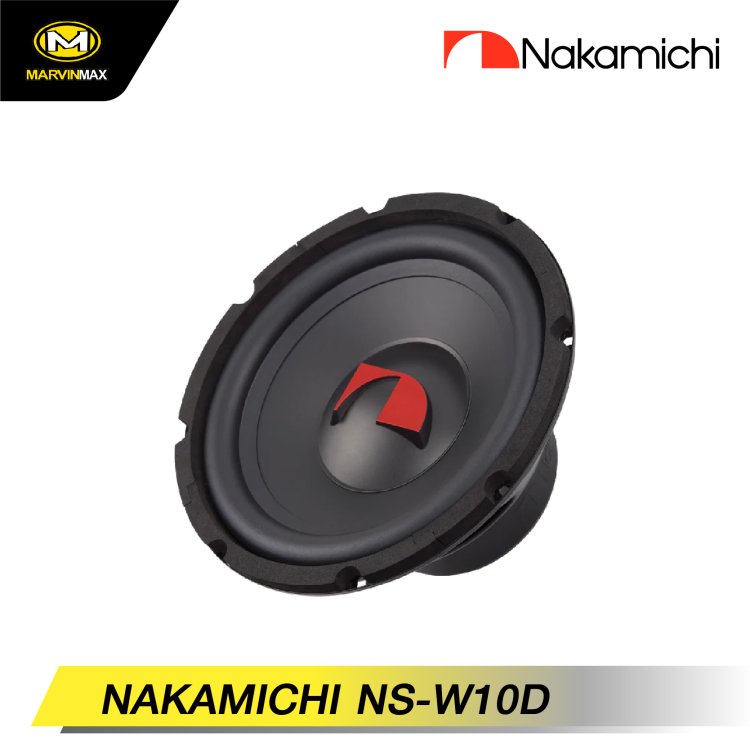

NAKAMICHI NS-W10D

SPECIFICATIONS
Type ：10” Dual 4ohm subwoofer
Size : 10” (254mm)
Peak Power : 650W
N-Power : 100W
Frequency Response : 40Hz-3.8kHz
Sensitivity (SPL / 1W /1 m) : 86±3dB
Free Air Resonance : 65Hz
Nominal Impedance : 4Ω+4Ω
Mounting Depth : 4.53"(115mm)
Voice Coil : Φ35.55mm, ASV
Magnet Mass : 28.2Oz (800g)
Net Weight : Approx.2.4kg

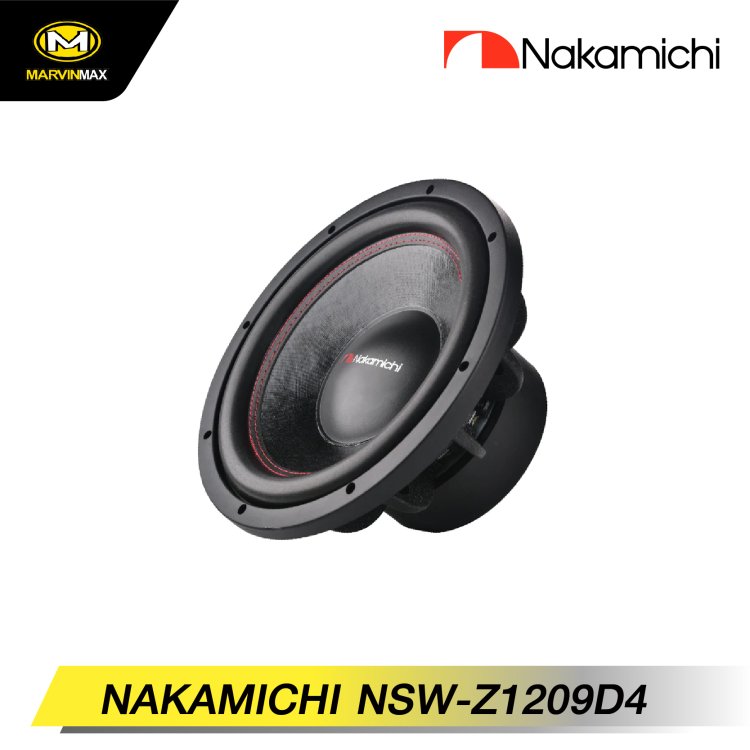

NAKAMICHI NSW-Z1209D4

SPECIFICATIONS
Type : Passive Subwoofers
Size : 12'' (305mm)
Peak power : 6000W
N-power : 900W
Frequency Response : 40-500Hz
Sensitivity(SPL/1W/1m) : 86±3dB
Nominal Impedance : 4Ω+4Ω
Mounting Depth : 6'' (152mm)
Voice Coil : BASVΦ75.5mm
Magnet Mass : 118.5 Oz (3359g)
Net Mass (1pc) : Approx. 8.6kg

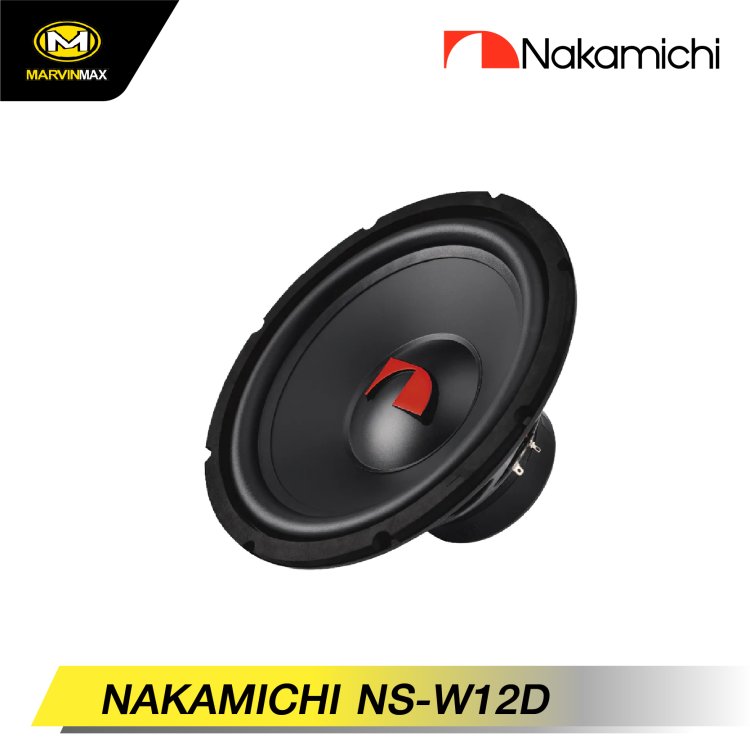

NAKAMICHI NS-W12D

SPECIFICATIONS
Woofer : 12”
N-Power : 120W
Impedance : 4+4Ω
Frequency Range : 40~1000Hz
Sensitivity : 90±3dB
Voice Coil : ASV Φ35.5
Magnet Mass : 29.2 Oz
Net Weight : Approx. 2.4kg

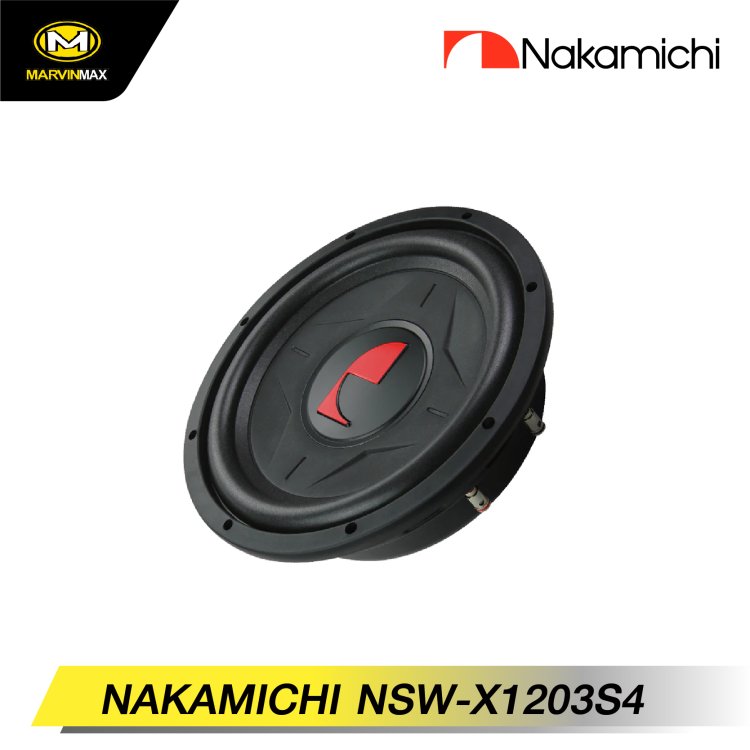

NAKAMICHI NSW-X1203S4

SPECIFICATIONS
Woofer : 12”
N-Power : 250W
Impedance : 4Ω
Frequency Range : 40~2.7k Hz
Sensitivity (1 W /1 m) : 83±3dB
QMS : 6.528
QTS : 1.050
QES : 1.251
Net Weight : Approx. 4.37kg

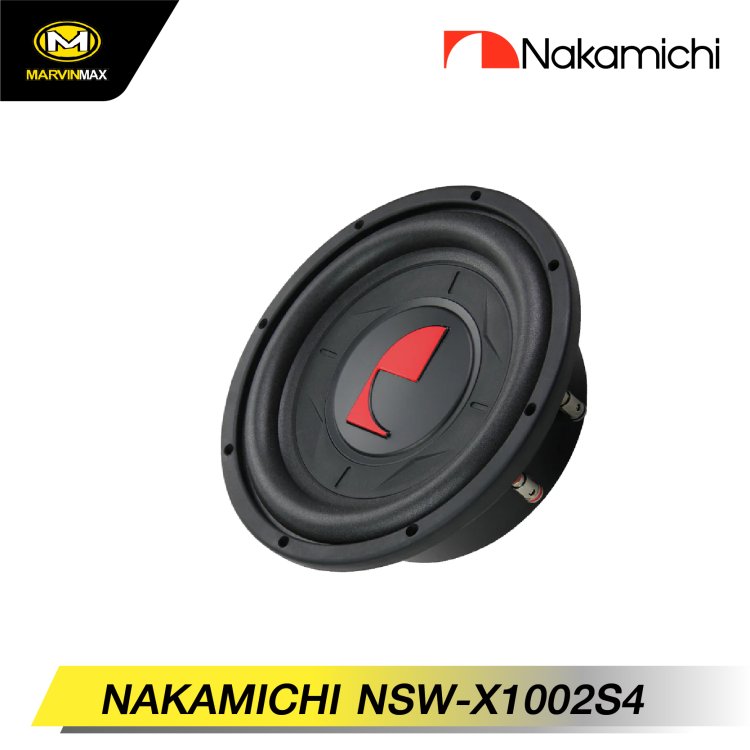

NAKAMICHI NSW-X1002S4

SPECIFICATIONS
Woofer : 10”
N-Power : 200W
Impedance : 4Ω
Frequency Range : 38~2.3k Hz
Sensitivity (1 W /1 m) : 83±3dB
QMS : 6.136
QTS : 0.768
QES : 0.878
Net Weight : Approx. 3.86kg

Active Sub Enclosures

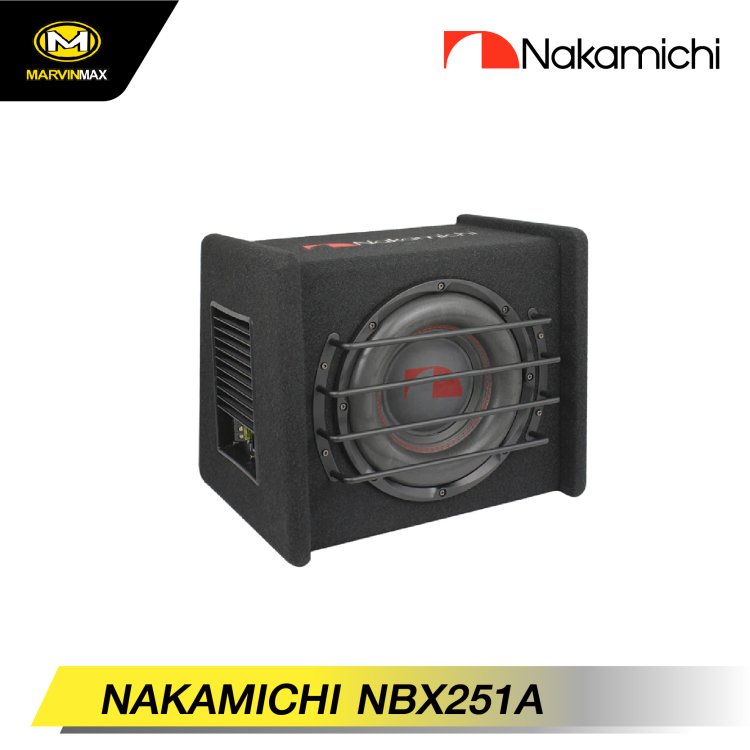

NAKAMICHI NBX251A

SPECIFICATIONS
Type : Active Subwoofer Box
Size : 10"
Peak Power : 1000 W
N-power : 150 W
Frequency Response : 40 - 160 Hz
Sensitivity(dB/W/m) : 90 ± 3dB
Impedance : 4Ω
Voice Coil : ASV φ35.5mm
Subwoofer Magnet : 120x70x20mm,Y25
Magnet Mass : 24.9Oz(706g)
Unit Dimensions : 395x270/325x335mm
Net Mass(1pc) : Approx. 10.6kg

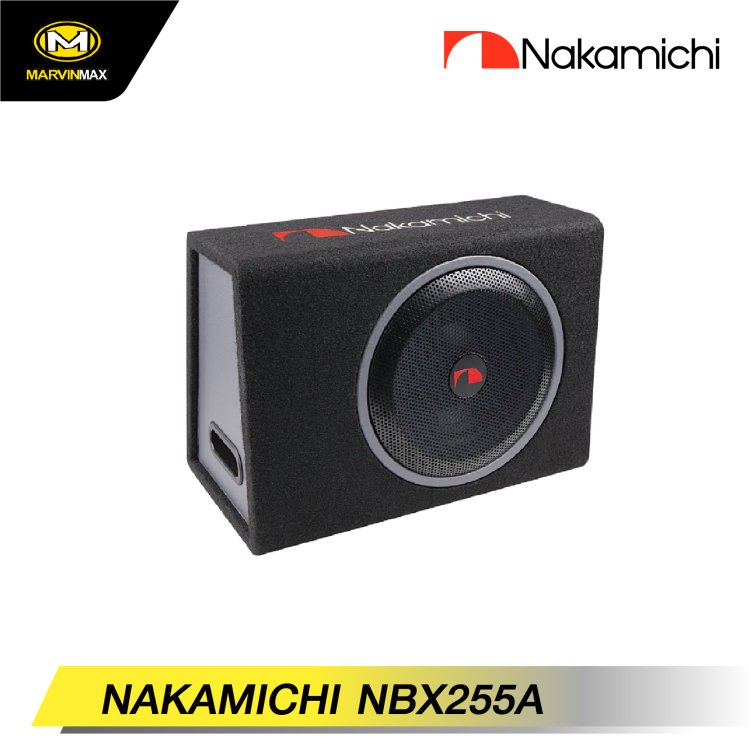

NAKAMICHI NBX255A

SPECIFICATIONS
Type : Active Subwoofer Box
Size : 10"
Peak Power : 2000 W
N-power : 300 W
Frequency Response : 40 - 150 Hz
Sensitivity(dB/W/m) : 82 ± 3dB
Impedance : 2Ω
Voice Coil : ASV φ49.5mm
Subwoofer Magnet : 135x60x20mm,Y25
Magnet Mass : 45Oz(1275g)
Unit Dimensions : 490x200/290x355mm
Net Mass(1pc) : Approx. 12.9kg

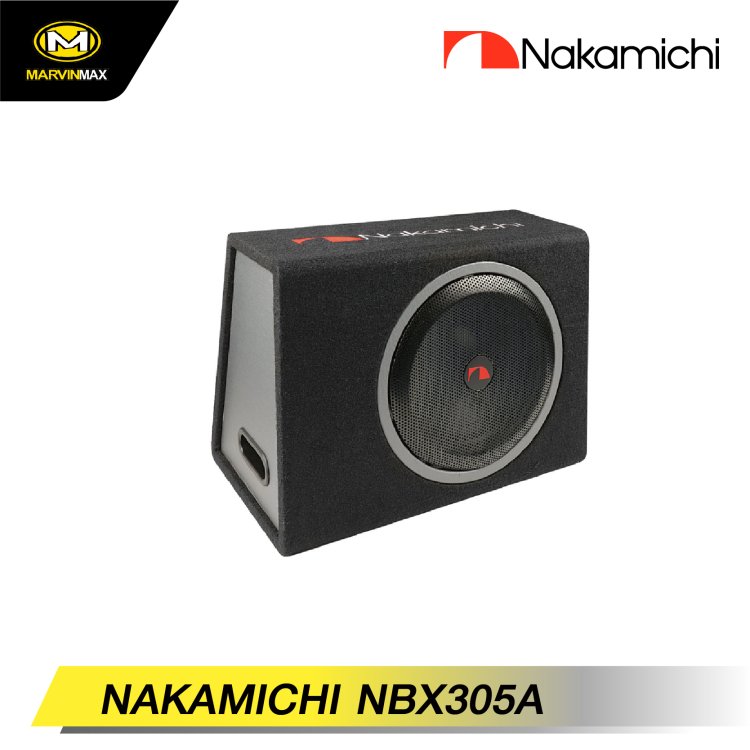

NAKAMICHI NBX305A

SPECIFICATIONS
Type : Active Subwoofer Box
Size : 12"
Peak Power : 2400 W
N-power : 350 W
Frequency Response : 40 - 150 Hz
Sensitivity(dB/W/m) : 82 ± 3dB
Impedance : 2Ω
Voice Coil : ASV φ49.5mm
Subwoofer Magnet : 135x60x20mm,Y25
Magnet Mass : 45Oz(1275g)
Unit Dimensions : 555x210/320x410mm
Net Mass(1pc) : Approx. 16.2kg

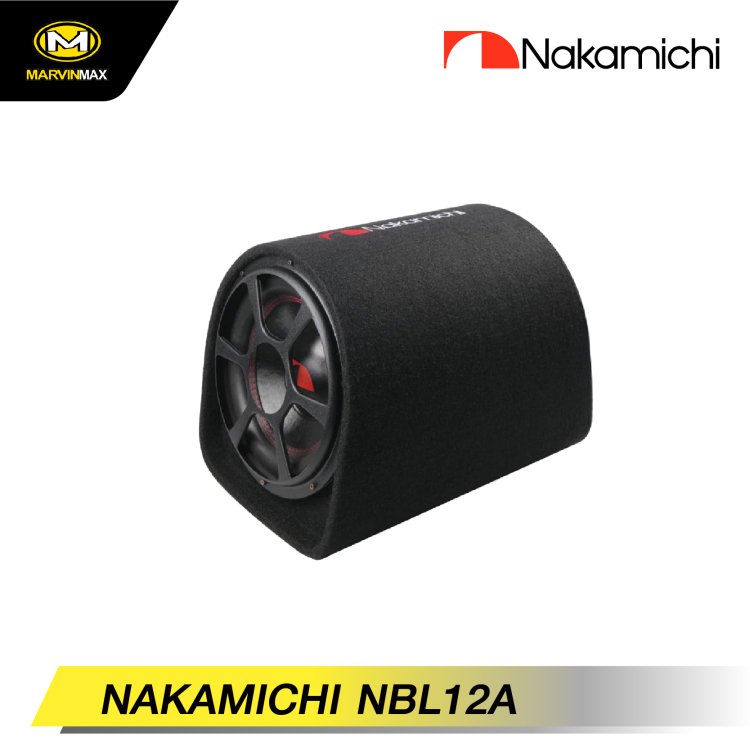

NAKAMICHI NBL12A

SPECIFICATIONS
Subwoofer : 12” Active Tunnel Tube
N-power : 120W
Peak Power : 750W
Impedance : 4Ω
Frequency Response : 20Hz-12kHz
Sensitivity (SPL/1W/1m) : 90±3dB
Subwoofer Magnet : 140x70x20mm,Y25
Magnet Mass ：38.9 Oz（1102g）
Unit Dimensions : 475/355x340x360mm
Net Mass(1pc) : Approx. 9.0kg

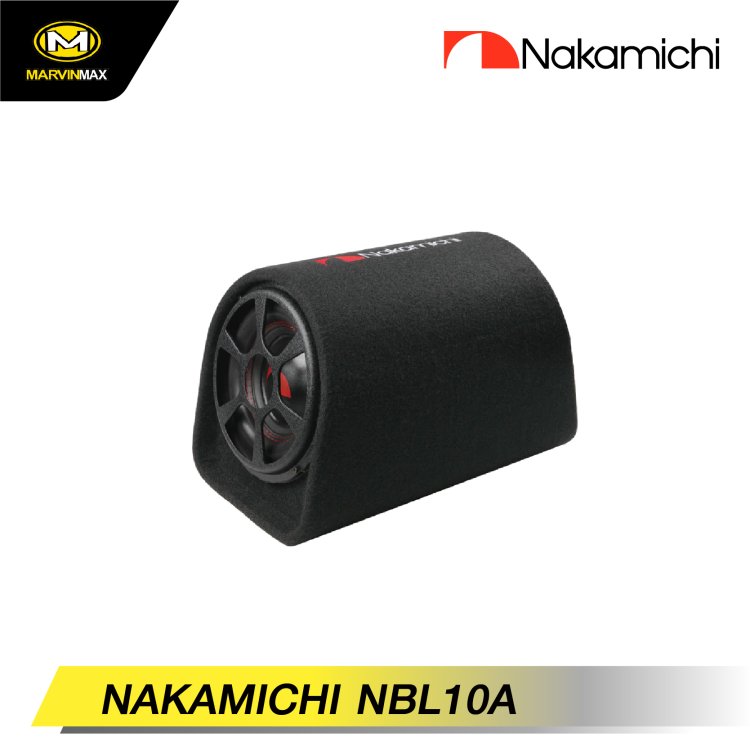

NAKAMICHI NBL10A

SPECIFICATIONS
Subwoofer : 10” Active Tunnel Tube
N-power : 120W
Peak Power : 750W
Impedance : 4Ω
Frequency Response : 20Hz-12kHz
Sensitivity (SPL/1W/1m) : 90±3dB
Subwoofer Magnet : 120x70x20mm,Y25
Magnet Mass ：24.9 Oz（706g）
Unit Dimensions : 480/360x290x315mm
Net Mass(1pc) : Approx. 6.6kg

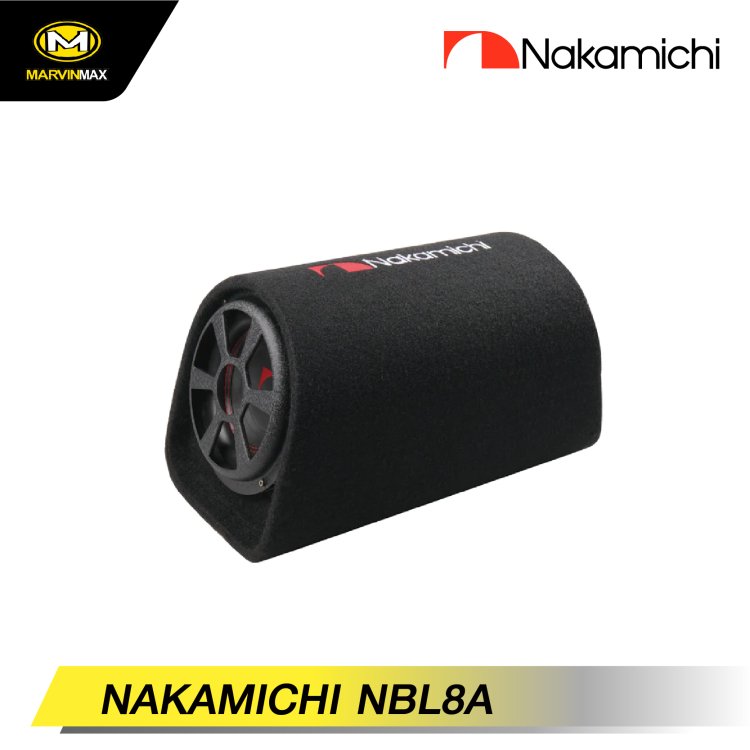

NAKAMICHI NBL8A

SPECIFICATIONS

Subwoofer : 8” Active Tunnel Tube

N-power : 100W

Peak Power : 650W

Impedance : 4Ω

Frequency Response : 20Hz-12kHz

Sensitivity (SPL/1W/1m) : 90±3dB

Subwoofer Magnet : 120x70x20mm,Y25

Magnet Mass：24.9 Oz（706g）

Unit Dimensions : 475/365x240x260mm

Net Mass(1pc) : Approx. 5.5kg

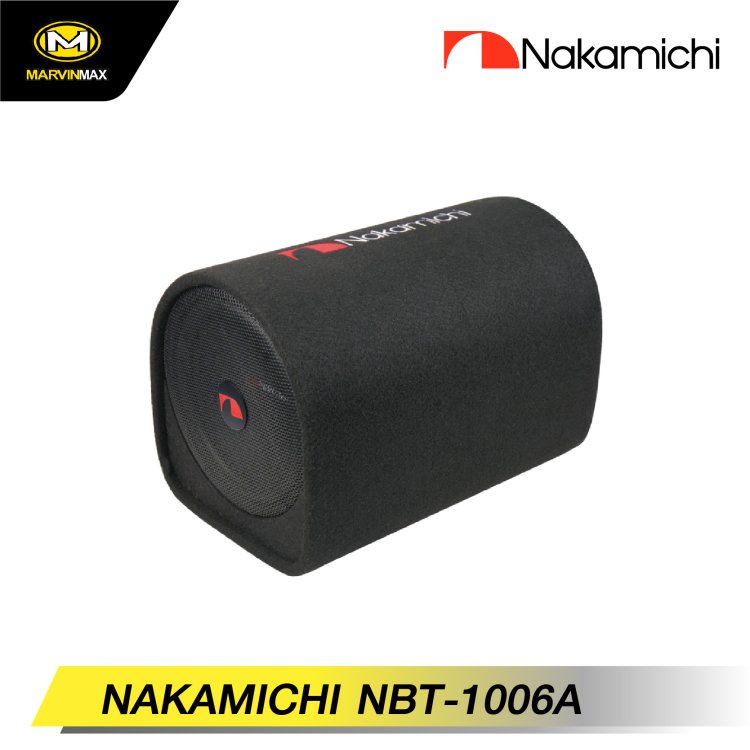

NAKAMICHI NBT-1006A

SPECIFICATIONS
Subwoofer : 10” Active Tunnel Tube
N-power : 100W
Peak Power : 650W
Impedance : 4Ω
Frequency Response : 20-200Hz
Sensitivity (SPL/1W/1m) : 90±3dB
Subwoofer Magnet : 120x60x20mm,Y30
Unit Dimensions : 455x290x310mm
Net Mass(1pc) : Approx. 6.4kg

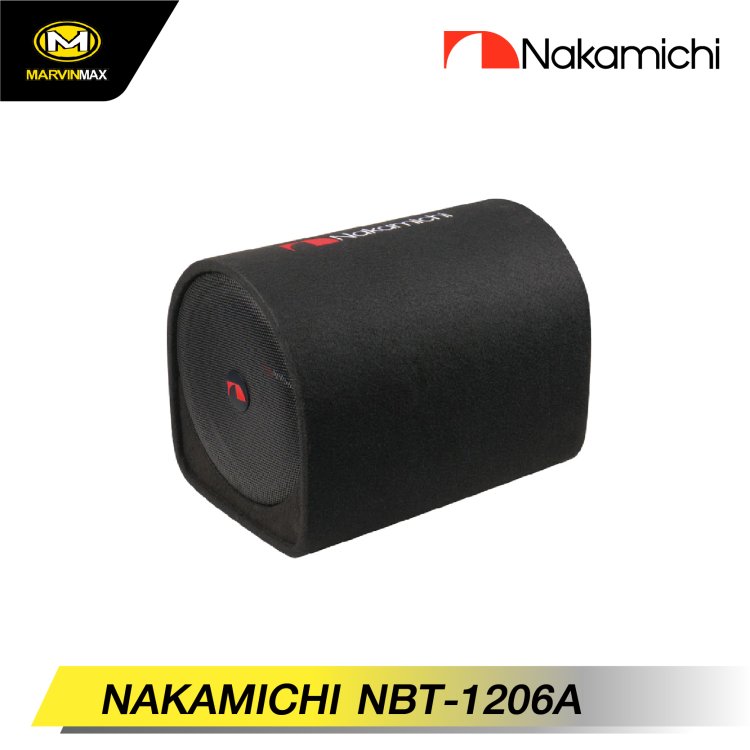

NAKAMICHI NBT-1206A

SPECIFICATIONS
Subwoofer : 12” Active Tunnel Tube
N-power : 120W
Peak Power : 750W
Impedance : 4Ω
Frequency Response : 20-200Hz
Sensitivity (SPL/1W/1m) : 90±3dB
Subwoofer Magnet : 120x60x20mm,Y30
Unit Dimensions : 480x335x357mm
Net Mass(1pc) : Approx. 8.8kg

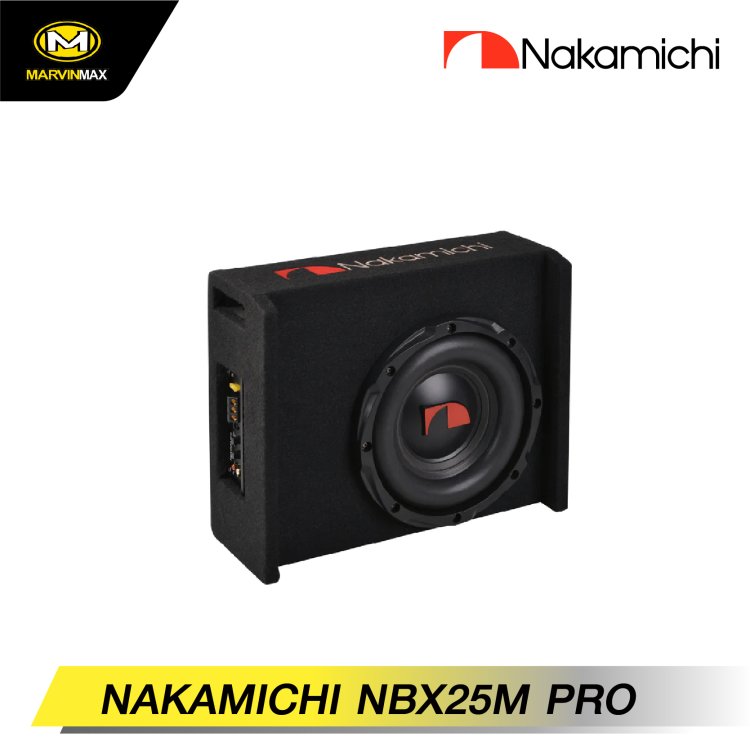

NAKAMICHI NBX25M PRO

SPECIFICATIONS
Type : Active Sub Box
Size : 10''
Peak power : 1000 W
N-power : 150 W
Frequency Response : 30-300Hz
Sensitivity(dB/W/m) : 87±3dB
Impedance : 4Ω
Subwoofer Magnet : 120 x 60 x 20mm，Y25
Voice Coil : ASVφ35.5mm
Magnet Mass : 32 Oz (907g)
Net Mass (1set) : Approx. 7.6kg

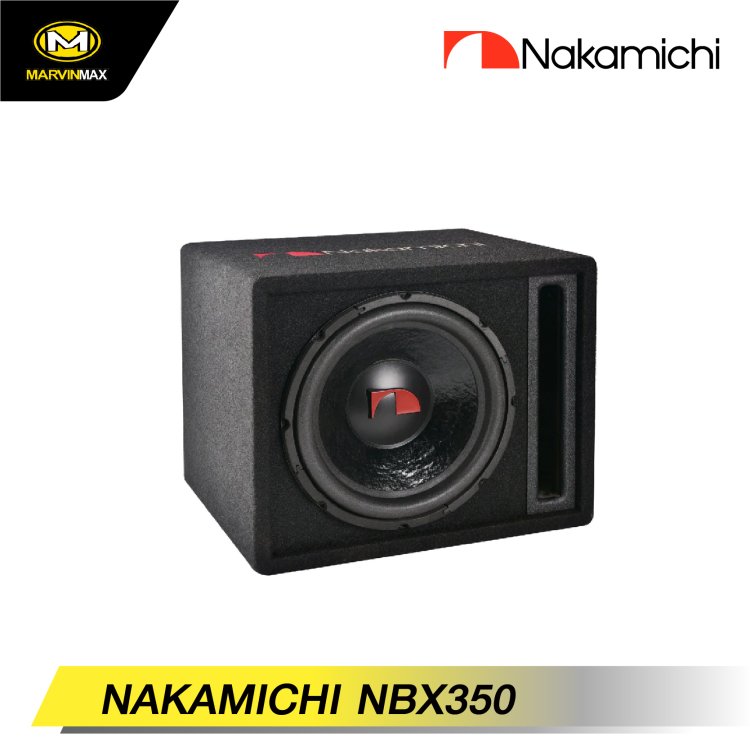

NAKAMICHI NBX350

SPECIFICATIONS
Type : Passive Subwoofer Box
Size : 12''
Peak power : 2500 W
N-power : 350 W
Frequency Response : 45-3.5k Hz
Sensitivity(dB/W/m) : 90±3dB
Impedance : 4Ω
Subwoofer Magnet : 126 x 60 x 20mm
Voice Coil : ASVΦ50.8mm
Magnet Mass : 35 Oz (992g)
Net Mass (1set) : Approx. 17.8kg

NAKAMICHI NBX20A

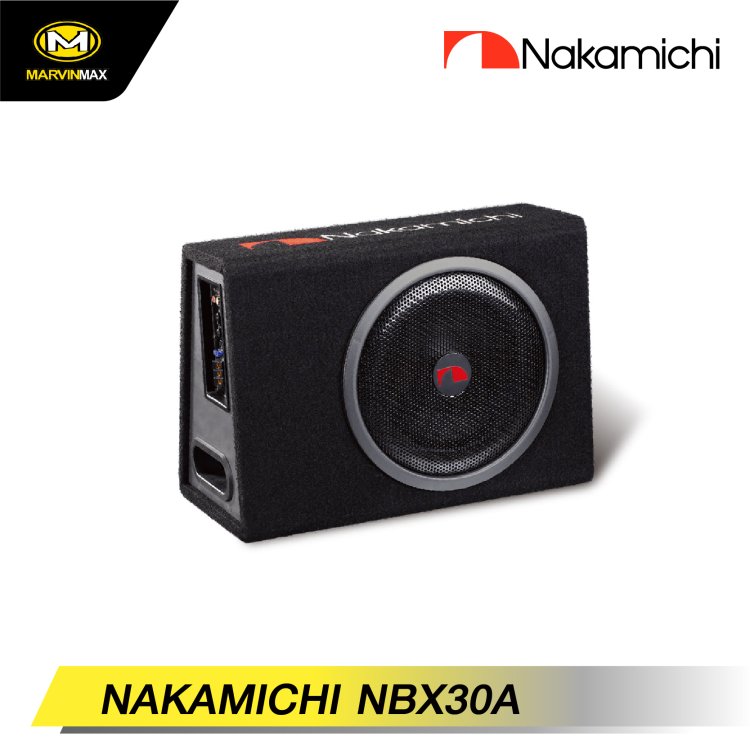

NAKAMICHI NBX30A

SPECIFICATIONS
Type : Active Sub Enclosures
Size : 12"(305mm)
Peak Power : 900 W
N-power : 150 W
Frequency Response : 40Hz-3.5kHz
Sensitivity(dB/W/m) : 90±3dB
Impedance : 4Ω
Power Requirements : 12V DC Car Battery (Negative Ground)
Power Supply Voltage Range : 14.4V (10.5V-16V)
Voice Coil : ASVΦ 49.55mm
Magnet Moss : 140x60x20mm
Unit Dimensions : 554x208/310x414mm

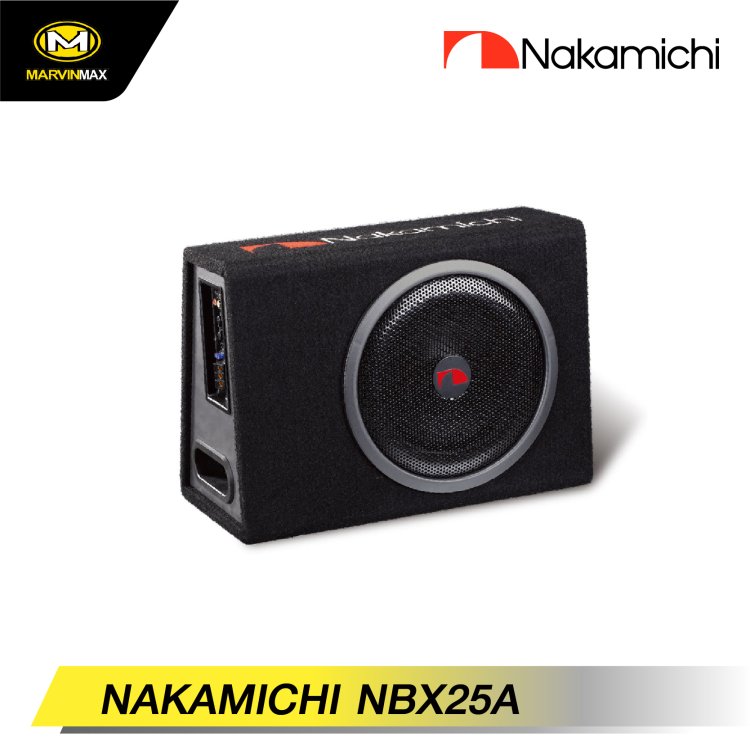

NAKAMICHI NBX25A

SPECIFICATIONS
Type : Active Sub Enclosures
Size : 10" (254mm)
Peak Power : 800 W
N-power : 130 W
Frequency Response : 38 - 3500 Hz
Sensitivity(dB/W/m) : 87 ± 3dB
Impedance : 4Ω
Power Requirements : 12V DC Car Battery (Negative Ground)
Power Supply Voltage Range : 14.4V (10.5V- 16V)
Voice Coil : ASV φ49.55mm
Magnet Mass : 126x30x25mm
Unit Dimensions : 480x170/270x350mm

NAKAMICHI NBX25M

SPECIFICATIONS
Type : Active Sub Enclosures
Size : 10''
Peak power : 1000 W
N-power : 150 W
Frequency Response : 74-300Hz
Sensitivity(dB/W/m) : 86±3dB
Impedance : 4Ω
Subwoofer Magnet : 120 x 60 x 20mm
Voice Coil : ASVφ35.5mm
Magnet Mass : 32 Oz (907g)
Net Mass (1set) : Approx. 8.2kg

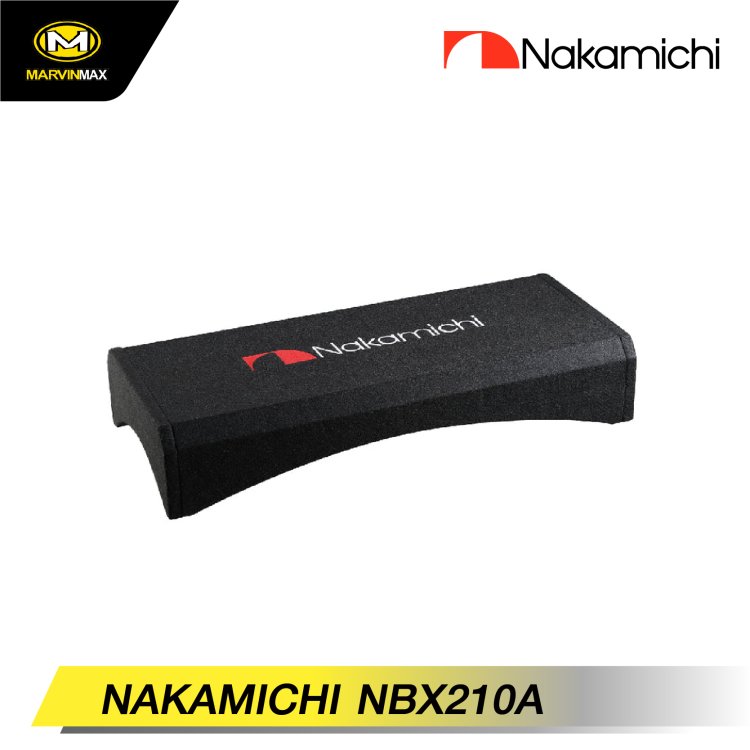

NAKAMICHI NBX210A

SPECIFICATIONS
Woofer : 10"
Power : 120W
Peak Power : 1200W
Impedance : 2 ohm
Frequency Response : 50Hz-1.3kHz
Sensitivity(SPL/1W/1m) : 83±2dB
Subwoofer Magnet : 17.6 oz
Power Supply Voltage : 14.4V(10.5V~16V)
Unit Dimensions : 820x355x150mm

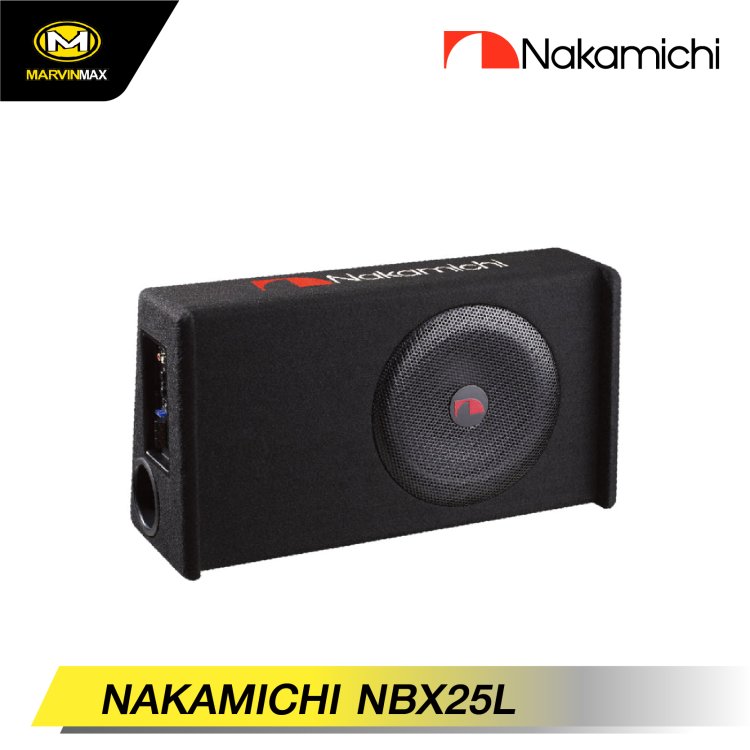

NAKAMICHI NBX25L

SPECIFICATIONS
Woofer : 10” (256mm)
N-Power : 100W
Peak Power : 1000W
Impedance : 4Ω
Frequency Response : 45-1.3kHZ
Sensitivity (dB/W/m) : 88 ±3dB
Subwoofer Magnet : 120x60x20mm
Power Requirements : 12DC Car Battery(Negative Ground)
Power Supply Voltage : 14.4V(10.5V - 16V)
Unit Dimension : 23.0”×5.7” / 8.1”×12.8” (585x145 / 205x325mm)

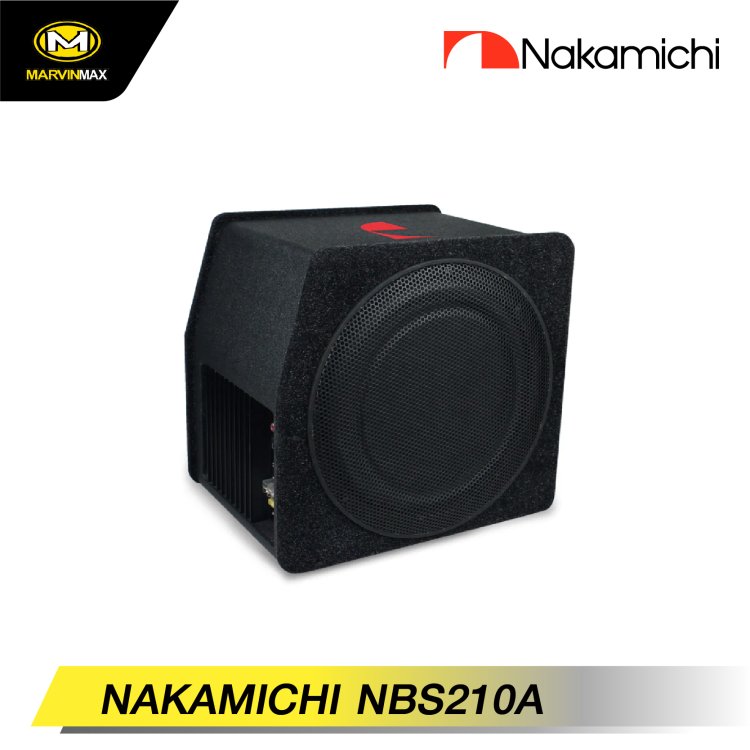

NAKAMICHI NBS210A

SPECIFICATIONS
N-Power : 100W
Peak Power : 1000W
Distortion(THD) : <0.1%
Signal To Noise Ratio : >90dB
Frequency Response : 40Hz -160Hz
Input Sensitivity : 0.5 - 280mV
Subsonic Filter : 20Hz(Fixed)
Fuse Rating : 20A
Unit Dimension : 300x275x318mm
Net Weight : Approx. 7.2kg

Marine Speakers

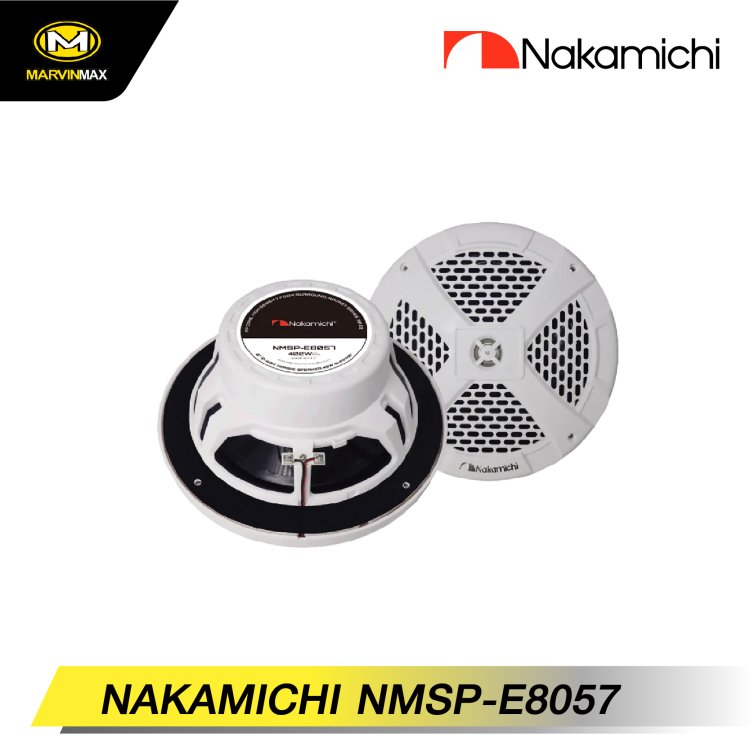

NAKAMICHI NMSP-E8057

SPECIFICATIONS
Type : 8” (20.3cm) 2-way
Mounting Depth : >7.2” (83mm)
N-Power : 40W
Max Power : 400W
Sensitivity(dB/W/m) : 91±3dB
Frequency Response : 72-20kHz
Impedance : 4Ω
Voice Coil : KSV 30.5mm
Magnet Mass : 30Oz (850g)
Net Weight (1pc) : Approx.1.9kg

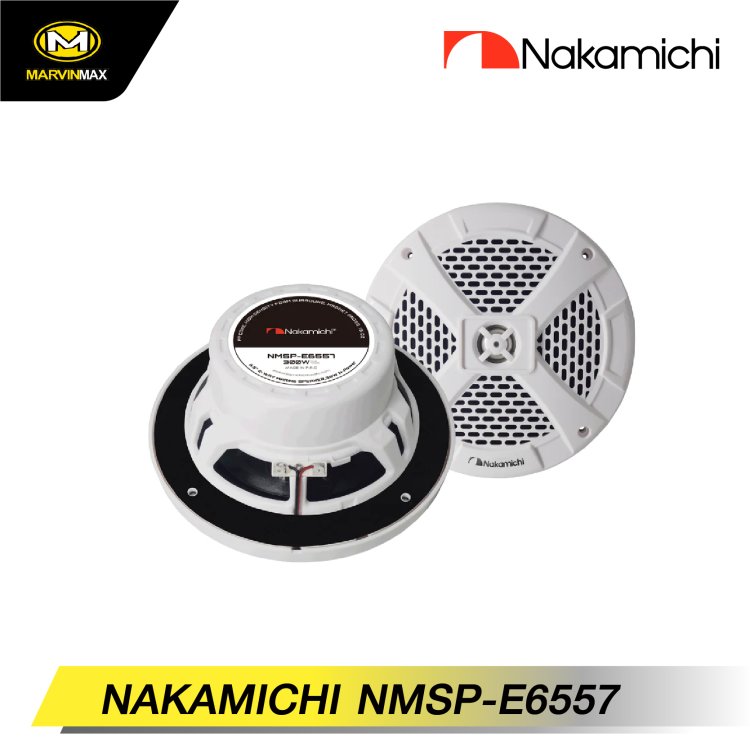

NAKAMICHI NMSP-E6557

SPECIFICATIONS
Type : 6.5” (16.5cm) 2-way
Mounting Depth : >2.45” (62mm)
N-Power : 30W
Max Power : 300W
Sensitivity(dB/W/m) : 89±3dB
Frequency Response : 85-20kHz
Impedance : 4Ω
Voice Coil : KSV 25.5mm
Magnet Mass : 15Oz (425g)
Net Weight (1pc) : Approx.0.9 kg
